Instruction manual

With the power off, hold down the NAV (CAL) and TACK
keys and switch on the power. The Port or Starboard LED will
illuminate, depending on the current mounting configuration.
Press the Port ( ) key to select Port-side mounting – the Port
LED will illuminate to indicate selection. Confirm selection
and exit to Standby mode by pressing NAV (CAL) (Fig 4.2).
To select Starboard mounting, repeat the above procedure, but
press the Starboard ( ) key.
4.2 Calibration mode
The Gain and Seastate settings can be adjusted while the Tiller-
pilot is in either Standby or Autopilot mode:
• Press and hold the TACK key, then press NAV (CAL) (Fig
4.3).
• The Starboard LED will illuminate to indicate that Gain
adjustment is selected. To toggle between Gain and Seastate
adjustment, press TACK – the Port LED will illuminate for
Seastate.
STBY
NAV
TACK
STBY
AUTO
Fig 4.3 - Entering
Calibration mode
Tillerpilots TP10/TP22/TP32
14
E04586 Issue 2.0
Fig 4.2 - Configuring
for Porthand mounting
POWER
4 CONFIGURATION
4.1 Porthand mounting
Although the Tillerpilot is factory preset for Starboard-side
mounting, it is possible to reconfigure it for mounting on the
Port-side of the cockpit to facilitate easy installation on most
types of yacht (Fig 4.1).
NAV
STBY
TACK
STBY
AUTO

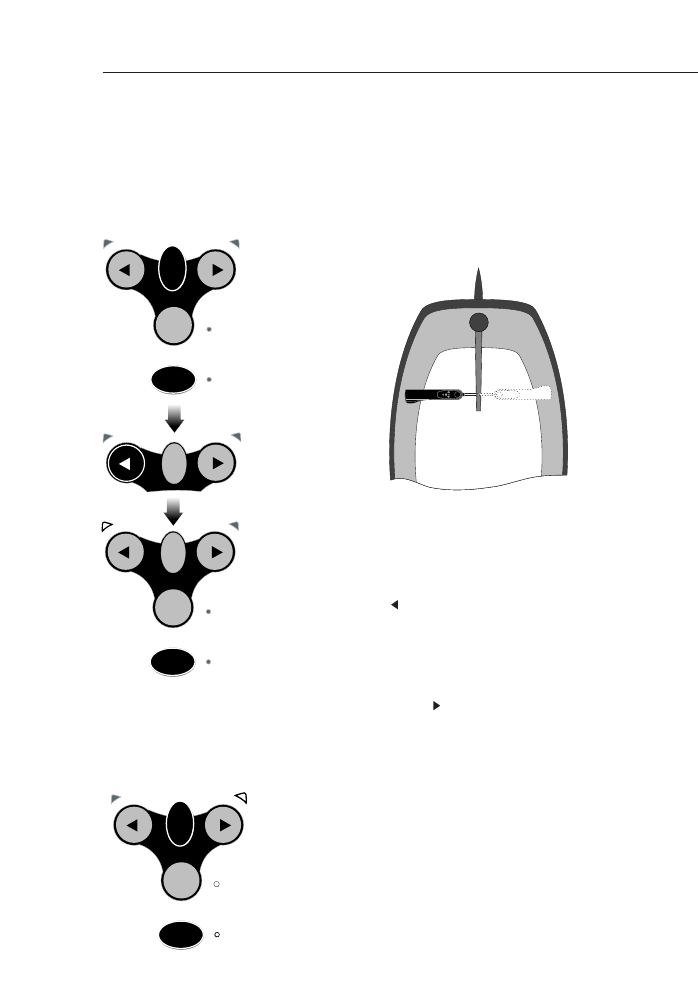

Fig 4.1 - Starboard and Port mounting options
TACK
NAV
STBY
NAV
TACK
STBY
AUTO
TACK
NAV
TACK
STBY
NAV
TACK
STBY
AUTO
NAV
ON
