SimradSH90
’Train’eld
Theaudiochannelisdisplayedasacontinuouswhiteline.It
canbetrainedeithermanuallyorautomatically.Thebearing
angleisdisplayedintheupperright-handcornerofthedisplay,
indicatedrelativetothebow.

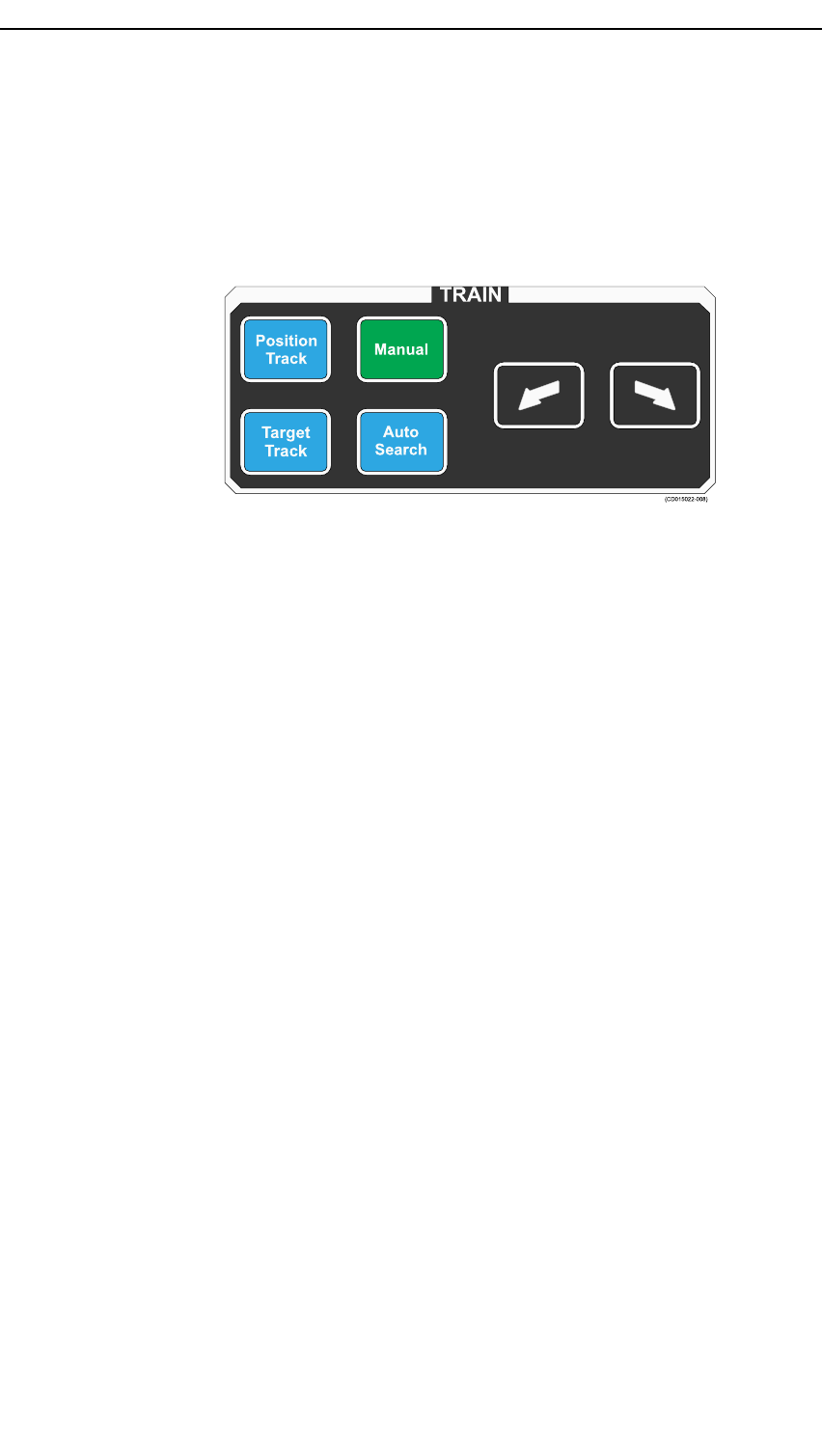

(CD015022-008)
TRAIN
Target
Track
Position
Track
Manual
Auto
Search
Manual
IntheManualmodetheTrainleftandTrainright(arrow)buttons
areusedtodirecttheaudiolinetothedesiredbearing.
Autosearch
IntheAutosearchmodethesonarwillautomaticallysearch
withinpreviouslydenedsectorlimitswiththeselectedaudio
linedesignatingthecentreofthesearch.Thesearchsectoris
displayedonthebearingcardwithtwowhiteangularsymbols.
•ThesearchsectorisadjustedbypressingandholdingtheAuto
SearchbuttonandsimultaneouslypressingtheTrainleftor
Trainright(arrow)buttons.
•TheAutosearchfunctionisoverriddenwheneithertheTrain
leftorTrainright(arrow)buttonsarepressedandwillcontinue
oncethebuttonisreleased.Thepresentbearingatthemoment
eitherbuttonisreleasedwillbecomethecentreofthesearch.
Positiontrack
ThePositiontrackfunctionisonlyavailablewhenbothacourse
gyroandaspeedlogareinterfacedtothesonarsystem.Totrack
axedposition,placethecursoroverthedesiredlocationand
pressthePositionTrackbutton.Ageographicallyxedcircle
willappearonthedisplay,anditspositionwillautomaticallybe
trackedbythesystemwithrespecttothebearingandtiltangle.
WhentheAutotiltfunctionisactivatedinthePositiontrack
modethetiltsearchcentreisautomaticallyadjustedwithregard
tothedistancetothetrackedposition.
