SimradSH90
isdisplayintheVerticalmenu.Youcanselectfrom51values
numberedfrom0to50,andthesemaybechangedinstepsof1
dB.

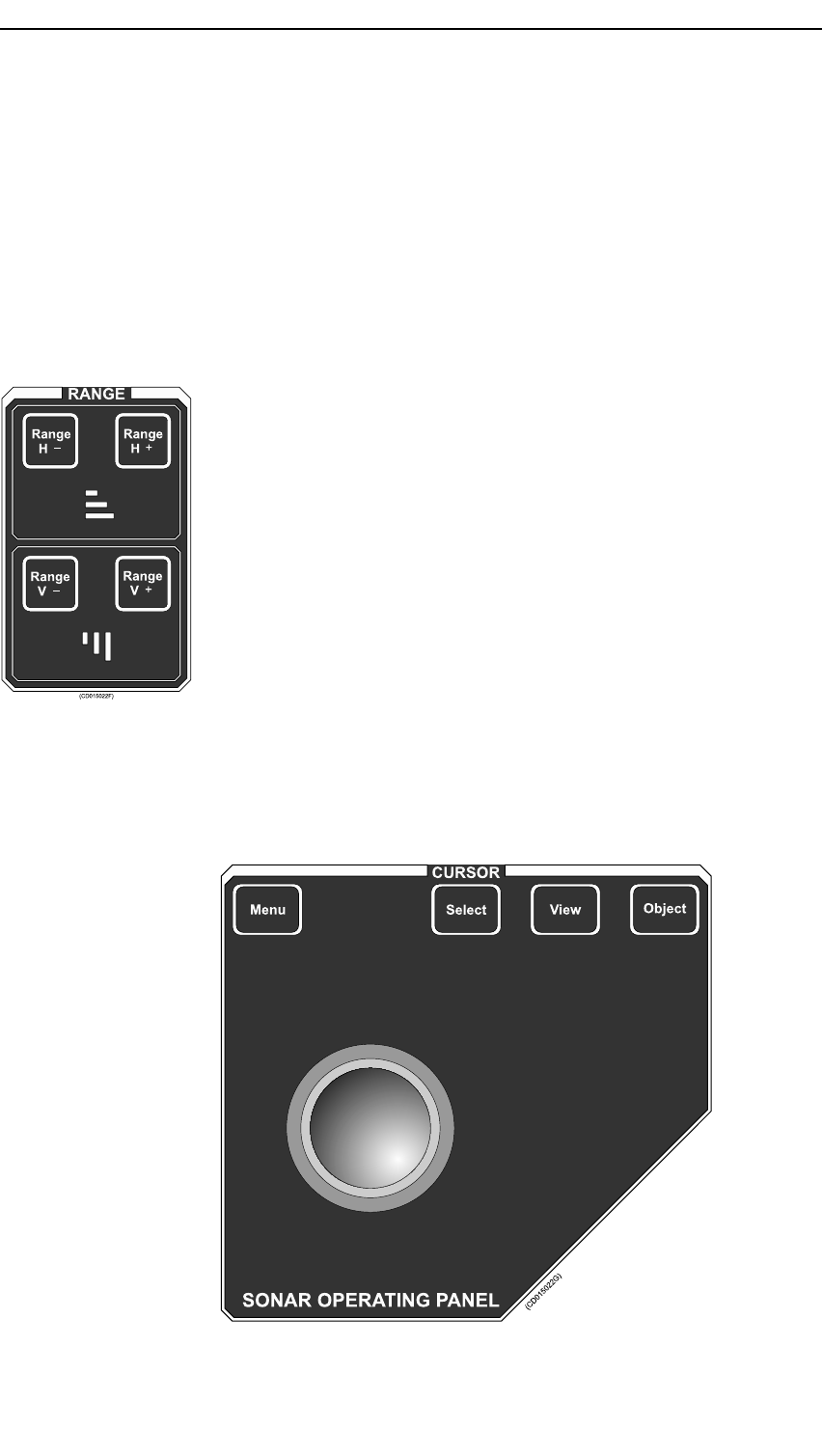

’Range’eld
Rangecontrolsarespeciedaseitherhorizontalorvertical.
RANGE
(CD015022F)
_
Range
H
+
Range
H
+
Range
V
_
Range
V
Horizontalrange
ThetwoupperRangebuttonscontrolthehorizontalrange.The
rangeselectedisdisplayedintheHorizontalmenu,andontopof
thetiltindicatorintheupperleftcornerofthedisplay.
Verticalrange
ThetwolowerRangebuttonscontroltheverticalrange.The
rangeselectedisdisplayedintheVerticalmenu.
’Cursor’eld
TheCursoreldisusedforon-screencursororientationand
menuoperation.
CURSOR
SONAROPERA TINGPANEL
Menu
Select
View
Object
(CD015022G)
86
323775/B
