OperatingPanel

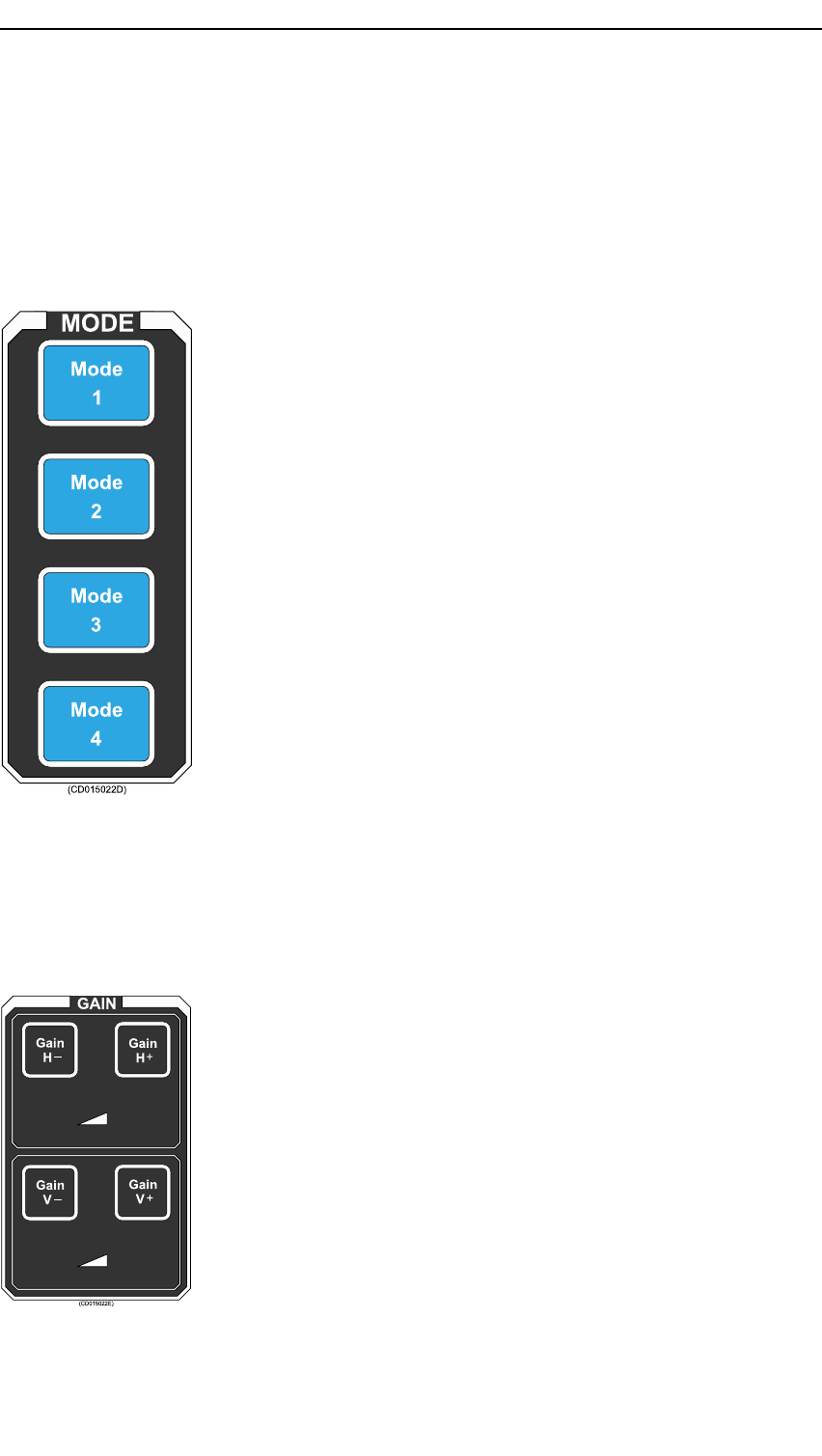

’Mode’eld
ThefourModebuttonscanbeusedtoselecteitherthefour
favouritedisplaymodesorusersettings.Thesetupthebuttons
tochoosemodesorsettings,selectModeButtonsintheDisplay
menu.
MODE
(CD015022D)
1
Mode
Mode
2
Mode
3
Mode
4
DependingontheselectionyoumakeintheModeButtons
parameterdialog,youhavetwooptions:youcanselectamode
orausersetting.
Selectmode
Toselectamode,clicktheModebuttononthetopofthedisplay
menu,orpressoneofthefourModebuttons.Frequentlyused
operationalmodesthataretaskspecictoparticularphasesof
theshingoperationcanbedenedintheSortmodesmenu.For
example,Mode1maybeusedforthesearchphase,Mode2for
theevaluationphase,Mode3forthecatchphase,andMode4
fordualoperation.
Selectuser
Toselectausersetting,youclickUserSettingsontheSetupmenu,
oruseoneofthefourModebuttonsontheOperatingPanel.The
differentusersettingsarecreatedandmaintainedintheUser
Settingparameterdialog.Tochooseusersettingassignmentto
thefourbuttons,sortthelistofusersalphabetically.
’Gain’eld
Gaincontrolsarespeciedaseitherhorizontalorvertical.
GAIN
(CD015022E)
_
Gain
H
+
Gain
H
_
+
Gain
V
Gain
V
Horizontalgain
ThetwoupperGainbuttonscontrolreceivergaineffectingthe
horizontalpresentationofthesonar.Thelevelofgainselected
isdisplayintheHorizontalmenuandontopofthetiltindicator
intheupperleft-handsideofthedisplay.Y oucanselectfrom
51valuesnumberedfrom0to50,andthesemaybechangedin
stepsof1dB.
Verticalgain
ThetwolowerGainbuttonscontrolreceivergaineffectingthe
verticalpresentationofthesonar.Thelevelofgainselected
323775/B
85
