SimradSH90
270°/Vertical
The270°/Verticalmodeisspeciallydesignedforpurseseining.
Theverticalhalfsliceisdisplayedinthelowerleftcornerfor
normalsettingwiththenetonthestarboardside.Ifthenetisset
ontheportside,the60degreesverticalslicewillbedisplayed
inthelowerrighthandcorner.Withthispresentation,itiseasy
tokeepthebestcontactwithaschoolinboththeverticaland
horizontalpresentation,andtodetermineitssizedistribution.
Thepositionoftheschoolrelativetothebottomisanother
importantinformationprovidedbythispresentation.TheCatch
datapresentationforpurseseiningisshownontherighthand
side.Itshowsallthenetdatarelativetothetargetandthebottom,
aswellasallavailabletargetdata.

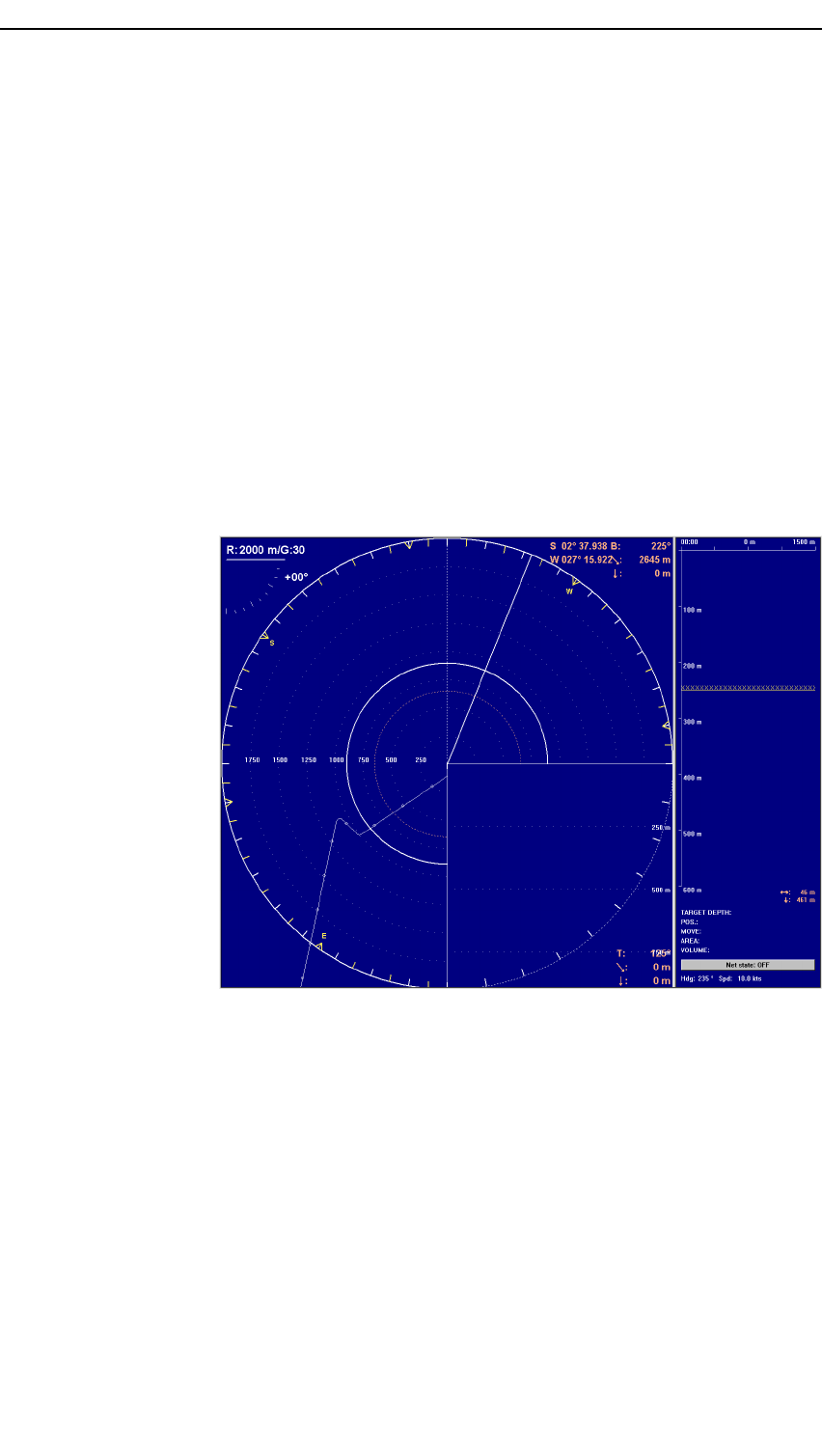

Figure30’270°/Vertical’displaymode
80
323775/B
