Displaymodes
Bowup/DualVertical
WhenBowup/Dualverticalmodeisselected,theupperpart
ofthescreenshowsacurtailedbow-uppresentation,whilethe
lowerpartshowstwoverticalslicepresentations.Thebearing
oftheleftverticalpresentationisindicatedbythewhiteaudio
lineinthehorizontalpresentation,whilethebearingoftheright
verticalpresentationisindicatedbytheyellow-dashedline.
Allbordersbetweenthedifferentviewsmaybemovedtoany
positionbyusingthetrackball.

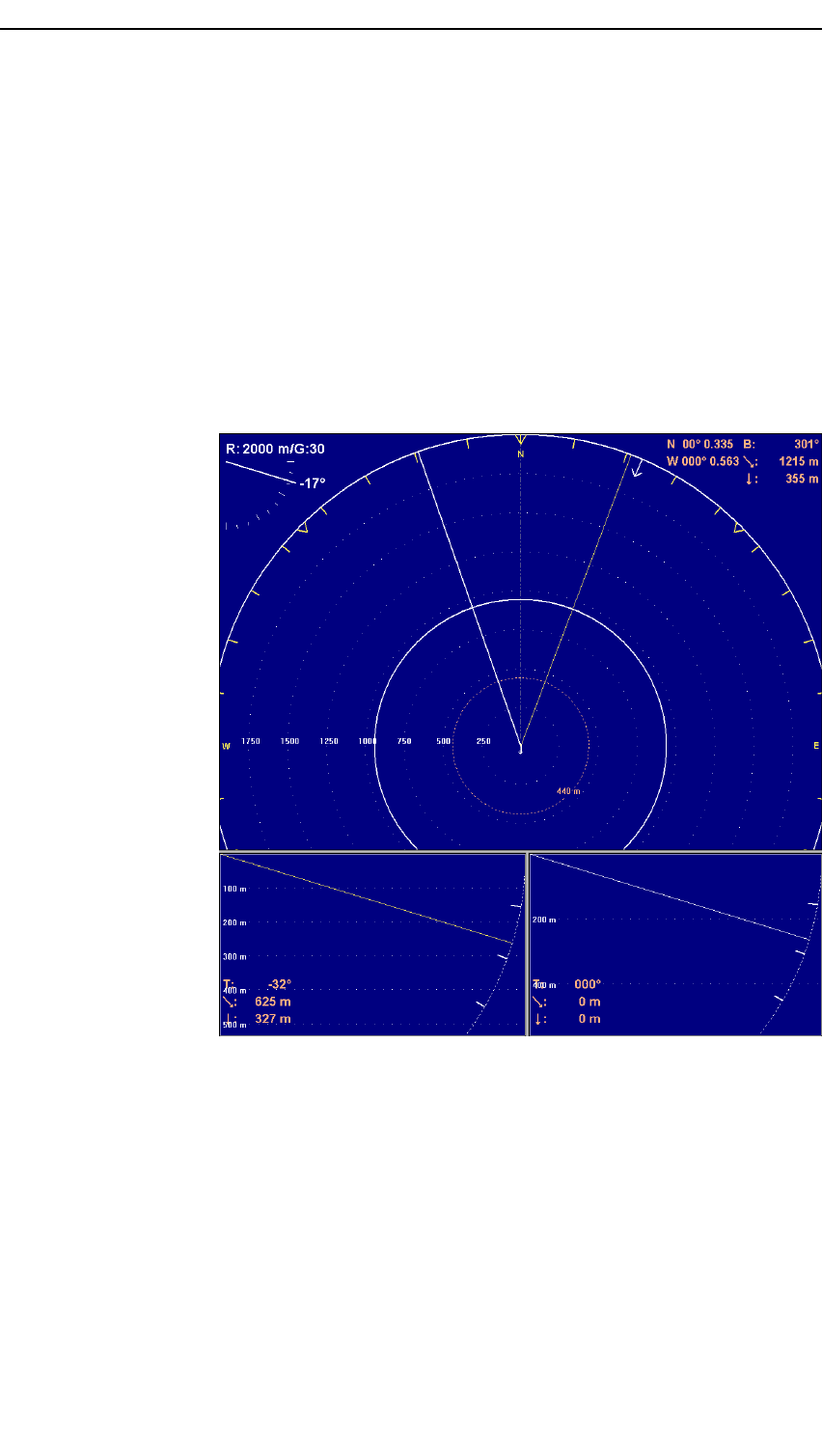

Figure23’Bowup/Dualvertical’displaymode
Thismodeismainlyintendedforpurseseining,wheretheaudio
line(Vertical1)cantrackthetarget,whileintheV ertical2slice
canbeusedtosearchmanuallyaroundatrackedtarget.The
Catchdatapresentationcanbeselectedinthemenueld.Inthis
presentation,thegearpositionisshowninrelationtoasynthetic
presentationofatrackedschool.Inaddition,allavailabletarget
dataareshown.
