Operationalprocedures
4Observethattheinstallationmenubarisshownonthetop
ofthescreen.

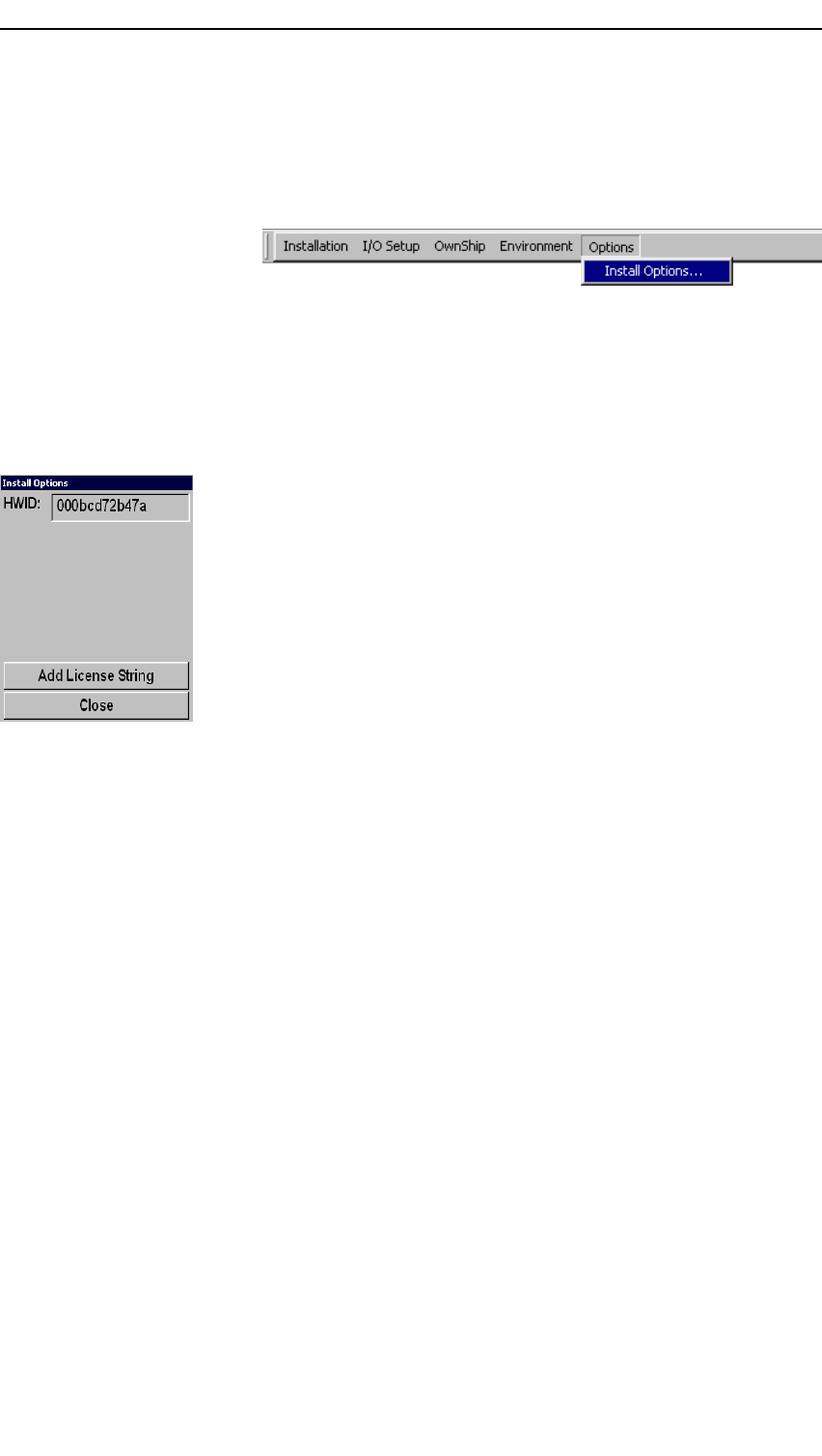

5ClickOptions→Installoptions.
6ObservethattheInstallOptionsparameterdialogopens.
’InstallOptions’parameterdialog
ThefollowingparametersareavailableintheInstalloptions
parameterdialog.
•HWID:Thiselddisplaystheunique12-characterhardware
identicationcode.ThiscodeisdifferentforeachSH90sonar.
Simradusesthiscodetogeneratethe32-charactercodeword
usedforapermanentoptioninstallation.
•AddLicenseString:Thisbuttonisusedforpermanent
installationofthechosenoption.Whenyoupressthebutton,
thiswillactivatetheon-screenkeyboardusedtotypethe
required32-charactercodeword.
Addingoptionalfunctionality
Toaddanoptionpermanently
1Obtaintheoptioncodeasfollows:
1OpentheInstallOptionsparameterdialog,andwrite
downtheHWIDnumber.
2SendtheHWIDnumbertoyourdealer.Makessurethat
youwritedownthecharacterstringcorrectly!
3Usethesonarwithouttheoptionuntilyourdealer
approachesyouwithacodeword.
2OpentheInstallOptionsparameterdialog,andclicktheAdd
LicenseStringnumber.
3Placethecursorinthetexteld.
4Typethecodewordontheon-screenkeyboard.
5Checkthatthe32charactersareenteredcorrectlyintothe
texteld.
6ClicktheApplyLicenseStringbutton.
7Exittheparameterdialog,andrestartthesonar.
8Checkthattheoptionisavailableforuse.
