Operationalprocedures
4ClicktheMovedownorMoveupbuttontomovethechosen
operationalmodedownorupthelist.
5Whenthelisthasbeenarrangedintheorderyouwishto
keep,clickApply.
Thecurrentorderissavedautomatically.
6ClickClosetoexit.
Markersandsymbolsprocedures
Thissectionexplainshowtoadd,investigateanddeletesymbols
andmarkersontheSH90sonarpresentation.
Howtoadd’Target’and’Circle’markers
1Movethecursoronthesonarpicture,andpositionit
whereveryouwishtoplacethemarker.
2PresstherequestedmarkerbuttonintheSymboleldonthe
OperatingPaneltoplacethemarker.

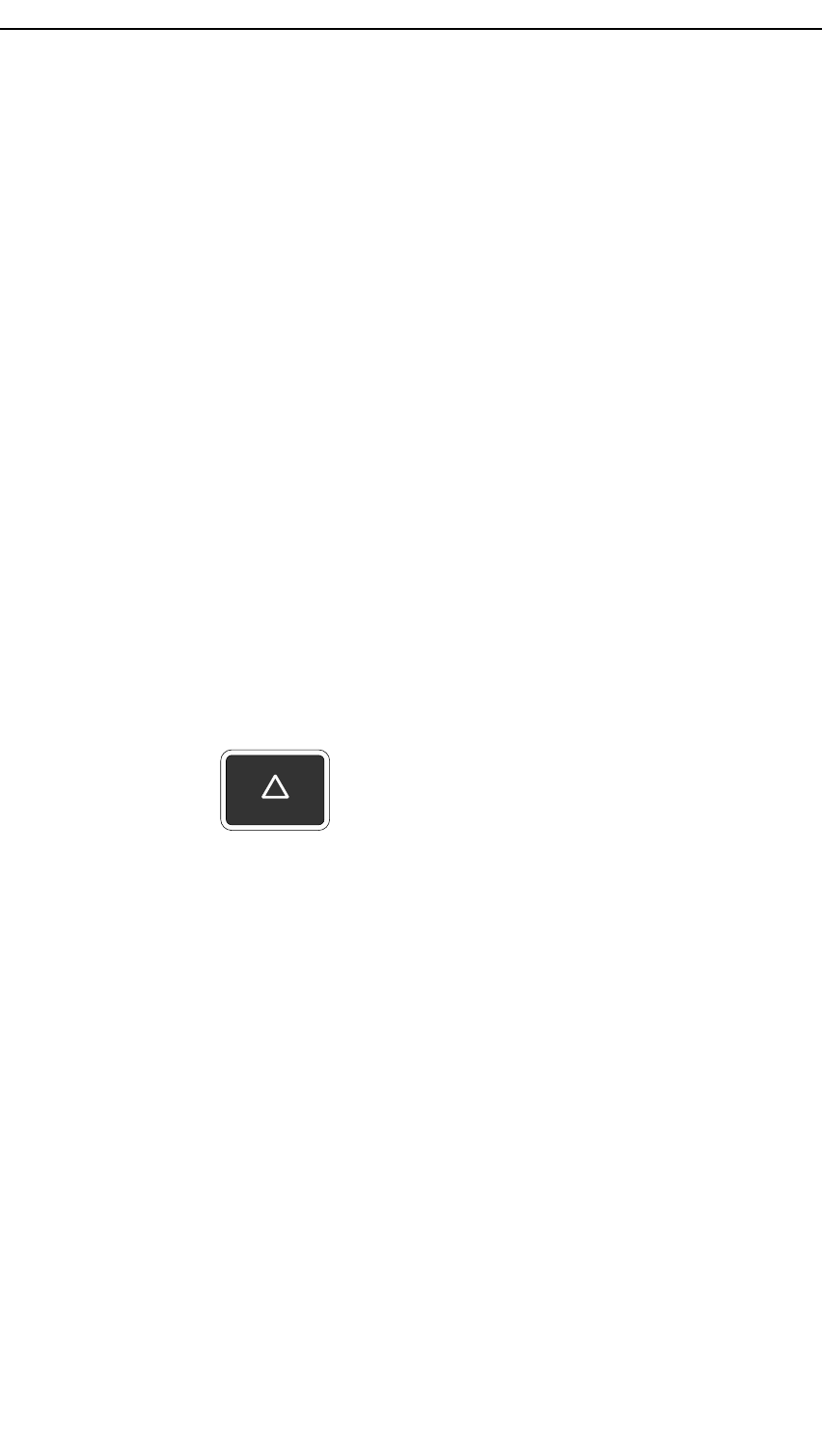

AboutTargetmarkers
ThisbuttonplacesaTargetmarkeratthecursorlocation.
Atriangularsymbolwithacorrespondingnumberwillappearon
thescreenoverthetarget,whilepositiondataforthedened
markerisdisplayedintheObjectsmenu.
•Thesystemcontinuestotrackthemarkersevenwhenoutside
thesonarrange.
•TheTargetmarkerbuttoncanalsobeusedformanualtarget
trackingasthesystemisdesignedtocalculatethespeed,
courseanddistancebetweenthelasttwochosentargets.
•Thesetargetmarkerdataaredisplayedinwhiteguresfor
15minutesinthelowerrighthandcornerofthehorizontal
presentation.
•Thisfunctionisalsoaneffectivemethodfordeterminingthe
distancebetweentwoselectedpointsonthescreen.
323775/B
45
