SimradSH90

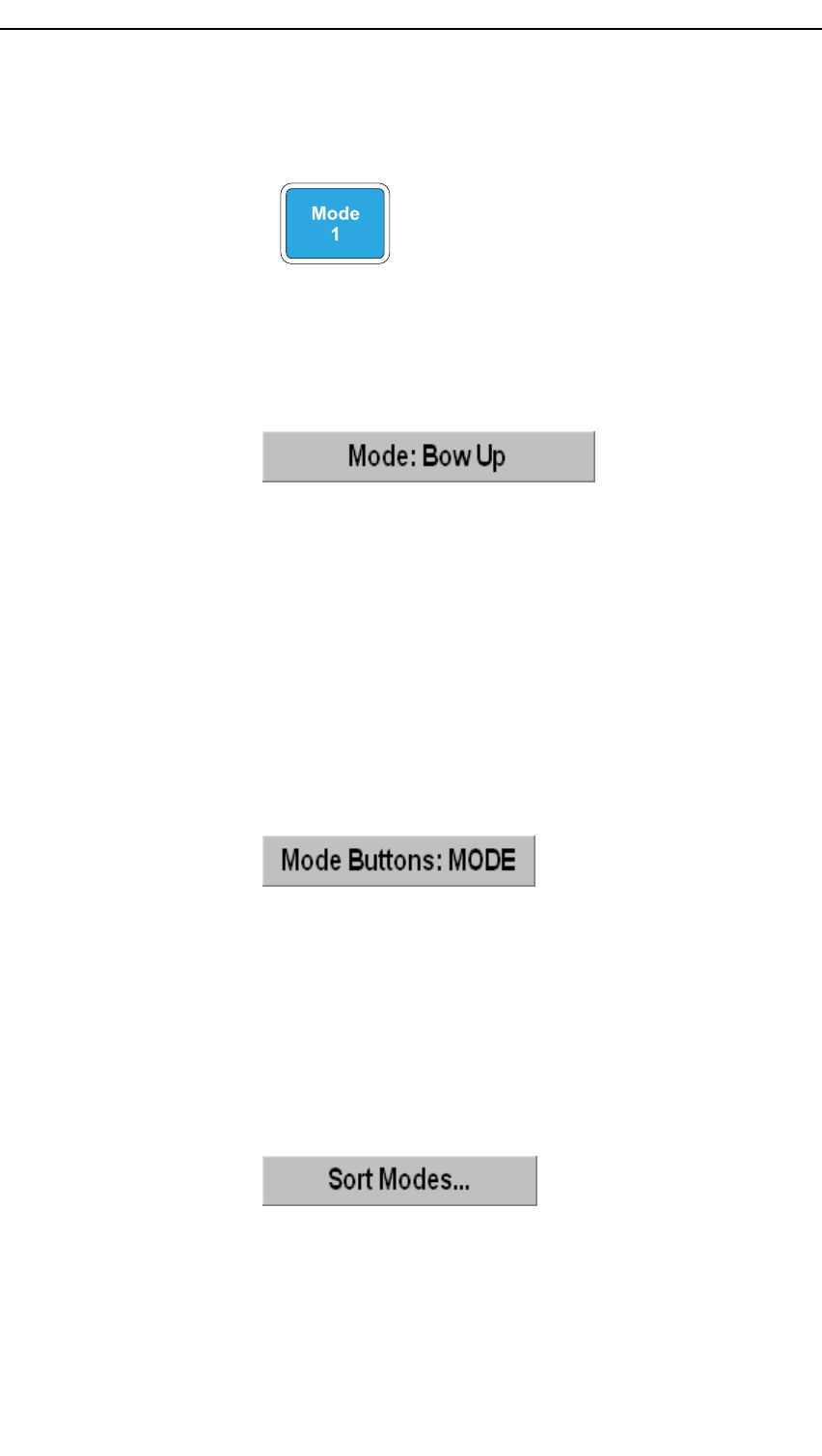

2Pressoneofthefourbuttonstochoosemode.
Alternativemethod
1LocatetheModebuttononthetopofeachmenu.
2ClicktheModebuttontochooseoperationalmode.
ClicktheleftorrightsideoftheModebuttontochoose
mode,orthemiddleofthebuttontoopentheparameter
dialog.
HowtodenethefunctionoftheMode
buttons
TheModebuttonsonyourSH90OperatingPanelcaneitherbe
usedtoselectoperationalmode,orusersettings.Youcanswitch
betweentheseoptions.
1ClicktheDisplaytabtoopentheDisplaymenu.
2ClicktheModeButtons:buttontoselectModeorUser.
Howtosorttheoperationalmodes
YourSH90sonarprovidesyouwithaselectionofoperational
modes.Thislistofmodescanbesortedtosuityourpreferences.
Thetopfourmodesonyourlistcanbechosenbypressingthe
fourModebuttonsontheOperatingPanel.
1ClicktheSetuptabtoopentheSetupmenu.
2ClicktheSortModesbuttontoopentheSortModesmenu.
TheSortModesmenulistsalltheavailablemodesintheir
currentorder.
3Clickoneoftheoperationalmodes.
ObservethattheMovedownand/orMoveupbuttonsatthe
bottomofthemenuareactivated.
44
323775/B
