Operationalprocedures
3Intheparameterdialog,selectthemenulevelyouwishto
use.
4ClickClosetoexit.
Gainadjustmentprocedures
Thissectionexplainshowtocontrolthemanualandautomatic
gainsettingsontheSH90sonar.
Howtoadjustthegain
Youcanadjustthesonargainbymeansofthecontrolbuttons
ontheOperatingPanel,orbyusingtheGainbuttononthe
HorizontalandVerticalmenus.

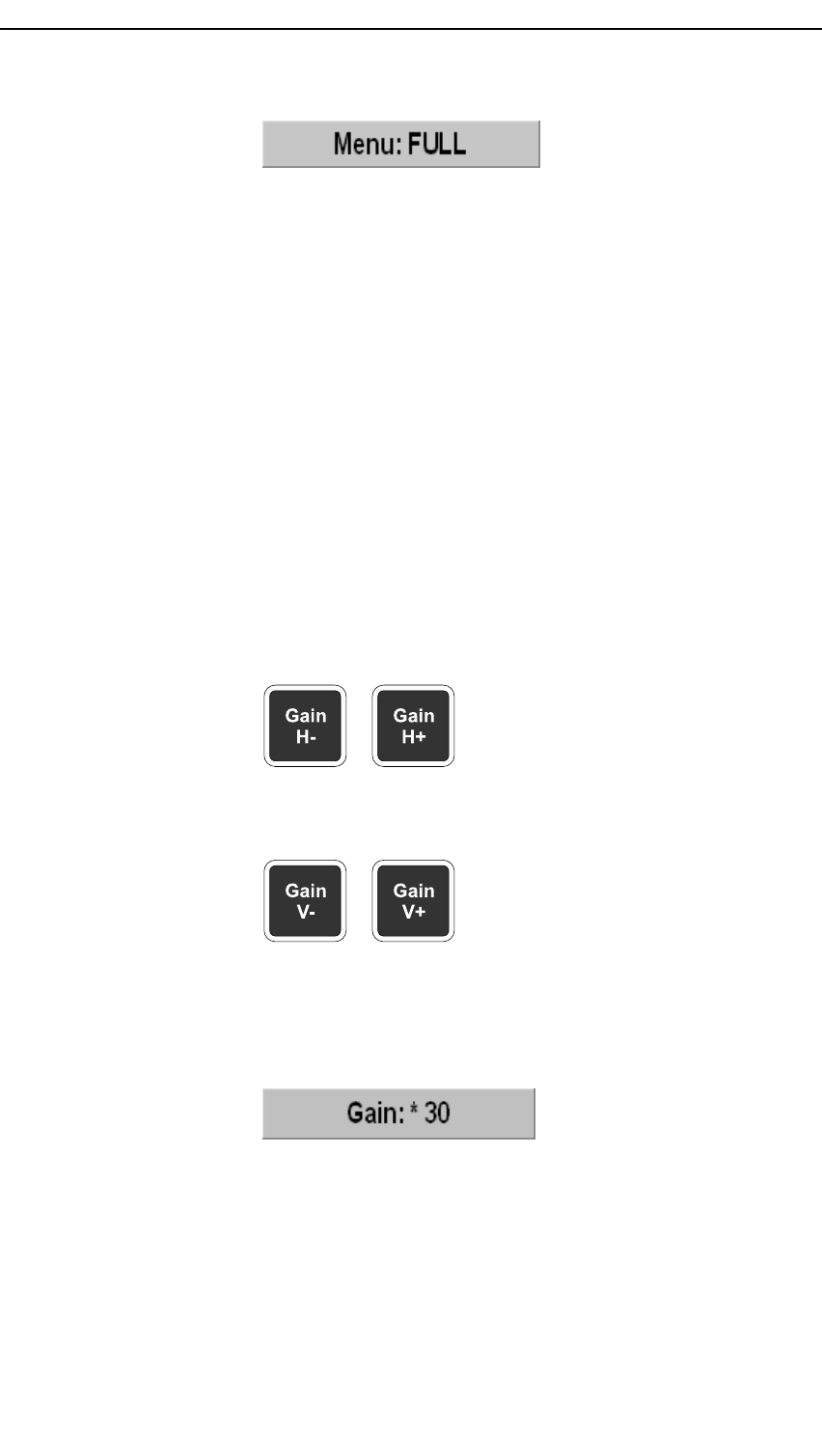

1OntheOperatingPanel,locatetheGaineld.
2PresstheGainH+orGainH-buttonstoincreaseordecrease
thegaininthehorizontalpresentation.
Gain
H-
Gain
H+
3PresstheGainV+orGainV-buttonstoincreaseordecrease
thegainintheverticalpresentation.
Gain
V-
Gain
V+
Alternativemethod
1Inthesonar’smenusystem,clicktheGainbuttononthe
HorizontalorVerticalmenustoadjustthegain.
ClicktheleftorrightsideoftheGainbuttontodecreaseor
increasethegain,orthemiddleofthebuttontoopenthe
parameterdialog.
Formoreinformationaboutthisparameter,seeAboutGainon
page180.
323775/B
41
