SimradSH90

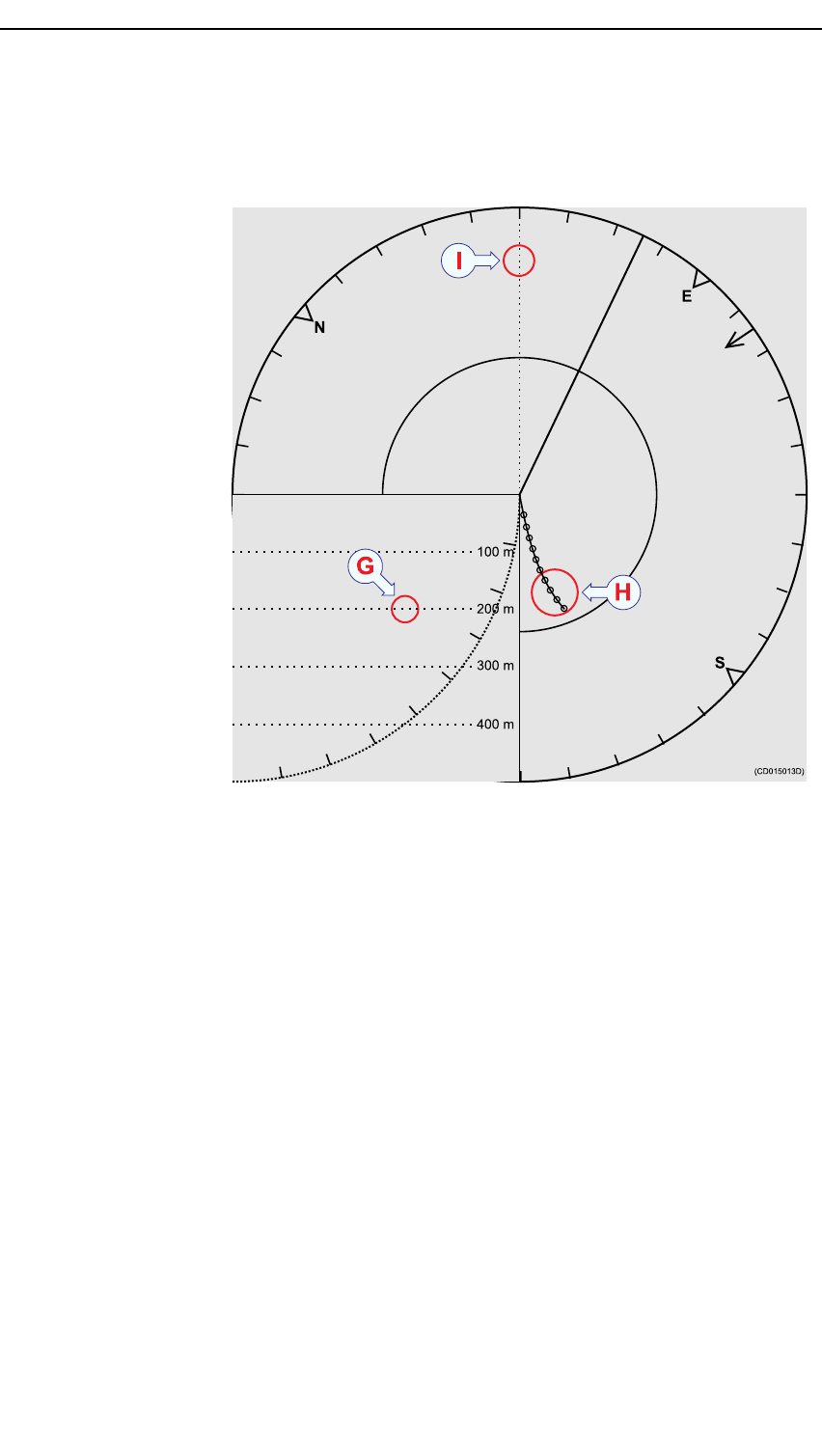

Figure16DepthDividers(G),MinuteMarkers(H)andBow
Marker(I)
TheDepthDividers(G)arehorizontaldottedlinesusedto
visualizethedepthstepsintheverticalslices.
TheMinuteMarkers(H)areshownassmallcirclesonthetrack
historyoftheship.
TheBowMarker(I)isheadingmarker.Itisadottedlinedrawn
fromthebowofyourownship.
On-linehelp
TheSimradSH90sonarisequippedwithacomprehensive
on-linehelpsystem.Helpisprovidedintwolevels:On-lineand
Free.Itisavailablefromalltheparameterdialogsandmenusby
clickingtheHelpbutton.
Oncepressed,thersthelptextwillappearinthebottomofthe
menu.ThisistheOn-linetext.Itisshort,contextsensitive,and
designednottointerrupttheoperationofthesonar.Toclosethe
Helpparameterdialog,clicktheClosebutton.
Toaccessmoredetailedinformation,clicktheFreebutton.This
willopenthecompleteinteractivemanual.Itcontainsthesame
informationastheprintedSH90ReferenceManual,butthe
36
323775/B
