SimradSH90

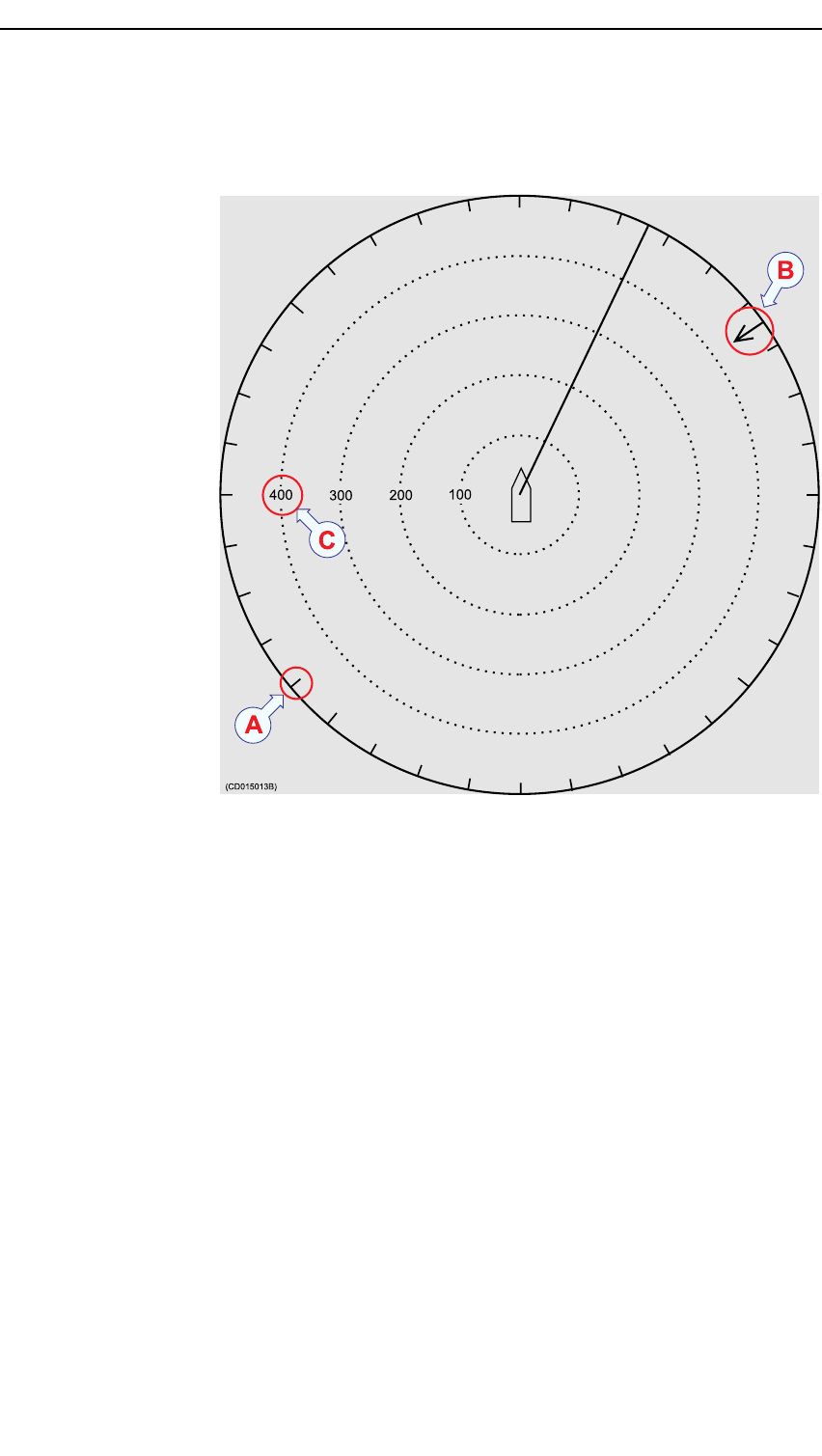

Figure14BearingCard(A),WindMarker(B)andDistance
Rings(C)
(CD015013B)
100
200
300
400
A
C
B
TheBearingCard(A)showsthecurrentbearingrelativetothe
vessel.Themarkersareshownasshortwhitelinesforevery10th
degreealongtheoutercircleofthesonarview.
TheWindMarker(B)isshownasanarrowdrawnfromthe
Compasscardpointingtowardsthecentreofthedisplay.Ifa
windsensorisconnectedtothesonar,itwillautomaticallyshow
thecurrentwinddirection.Otherwise,thewinddirectionmaybe
enteredmanually.Thearrowhasaxedlength,itisnotscaled
accordingtothecurrentwindspeed.
TheDistanceRings(C)areshownasdottedrings,eachwitha
rangeread-outonthelefthandsideofthedisplaycentre.
34
