Gettingstarted
Themenustructure
Themenucontainsseveraldifferentbuttons,tabsandparameter
dialogs.

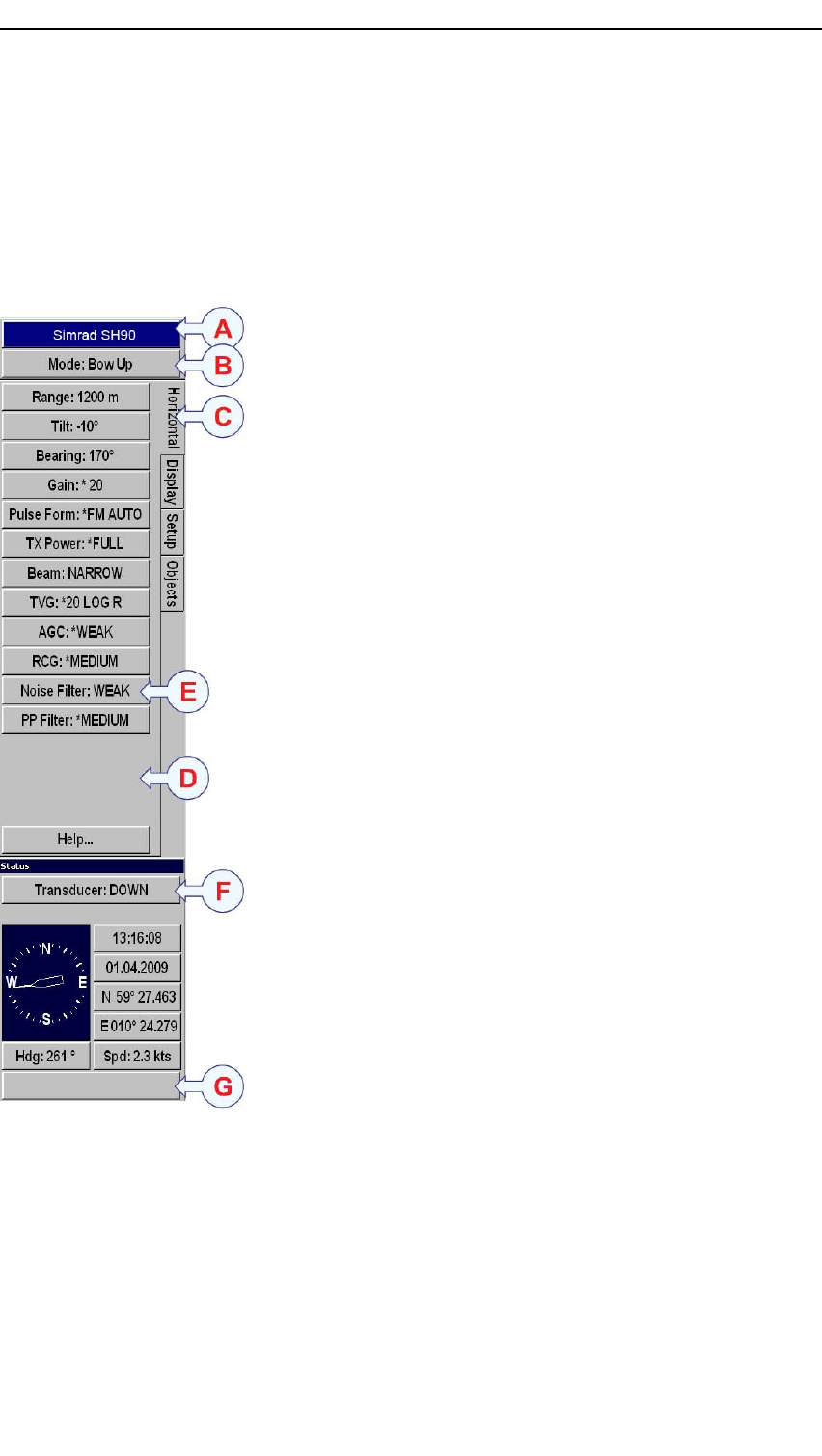

Figure11Menustructure
ASonartype:Thiseldsimplystatesthenameofthe
sonar.
BMode:Clickheretochangedisplaymode.Ifyou
clickonthemiddleofthebuttonyouwillopena
dedicatedmenuformodeselection.Ifyouclickonthe
rightorleftsideofthebuttonyoucanscrollthrough
theavailablemodes.
CTab:Clickonatabtobringforwardthemenu.
DMenu:Thisisthebodyofthemenu.Eachmenuholds
oneormorebuttons.
EButton:Clickonabuttontochangetheapplicable
parameter.Ifyouclickonthemiddleofthebutton
youwillnormallyopenadedicatedparameterdialog
forparameterselection.Ifyouclickontherightorleft
sideofthebuttonyoucanscrollthroughtheavailable
choices.
FParameterdialog:Whenyouclickabutton,the
relevantparameterdialogopensatthebottomofthe
menu.Eachparameterdialogholdsoneormore
buttonsormenus.Tocloseaparameterdialog,click
theClosebutton.MostdialogsprovideaHelpbutton
foraccesstotheon-linehelp.Inthisexampleyou
canseetheStatusdialog,whichisreplacedwhena
parameterdialogisopened.
GMessages:Thebuttonatthebottomofthemenuis
usedtoprovidemessagesfromthesonarsystem.
→Messagesonpage114
