SimradSH90
10Observethatthetransducerishoisted.
Thehoistingmotorwillautomaticallystopwhenthe
transducershaftreachestheupperlimitswitch.
11Setthehoist/lowerswitchS302topositionREMOTE.
12CloseandsecuretheMotorControlUnit.
Airbleeding
Afterthevesselhasbeenindrydock,
usetheairbleedingplug(indicatedin
theillustration)togettheairoutofthe
trunk.Loosentheplugcarefullyone
ortwoturns,untiltheairinsidethe
trunkstartsseepingout.Whenwater
appears,tightenthescrewrmly.

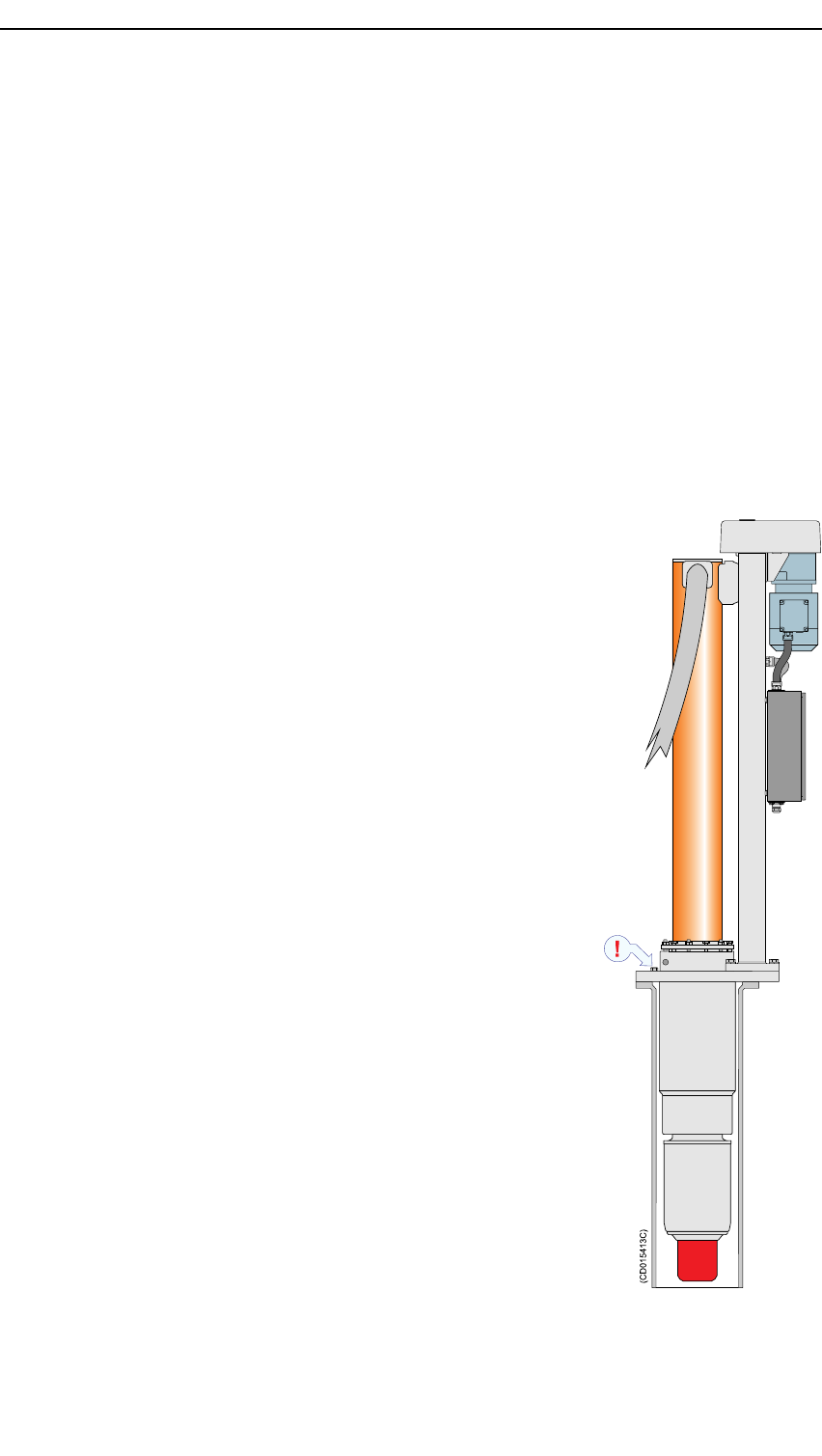

Figure58Locationof
theairbleedingcock
(CD015413C)
!
206
323775/B
