SimradSH90
Omnibeam
WhentheOmnibeamistilted,thetotalbeampicturecanbe
comparedwithfoldinganumbrella,whichmeansthatallbeams
in360degreesaroundthevesselhavethesametiltangle.

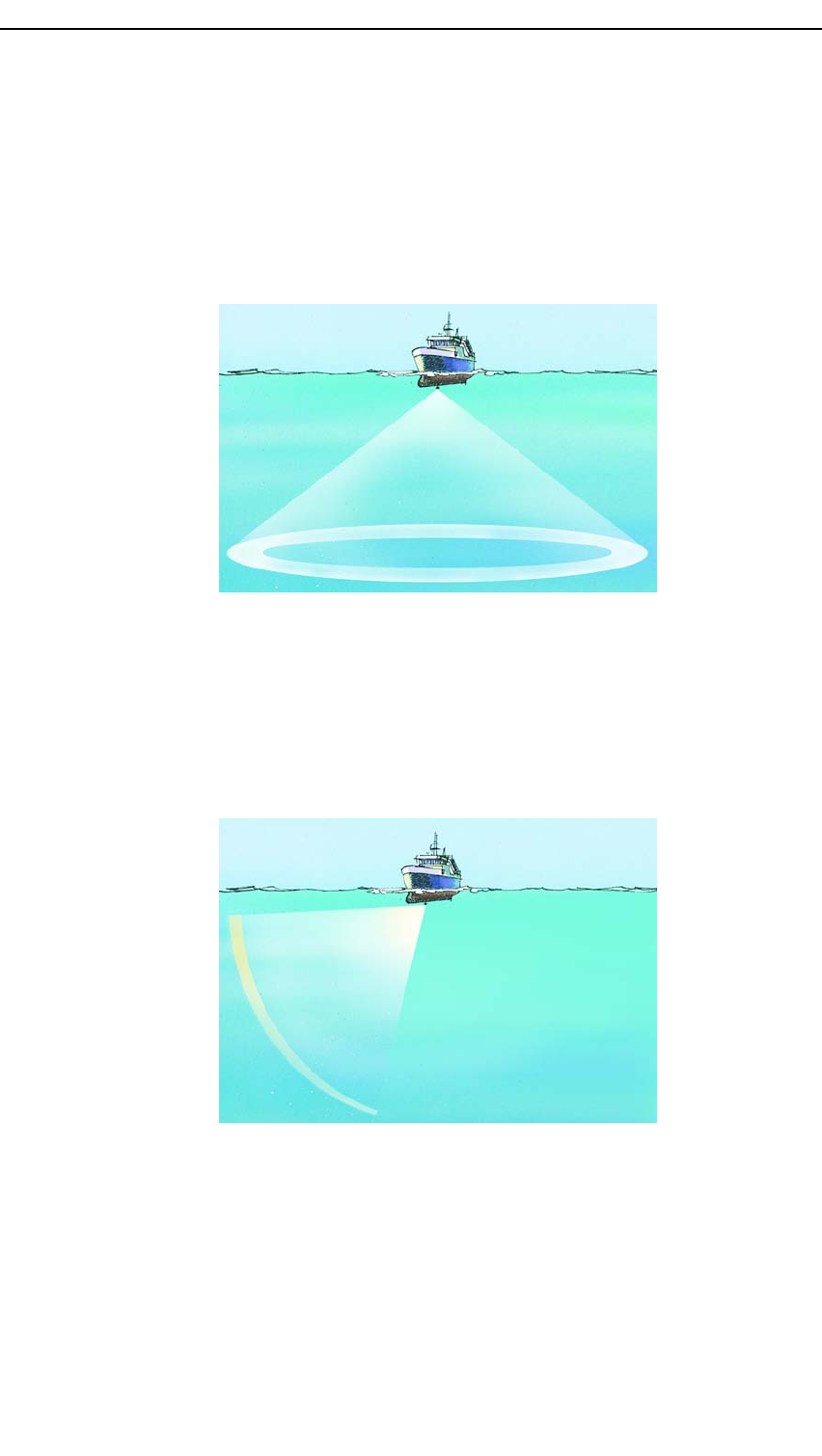

Figure4Omnibeamprinciple
Thebeamcanbetiltedfrom+10upto-60degreesdown.
Inadditiontoseeingthetargetfromabove,itisalsopossible
toseethetargetfromtheside,byusingtheverticalslice
presentation.Inthiscasethebeamcoversacontinuousvertical
beamfrom0to-60degreesinonetransmission.
Figure560degreesverticalslice
Thisverticalslice,whichispresentedbythewhiteaudioline
inthehorizontalpicture,canbeselectedtoanybearingbythe
manualtrainingcontrol.ThecombinationoftheOmnimode
andtheverticalslicewillgiveanoptimalvisualizationofthe
catchsituation.
18
323775/B
