Parameters

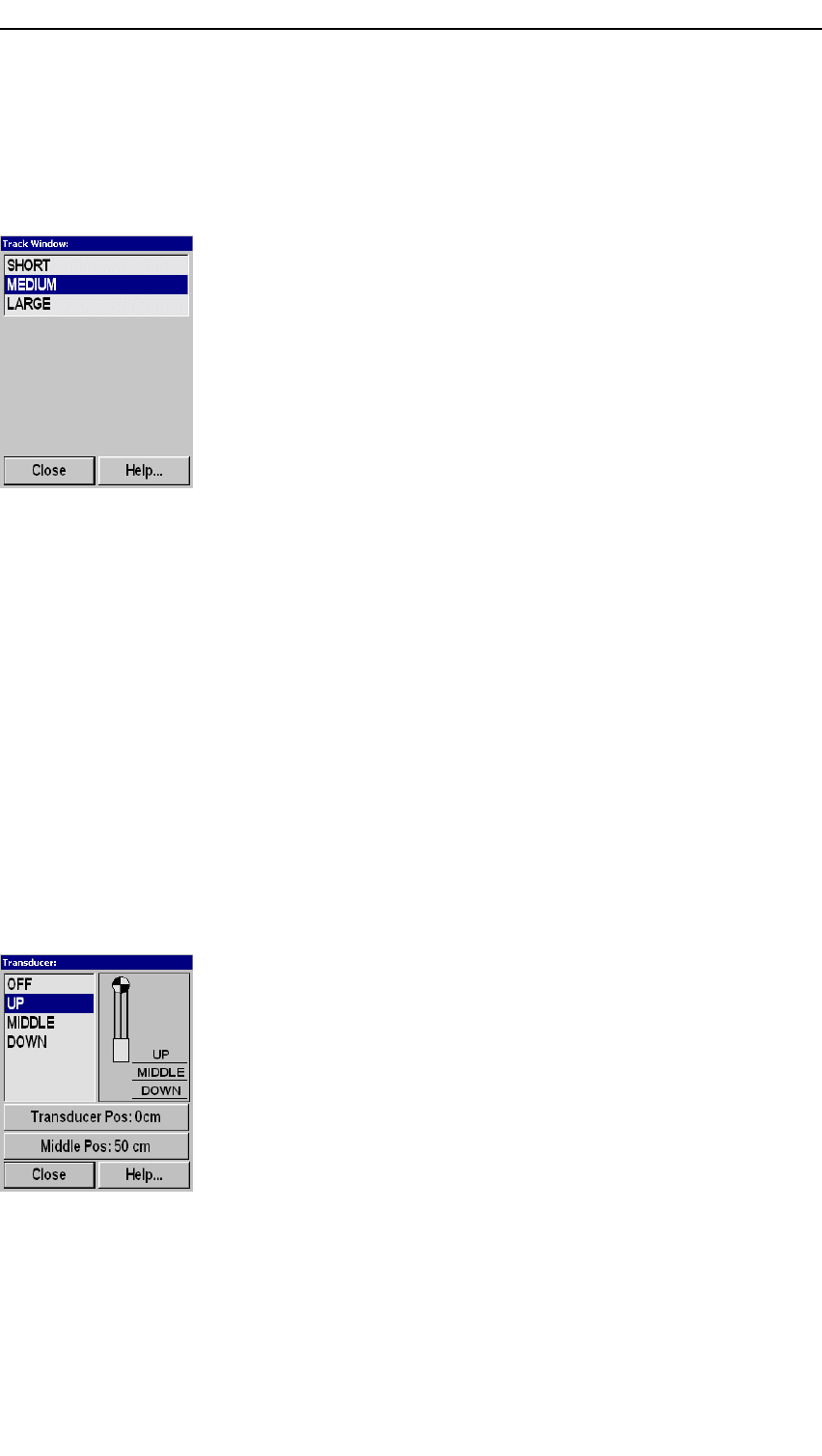

TrackWindow
Dialogdescription
TheTrackWindowparameterdialogopenswhenyouclickthe
TrackWindowbuttonontheSetupmenu.
Thisparameterdialogenablesyoutoadjustthetrackwindow
size.Alargertrackwindowwillenablethesystemtotracka
largetargetmoreeasily,butthesystemwillbemoresusceptible
tobackgroundnoise.Smallertargetsmaybeignoredifthereis
alotofnoiseinthearea,asthesystemwilltrackthestrongest
echowithinthetrackwindow.
TrackWindowdialogoptions
•Short:Clicktouseasmalltrackwindow.
•Medium:Clicktouseamediumsizedtrackwindow.
•Large:Clicktousealargetrackwindow.
•Close:Clicktoclosetheparameterdialog.
•Help:Clicktoaccesstheon-linehelp.
Relatedtopics
•Setupmenuonpage99
Transducer
Dialogdescription
TheTransducerparameterdialogopenswhenyouclickthe
TransducerbuttonintheStatusparameterdialog.
ThetransducerpositionisnormallyselectedfromtheOperating
Panel,andinadditiontotheLEDindicatorsonthepanel,the
transducerpositionisshownintheStatusparameterdialog.The
buttonsinthisparameterdialogcorrespondtotheirrespective
buttonsontheOperatingPanel,andallowsyoutocontrolthe
transducerpositionbymeansofthesonar’smenusystem.
Transducerdialogoptions
•Off:Clicktoswitchoffthesonarsystem.
•Up:Clicktoretractthetransducertoitsupperposition.
•Middle:Clicktopositionthetransducerinitsmiddleposition.
ThispositionisdenedbymeansoftheMiddlePosbutton.
323775/B
169
