SimradSH90
Ifasequenceloopstorageisselected,theStorebuttonisusedfor
startandstopofthestorage.Ifsinglepicturestorageisselected,a
newpicturestorageismadeeachtimetheStorebuttonispressed.
•Tocontrolthestorefunction,clicktheStoreModebuttonon
theStore/Recallmenu.
•Torecall(playback)sonarimages,clicktheRecallbuttonin
theStore/Recallmenu.Todenetheplaybackmode,clickthe
RecallModebuttonintheStore/Recallmenu.
Relatedtopics
•Store/Recallmenuonpage104
•Setupmenuonpage99
•StoreModeonpage164
•Recallonpage154
•RecallModeonpage154

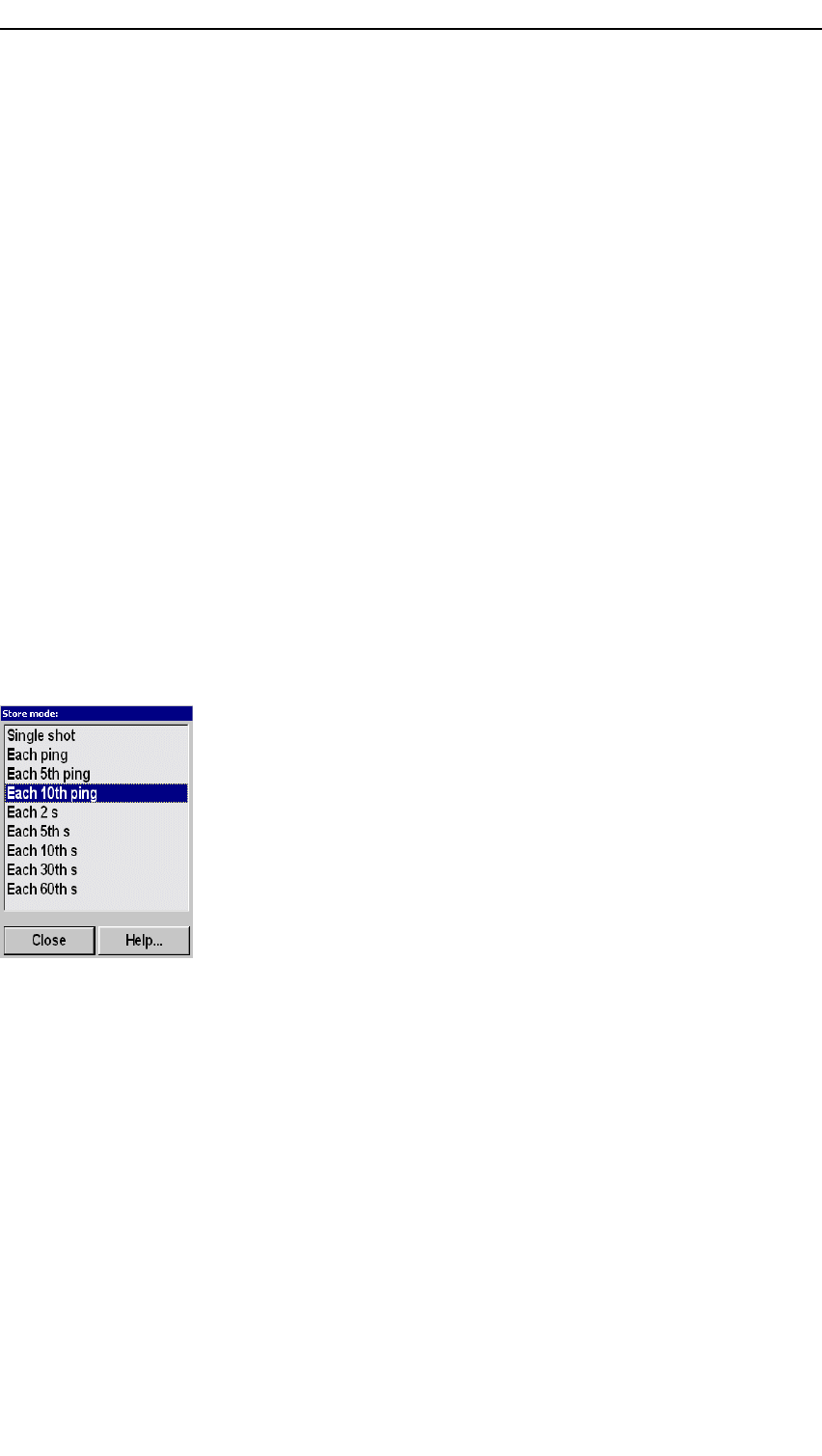

StoreMode
Dialogdescription
TheStoreModeparameterdialogopenswhenyouclicktheStore
ModebuttonintheStore/Recallmenu.TheStore/Recallmenuis
inturnopenedbypressingtheStore/RecallbuttonontheSetup
menu.
Thisparameterdialogisusedtoselectthestoragefunctionofthe
RecordbuttonontheOperatingPanelandtheStorebuttoninthe
Store/Recallmenu.Thestoragecanbeselectedtocontainsingle
shots,ordifferentping-ortimesequences.
Torecall(playback)sonarimages,clicktheRecallbuttoninthe
Store/Recallmenu.Todenetheplaybackmode,clicktheRecall
ModebuttonintheStore/Recallmenu.
StoreModedialogoptions
•Singleshot:Clicktorecordonesinglescreenshot.
•Eachping:Clicktorecordtheechoesfromeachpingina
seriesofseparateimages.
•Each5thping:Clicktorecordtheechoesfromeachfthping
inaseriesofseparateimages.
•Each10thping:Clicktorecordtheechoesfromeachtenth
pinginaseriesofseparateimages.
•Each2s:Clicktorecordthesonarechoeseverytwoseconds
inaseriesofseparateimages.
164
323775/B
