Parameters
Speeddialogoptions
•+(plus):Clicktoincreasethemanualspeed.
•–(minus):Clicktodecreasethemanualspeed.
•Manual:Clicktoallowmanualspeedentry.
•Auto:Clicktoallowautomaticreceptionofspeeddatafroma
relevantexternalsensor.
•Close:Clicktoclosetheparameterdialog.
•Help:Clicktoaccesstheon-linehelp.
Relatedtopics
•Statusonpage162

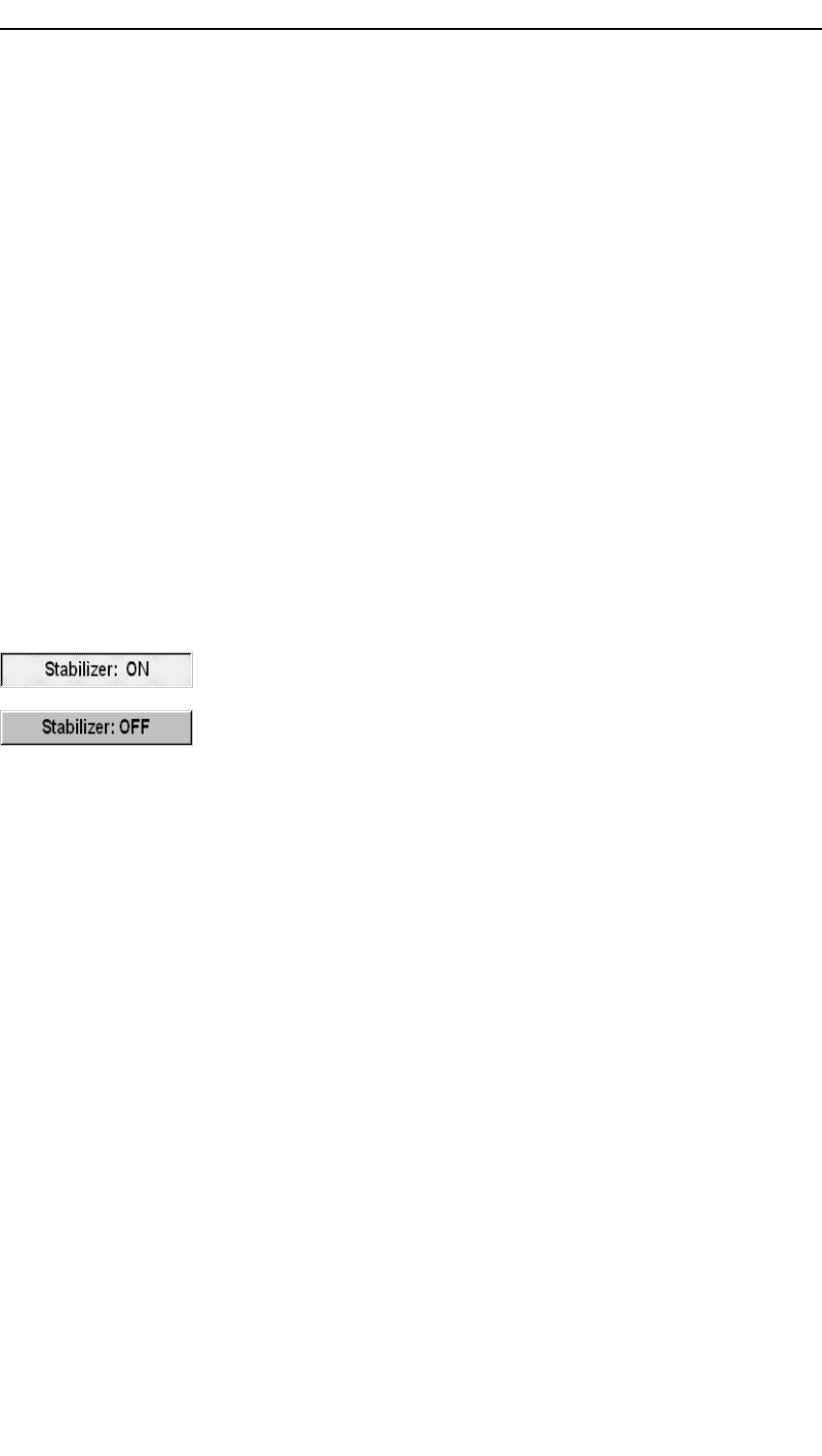

Stabilizer
Dialogdescription
TheStabilizerbuttonislocatedintheSetupmenu.
Whenthestabilizerisactive,thetransducerbeamwillbe
stabilizedelectronicallyforrollandpitch.Thebeamdirection
willchangecontinuouslyaccordingtothevessel’smovements,
andthusbecompensatedwheneverthevesselisoutoftrim.The
beamanglewillalwaysbemaintainedasifreferredtoa“at”
watersurface.Whenthestabilizerisused,thiswillalsoallow
youtousethePPFilterinroughseas.Thislterwillgivea
cleanerandmorestableechopresentation.
323775/B
161
