SimradSH90
Rulerdialogoptions
•Length(L):Thisread-outprovidesthelengthoftheruler.
•Direction(Di):Thisread-outprovidesthedirectionofthe
rulerindegrees.
•Delete:Clicktodeletethecurrentlyselectedruler.
•SetPriority:Notused.
•Close:Clicktoclosetheparameterdialog.
•Help:Clicktoaccesstheon-linehelp.
Relatedtopics
•Objectpop-upmenuonpage109
Scale
Dialogdescription
TheScaleparameterdialogopenswhenyouclicktheScalebutton
intheGeoViewmenu.
TheGeoViewmenuisactivatedbypressingtheViewbuttononthe
OperatingPanel(orthem
i d d l e mousebutton)inanyhorizontal
view,andthenselectingViewmenuintheViewpop-upmenu.
Thisdialogallowsyoutoscalethehorizontalpresentationsupor
down.

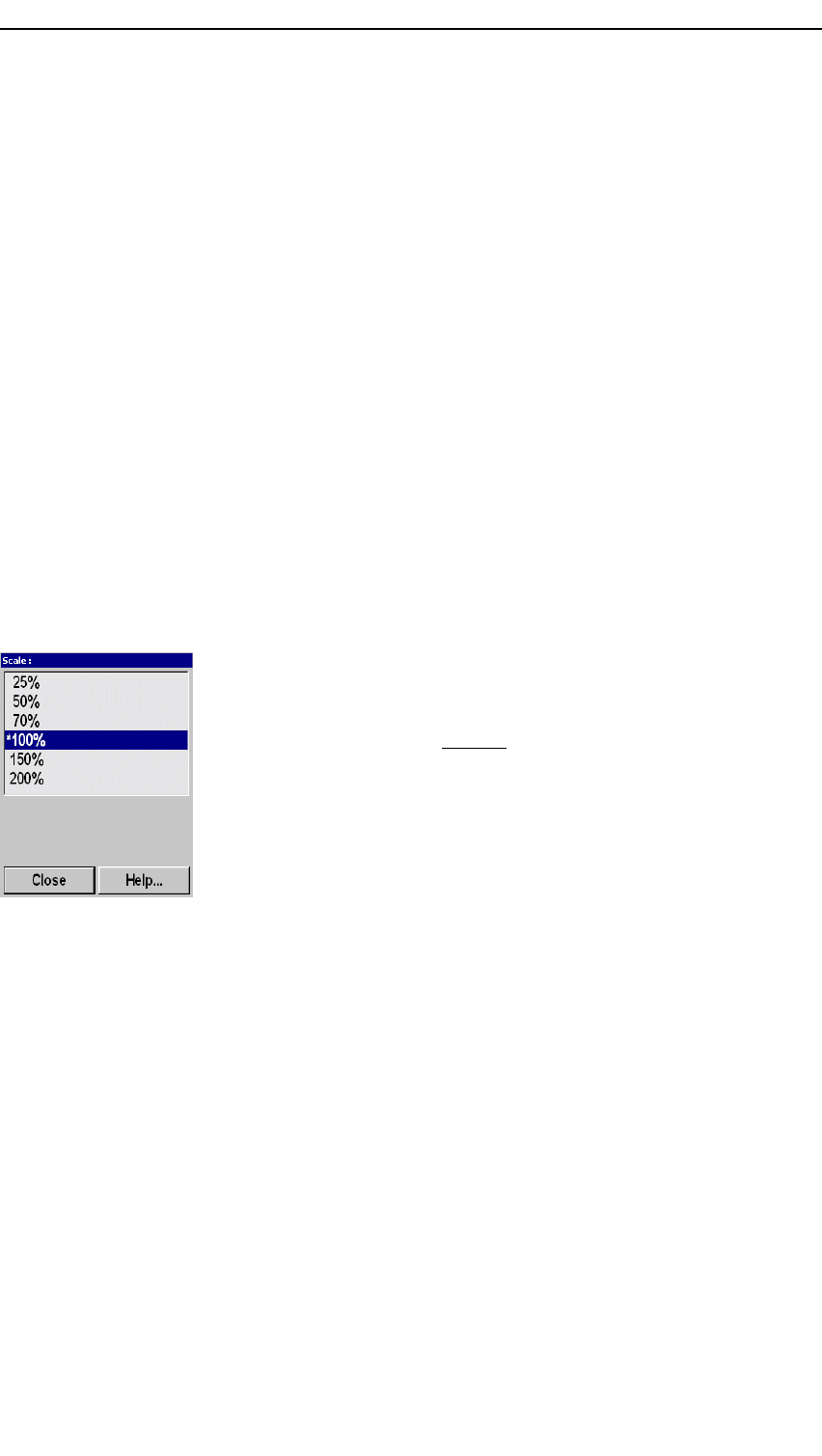

Scaledialogoptions
•[Scale]:Clicktochoosethepreferredscale.
•Close:Clicktoclosetheparameterdialog.
•Help:Clicktoaccesstheon-linehelp.
Relatedtopics
•GeoViewmenuonpage111
•Viewpop-upmenuonpage108
