Parameters
Range

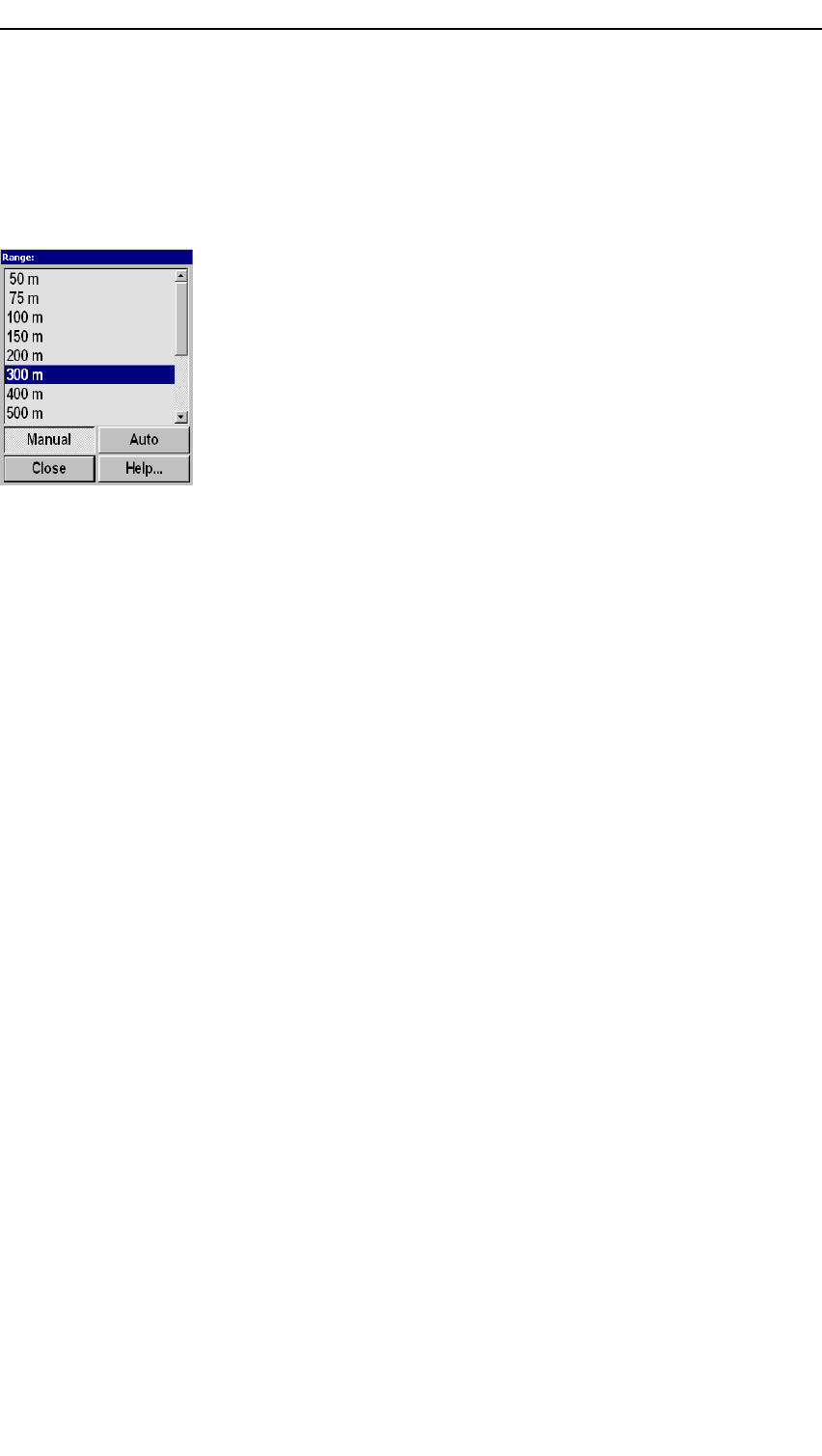

Dialogdescription
TheRangeparameterdialogopenswhenyouclicktheRange
buttonintheHorizontal,VerticalandVertical180menus.
Horizontalandverticalrangesarenormallyselectedusingthe
buttonsontheOperatingPanel.Youcanalsocontrolthese
settingsdirectlyusingthisparameterdialog.Theavailable
choicesarelistedinthedialog.
Inadditiontotheread-outonthemenu,thecurrenthorizontal
rangeisnormallydisplayedoverthetiltindicatorintheupper,
left-handcornerofthedisplay.
Formoreinformationabouttherangesettingsmadeonthe
OperatingPanel,see’Range’eldonpage86.
Rangedialogoptions
•[Range]:Clicktoselectmanualrange.
Availablerangesare50,75,100,150,200,300,400,500,
600,750,1000,1200,1500and2000meters.
•Manual:Clicktoenablemanualrangeselection.
•Auto:Clicktoenableautomaticrangeselectionduring
position-andtargettracking.Thisallowsforoptimaltracking.
•Close:Clicktoclosetheparameterdialog.
•Help:Clicktoaccesstheon-linehelp.
Tomaintainasteadydisplayduringseinesetting,thelower
automaticrangeissetto450meters.Changingtherangeor
pressingtheManualbuttonwillstoptheautomaticranging
function.Thesonarisdesignedtoworkwithvarioushorizontal
rangeunitssuchasmeter,nauticalmile,USsurveyfeetoryards.
ThischoicecanbemadebypressingtheUnitsbuttoninthe
Displaymenu.
Relatedtopics
•Horizontalmenuonpage93
•Verticalmenuonpage95
•Vertical180menuonpage96
•Unitsonpage173
