SimradSH90
Menu
Dialogdescription
TheMenuparameterdialogopenswhenyouclicktheMenu
buttonintheDisplaymenu.
Thisparameterdialogallowsyoutoselectdifferentlevelsof
complexityinthemenusystem.Usingthisfunctionyoucanhide
menubuttonsthatyoudonotuse.

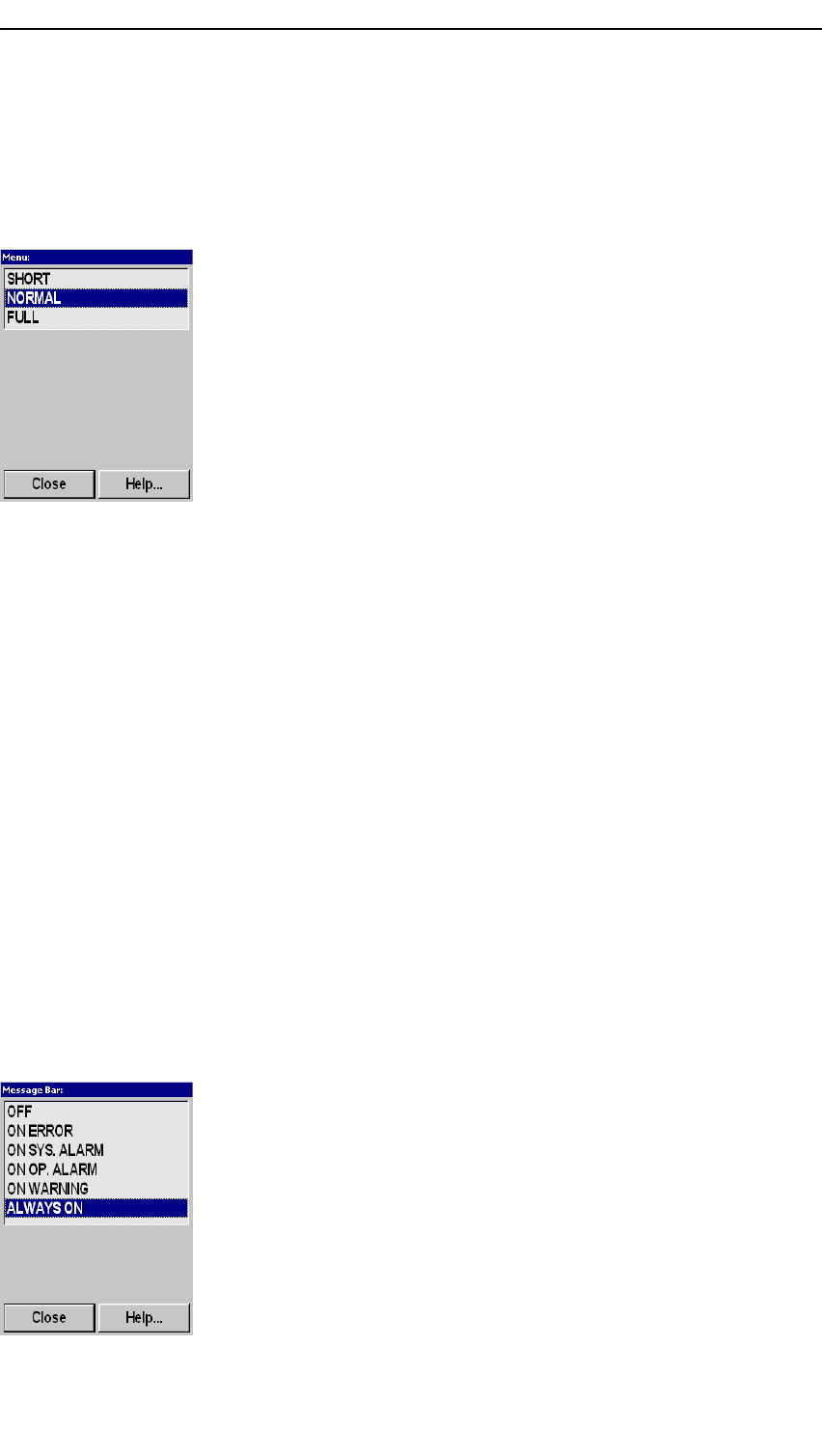

Menudialogoptions
•Short:Clicktoseeonlythemostimportantbuttonsinthe
menus.Thissettingisrecommendedforsimplieduse.
•Normal:Clicktoseethemostcommonbuttonsinthemenus.
Thissettingisrecommendedfornormalusers.
•Full:Clicktoseeallthebuttonsinthemenus.Thissettingis
recommendedforadvancedusers.
•Close:Clicktoclosetheparameterdialog.
•Help:Clicktoaccesstheon-linehelp.
Relatedtopics
•Displaymenuonpage98
MessageBar
Dialogdescription
TheMessageBarparameterdialogopenswhenyouclickthe
MessageBarbuttonintheSystemTestmenu.TheSystemTest
menuisinturnopenedbyclickingtheTestbuttonontheSetup
menu.
Thesonarautomaticallyissuesmessageswhenoperational
disturbancesoccur.Themessagesaregroupedintofour
categories,andthisparameterdialogisusedtoselectatwhich
levelwarningsandalarmsshallbepresented.Notethatmessages
arealsoindicatedwithcoloursinthebottomeldoftheStatus
parameterdialog.
