EditSchool
Dialogdescription
TheEditSchoolparameterdialogopenswhenyouclickthe
SchoolDatabuttonontheSetupmenu.IntheSchoolDatadialog,
selectrequestedspeciesandclickEdit.Thetopbuttondisplays
theshspeciesselectedintheSchoolDatadialog.
Thisdialogdisplaysthespeciesofshanditspresentlyselected
density.Thedensityfortheschoolvolumeestimationisbased
onkg/m²schoolarea.Thedefaultvalueis25kg/m²forall
species,andyoumayadjustthisgureindividuallyintheDensity
parameterdialogopenedfromtheDensitybutton.

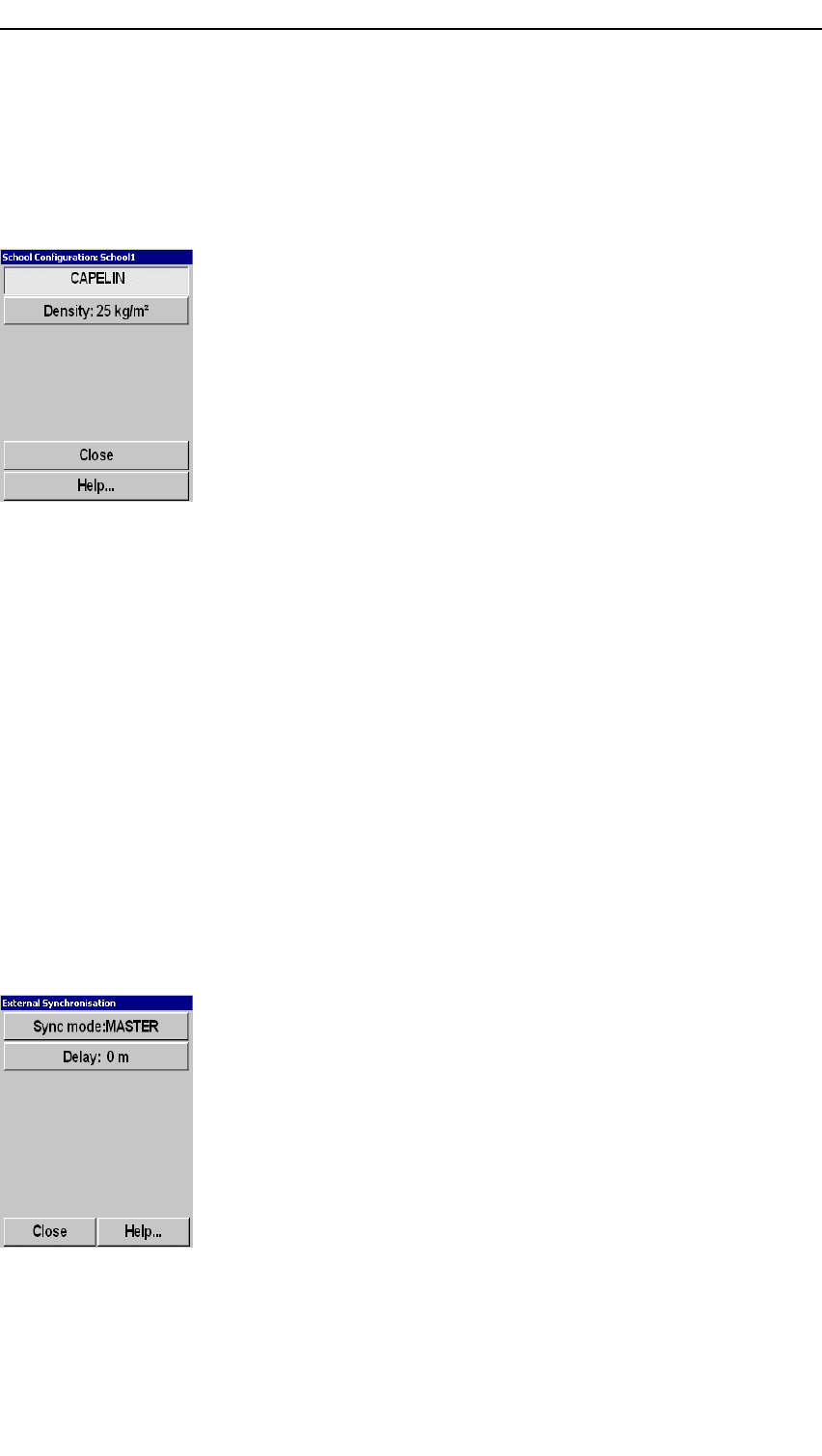

EditSchooldialogoptions
•Density:Clicktoselectdensityinkg/m²forthecurrently
selectedspecies.
•Close:Clicktoclosetheparameterdialog.
•Help:Clicktoaccesstheon-linehelp.
Relatedtopics
•Setupmenuonpage99
•SchoolDataonpage157
ExternalSynchronisation
Dialogdescription
TheExternalSynchronisationparameterdialogopenswhenyou
clicktheExternalSyncbuttonontheSetupmenu.
Thisfunctionmakesitpossibletoeliminateinterferencefrom
otherSimradsonarsonboardthevessel.Ifthesonarsare
connectedtogether,youcanusethesesettingstosynchronise
theirtransmissions.
