Parameters
EditGear(Purse)
Dialogdescription

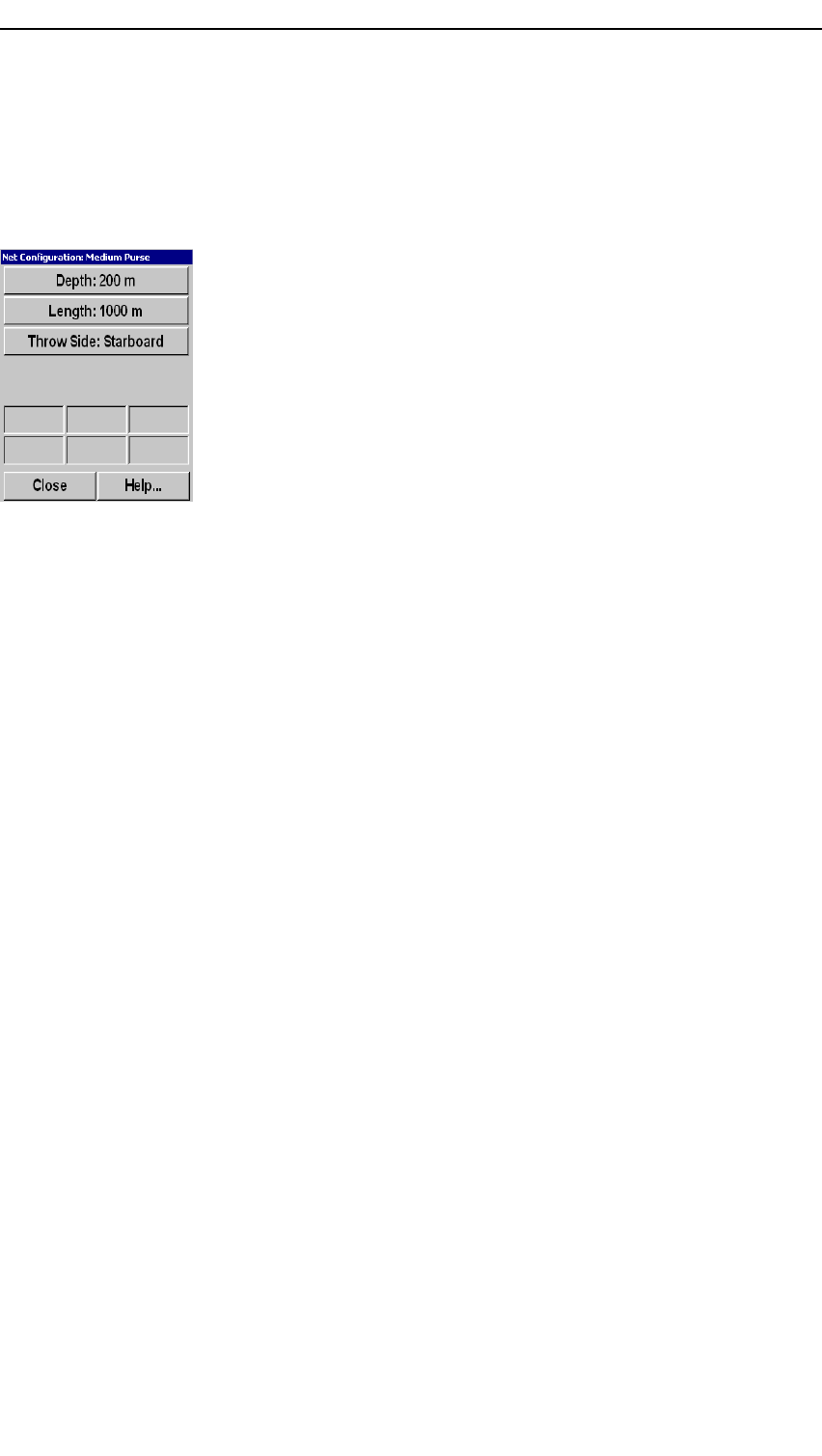

TheGearparameterdialogopenswhenyouclicktheGearbutton
ontheSetupmenu.EachoftheavailableoptionsintheGear
dialogcanbeeditedusingtheEditbutton.Whenapursehas
beenselected,thisEditGearparameterdialogisprovided.
Theseparametersallowsyoutodenethedepthandthelength
ofyourpurseseine,aswellaswhichsideofthevesselitis
positioned.
EditGear(Purse)dialogoptions
•Depth:Clicktoenterthedepthofyourpurseseine.Whenthe
Gearsymbolisselected,thedepthofthepurseseinewillbe
shownonallverticalviews.
•Length:Clicktoenterthelengthofyourpurseseine.When
theGearsymbolisselected,theseinecirclewillbeshownin
correctsize.Adedicatedparameterdialogisusedtomake
thissetting.
•ThrowSide:Clicktopositiontheseinecircleontheportor
starboardsideofthevessel.Adedicatedparameterdialog
isusedtomakethissetting.
•Sinkrate:Clicktoentertheexpectedsinkrateofthegear.
Ifadepthsensorisconnectedtothesonar,thisoptionis
removed.
•Close:Clicktoclosetheparameterdialog.
•Help:Clicktoaccesstheon-linehelp.
Relatedtopics
•Setupmenuonpage99
•Gearonpage138
•EditGear(Trawl)onpage134
