SimradSH90
•–(minus):Clicktodecreasethedirectionangle.
•Close:Clicktoclosetheparameterdialog.
•Help:Clicktoaccesstheon-linehelp.
Relatedtopics
•Setupmenuonpage99
•DataSourceonpage128
DisplayGain
Dialogdescription

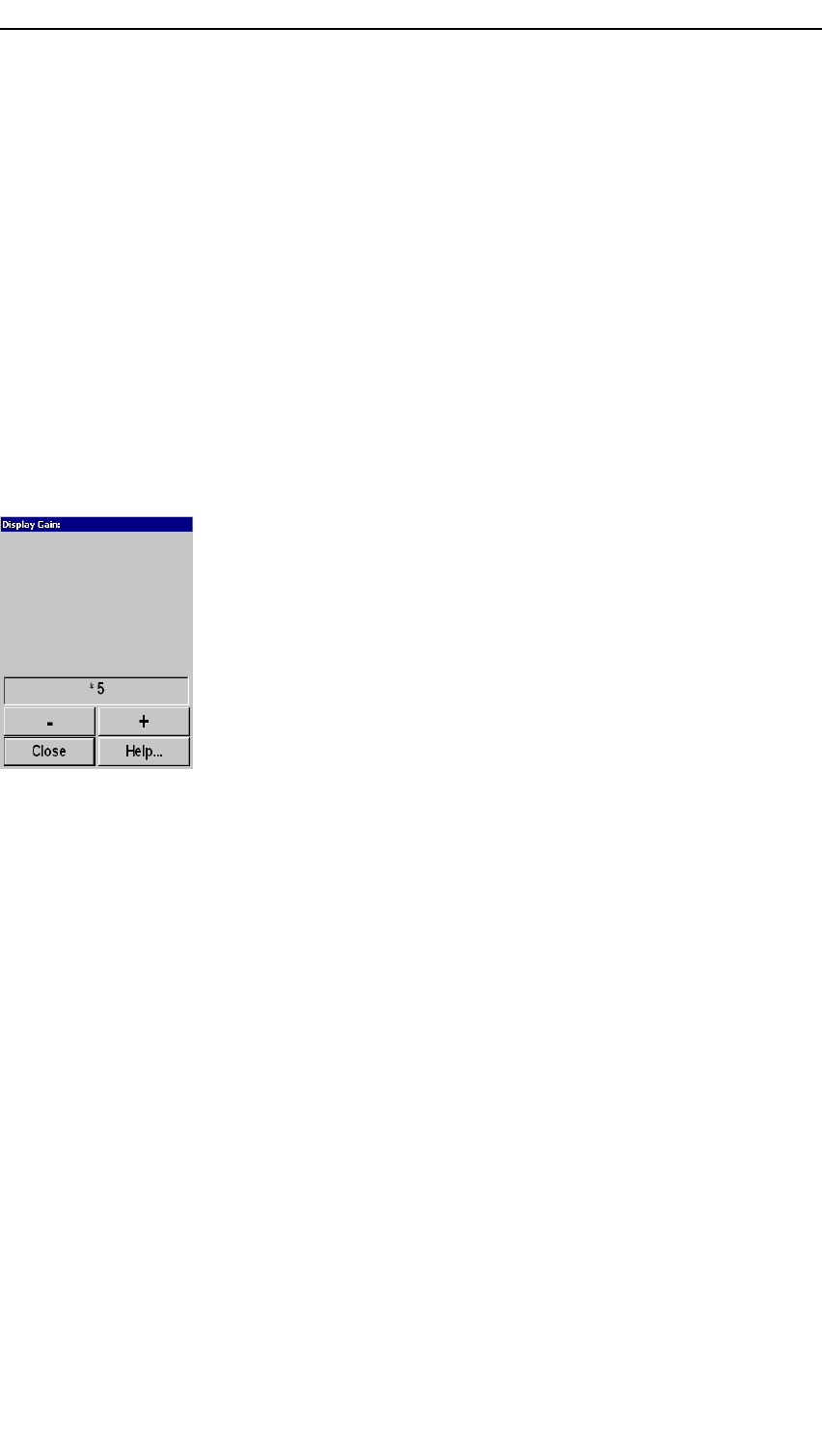

TheDisplayGainparameterdialogopenswhenyouclickthe
DisplayGainbuttonintheDisplaymenu.
Thesesettingsincreaseordecreasethepresentationoftheecho
coloursonthedisplay.Inordertoadjustthereceivergain,refer
totheindividualGainparametersavailablefromtheHorizontal
andVerticalmenus.
DisplayGainoptions
•+(plus):Clicktoincreasethedisplaygain.
•–(minus):Clicktodecreasethedisplaygain.
•Close:Clicktoclosetheparameterdialog.
•Help:Clicktoaccesstheon-linehelp.
Relatedtopics
•Displaymenuonpage98
•Gainonpage138
