Menudescriptions

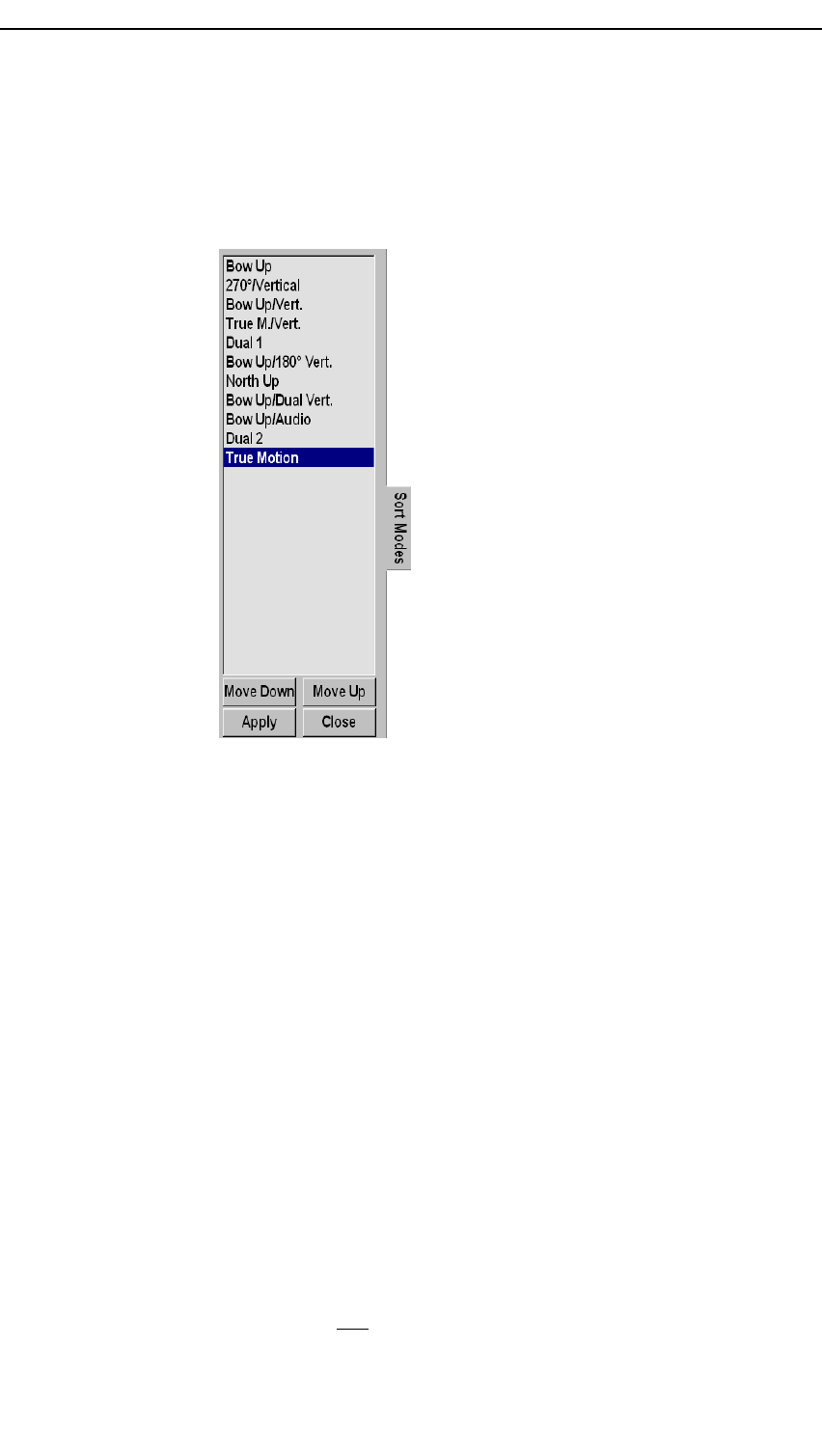

SortModesmenu
Menudescription
TheSortModesmenuisactivatedbythe
SortModesbuttonintheSetupmenu.
(►Setupmenuonpage99)
Thismenuisusedtoselectthedisplay
modestobeactivatedbythefourMode
buttonsontheOperatingPanel.The
fourupperdisplaymodesinthismenu
willalwaysbethemodesselectedbythe
fourModebuttonsintheordertheyare
sorted.Inordertosortthemodes,click
onamodetoselectit,andclicktheMove
UpandMoveDownbuttonstomovethe
selectedmodeupordownthelist.When
themodesareorganizedintherequested
order,clicktheApplybuttontosavethe
setting,andClosetoclosethemenu.
Foradditionalinformation,seeMode
proceduresonpage43.
•TheClosebuttonclosesthismenu.
Menubuttons
•Movedown:Clicktomovetheselecteddisplaymodedown
onthelist.
•Moveup:Clicktomovetheselecteddisplaymodeuponthe
list.
•Apply:Applythecurrentlistofdisplaymodes.Thefourtop
modescanthenbeselectedusingtheModebuttonsonthe
OperatingPanel.
•Close:Closethemenu.
Pop-upmenus
Thepop-up(short-cut)menusareopenedusingtheViewand
ObjectbuttonsontheOperatingPanel,orthemiddleandright
mousebuttonsifanoptionalcomputermouseisinstalled.Each
buttonwillpresentasmallmenuappearingatthecursor’scurrent
location.Tomakeaselection,positionthearrowcursorbymeans
ofthetrackball.Then,presstheSelectbuttonontheOperating
Panelorthel
e f t mousebutton.
323775/B
107
