SimradSH90
•WindMarker:DisplaysanarrowdrawnfromtheCompass
Cardpointingtowardsthecentreofthedisplay,showsthe
currentwinddirectionifasuitablesensorhasbeenconnected
tothesensor.
•VerticalRing:Displaystheselectedrangeoftheverticalslice
asafullcircleinthehorizontalpresentation.
•DepthDividers:Displayshorizontaldottedlinesusedto
visualizethedepthstepsintheverticalslices.

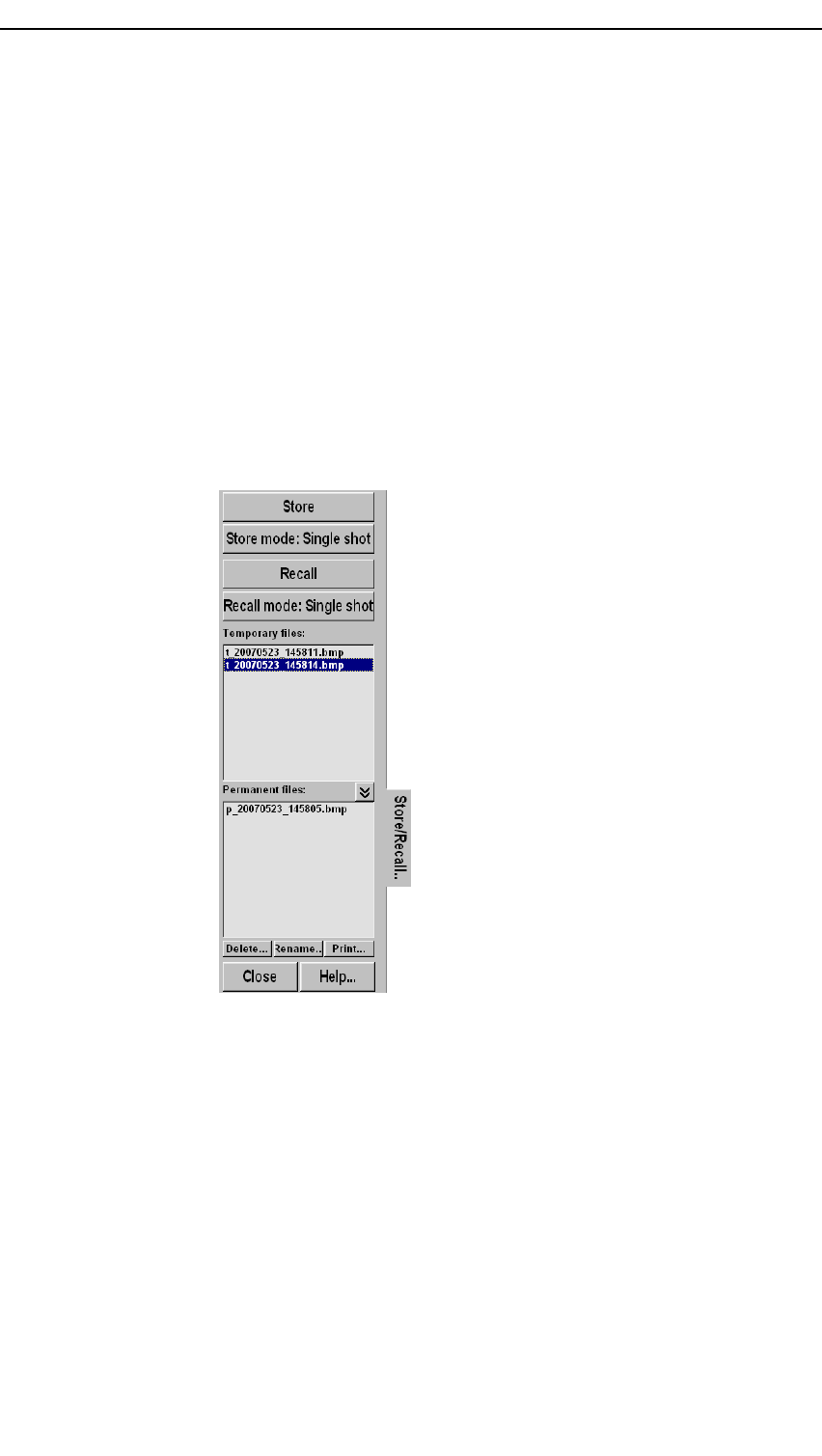

Store/Recallmenu
Menudescription
TheStore/Recallmenuisactivatedbythe
Store/RecallbuttonintheSetupmenu.
Thismenuisusedtostoresingledisplay
picturesorasequenceorpictures.The
storedpicturescaneasilyberecalledfor
evaluationorcomparingschools.For
additionalinformation,seeSetupmenu
onpage99andStorageprocedureson
page48.
•TheClosebuttonclosesthismenu.
•TheHelpbuttonopenstheon-line
help.
Menubuttons
•Store:Thisisthe“record”buttontostartthestoragesequence.
(►Storeonpage163)
•StoreMode:Allowsyoutodecidewhattostore;single
displaypicturesorasequenceorpictures.(►StoreMode
onpage164)
•Recall:Retrievesthestoredpicture.(►Recallonpage154)
•RecallMode:Allowsyoutodecidewhattorecall.(►Recall
Modeonpage154)
•Temporaryles:Thistextelddisplaysthelistofcurrent
temporaryles.Thesewillbedeletedwhenyouswitchoff
thesonar.
104
323775/B
