SimradSH90

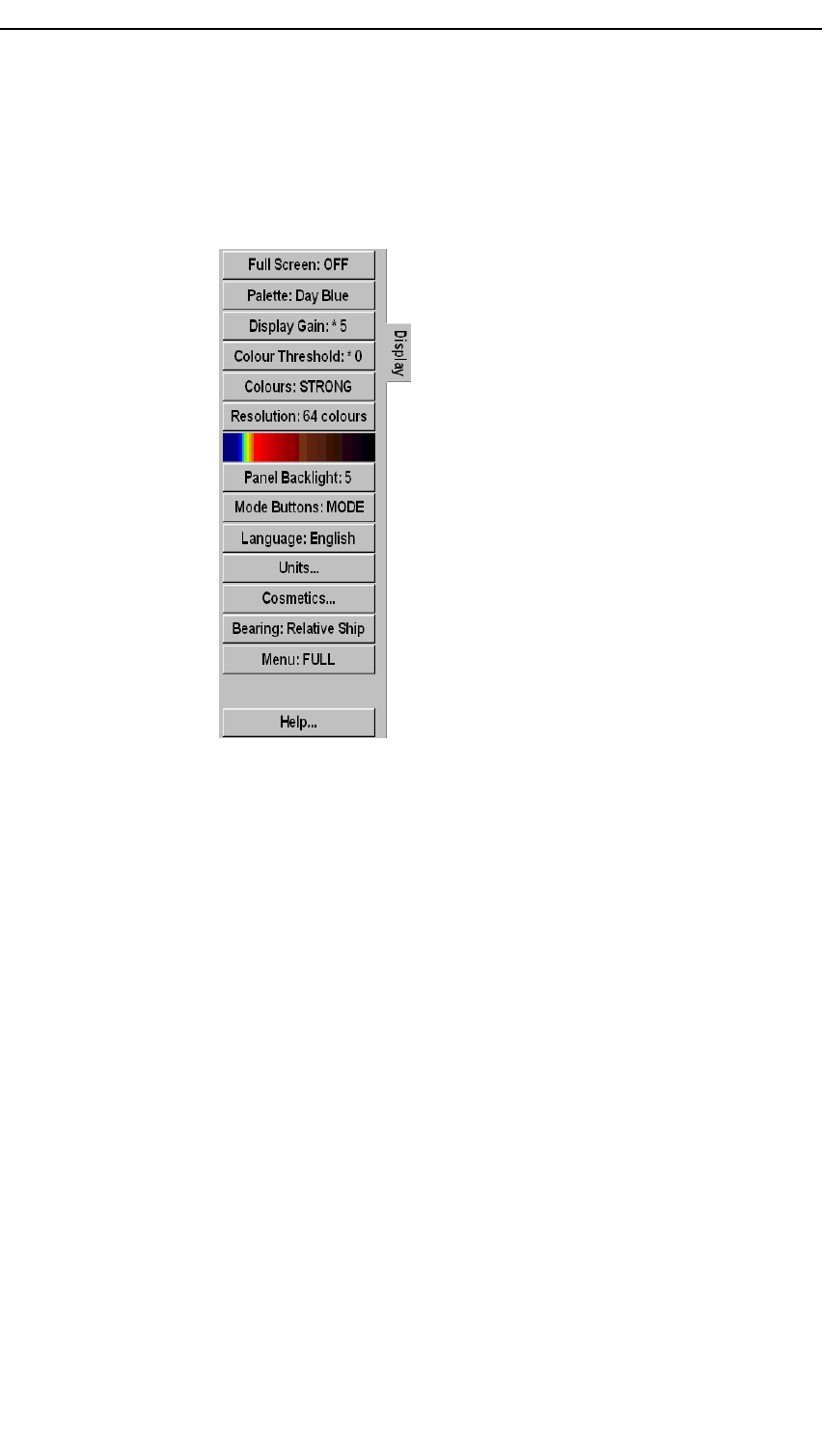

Displaymenu
Menudescription
TheDisplaymenuisshowninalldisplay
modes,andprovidesaccesstoparameters
controllingthevisualpresentationofthe
sonarviews.Someofthechoicesonthe
menuaresimpleon/offbuttons.
Menubuttons
•Fullscreen:Clickthisbuttontoremoveorretrievethemenu.
•Palette:Clickthisbuttontochooseapresentationcolour
palettetosuityourpersonalpreferences.(►Paletteon
page147)
•DisplayGain:Thisfunctioncontrolstheamountofechothat
aredisplayed.UsethiscontroltogetherwithGaintocontrol
thesonar’ssensitivity.(►DisplayGainonpage132)
•ColourThreshold:Clickthisbuttontocontrolhowmany
colourstouseintheechopresentation.(►ColourThreshold
onpage126)
•Colours:Controlhowbrightcoloursyouwishtouse.
Thecolourbarinthemenushowsthecolourrangethatis
used.(►Coloursonpage127)
•Resolution:Select16or64coloursinthedisplaypresentation.
Thechosenresolutionisshowninthecolourbarbelowthe
button.
•PanelBacklight:Thisfunctioncontrolstheintensityofthe
backlightintheOperatingPanel.(►PanelBacklighton
page147)
