4.5 – MATE3/MATE3s Settings
Table 5.0 - Program Settings for SimpliPhi PHI 3.8 kWh 48V Battery w/Outback MATE3/MATE3s
MATE3 / MATE3s Settings
10k Cycles
(80% DoD)
5k Cycles
(90% DoD)
3.5k Cycles
(100% DoD)
FLEXnet DC Advanced Control
Low SOC Warning = 20%
FLEXnet DC Advanced Control
Critical SOC Warning = 10%
5.0 – AC Input Charger Limit
The Outback inverter charger current limit setting is made from the AC input side of the charger (not the
DC side of the charger) so the AC charging current must be calculated then entered as the charger limit
setting. Per Outback recommendations:
1. First convert DC charge current to DC watts. (AC and DC watts are the same)
2. Then apply the charger efficiency.
3. Then convert AC watts to AC current.

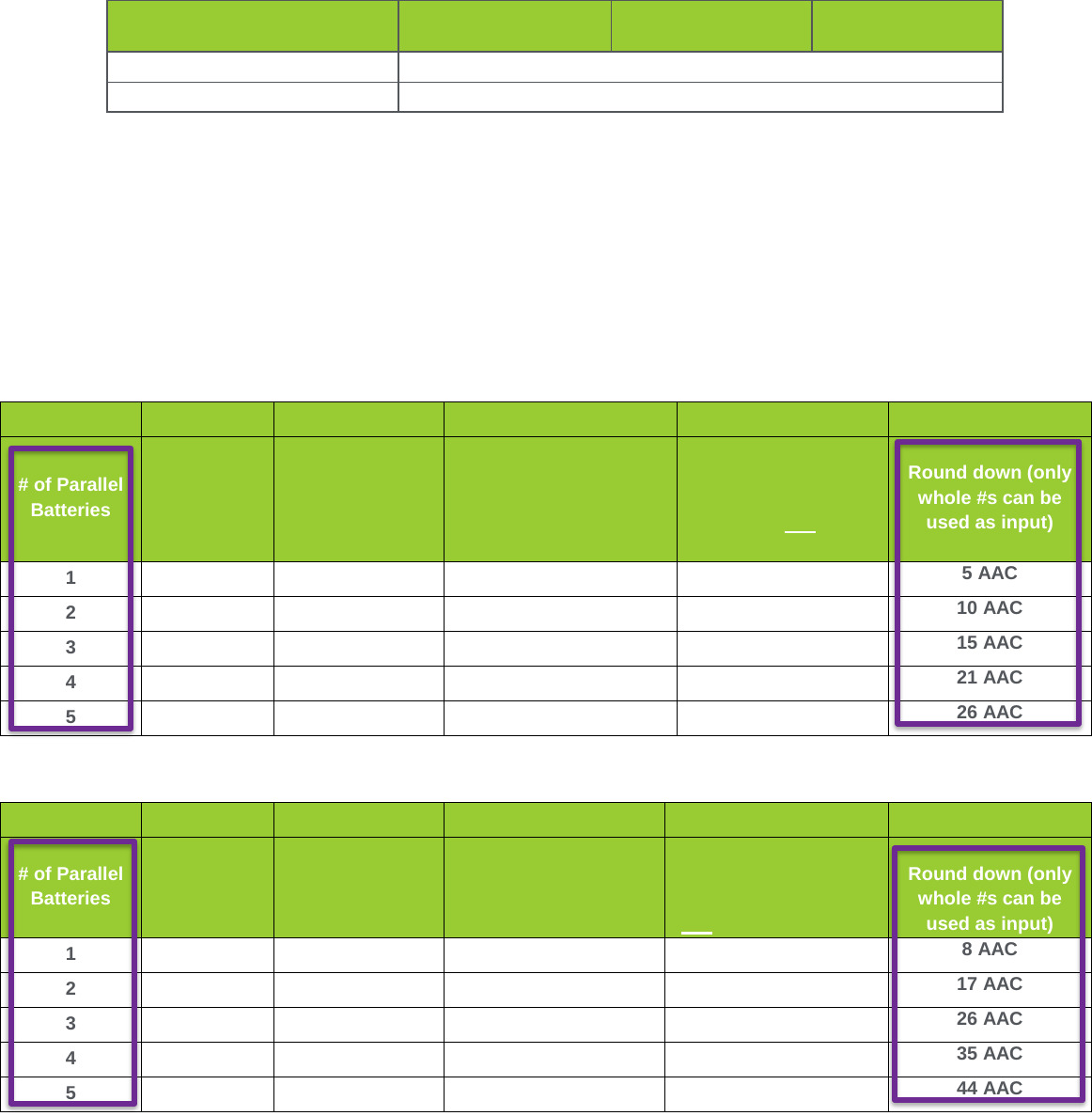

Table 6.0 – Conversion from DC to AC Limit for 1 to 5 PHI 3.8 kWh 24V Batteries (45A DC limit per PHI battery)
A
B
C
D
E
F
# of Parallel
Batteries
DC Current
Limit
ADC x VDC (24)
WDC ÷ Charger
Efficiency (85% = .85)
Column D ÷ Inverter
Voltage (120 or 240
VAC, dep. on
inverter; 240 VAC
used below)
Round down (only
whole #s can be
used as input)
1
45A
1,080 WDC
1,270.59 WAC
5.29 AAC
5 AAC
2
90A
2,160 WDC
2,541.18 WAC
10.59 AAC
10 AAC
3
135A
3,240 WDC
3,811.76 WAC
15.88 AAC
15 AAC
4
180A
4,320 WDC
5,082.35 WAC
21.18 AAC
21 AAC
5
225A
5,400 WDC
6,352.94 WAC
26.47 AAC
26 AAC
Table 7.0 – Conversion from DC to AC Limit for 1 to 5 PHI 3.8 kWh 48V Batteries (34A DC limit per PHI battery)
A
B
C
D
E
F
# of Parallel
Batteries
DC Current
Limit
ADC x VDC (48)
WDC ÷ Charger
Efficiency (85% = .85)
Column D ÷ Inverter
Voltage (120 or 240
VAC, dep. on inverter;
240 VAC used below)
Round down (only
whole #s can be
used as input)
1
37.5A
1,800 WDC
2,118 WAC
8.82 AAC
8 AAC
2
75A
3,600 WDC
4,235 WAC
17.65 AAC
17 AAC
3
112.5A
5,400 WDC
6,353 WAC
26.47 AAC
26 AAC
4
150A
7,200 WDC
8,471 WAC
35.29 AAC
35 AAC
5
187.5A
9,000 WDC
10,588 WAC
44.12 AAC
44 AAC
