Installation manual

Simplicity 64 & Simplicity 126 INSTALLATION MANUAL.
Approved Document No: GLT.MAN-107
Issue : 1.04 Authorised: GH Date: 05/10/2004
PAGE 9

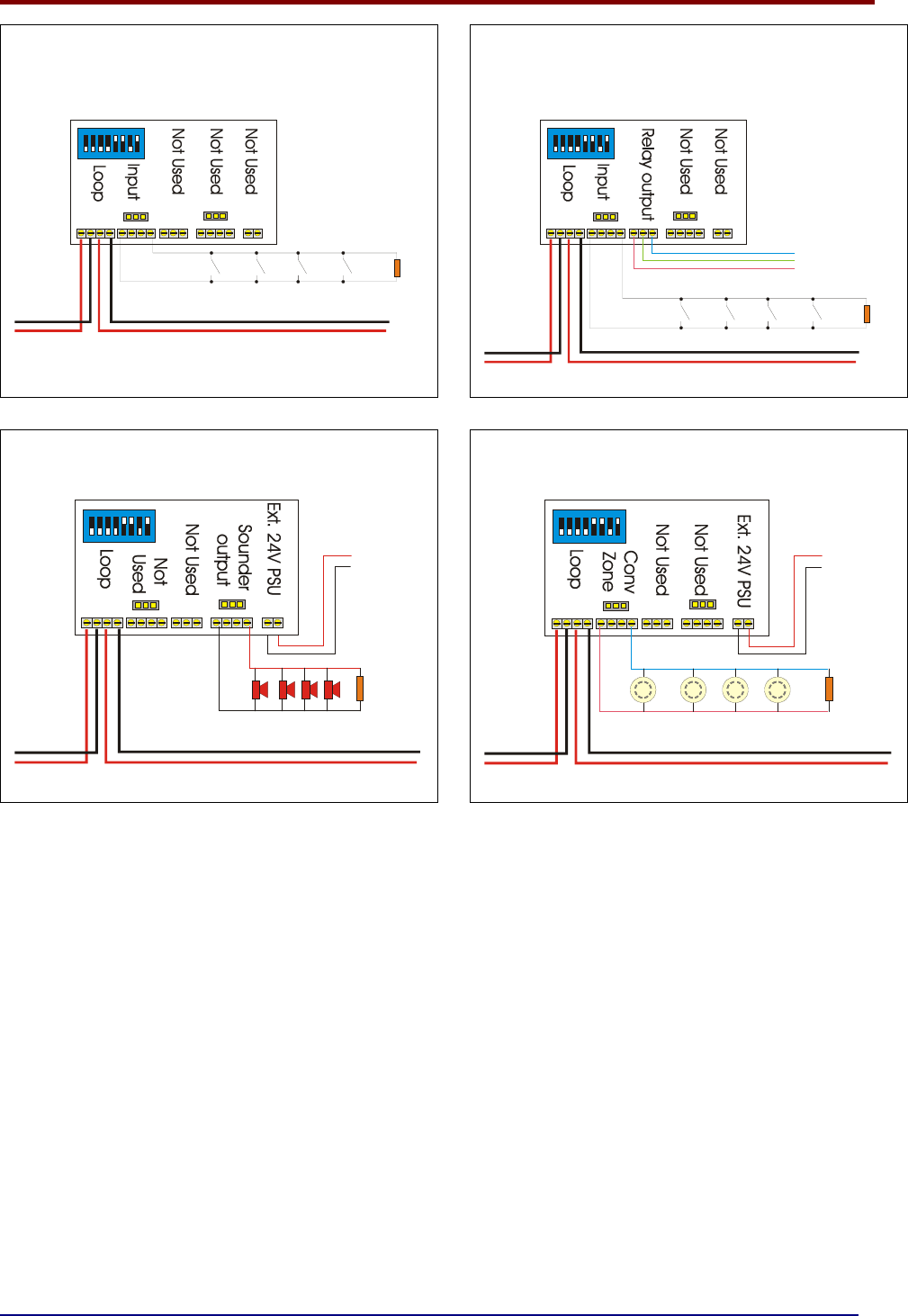

Zeta Input Unit
ZIU
48-100
+ +
- -
47K EOL 0.5W
LOOP + IN LOOP + OUT
LOOP - IN LOOP - OUT
Zeta Sounder Controller Circuit
ZSCC
48-110
24 Volt
Supply
+ +
- -
LOOP + IN LOOP + OUT
LOOP - IN
LOOP - OUT
47K End of
Line Resistor
+ +
--
Zeta Input Output Unit
ZIOU
48-105
+ +
- -
47K EOL 0.5W
LOOP + IN LOOP + OUT
LOOP - IN
LOOP - OUT
N/O
N/C
CM
Zeta Zone Monitoring Unit +1A PSU
ZT-ZM
48-115
+ +
- -
LOOP + IN LOOP + OUT
LOOP - IN
LOOP - OUT
47K End of
Line Resistor
24 Volt
Supply
+
-
(
Refer to device instructions for exact wirin
g
information
)
