8. DESIGNING THE SYSTEM & CONFIGURING THE FACP
Configuring the Simplicity is a fairly straightforward matter. It just takes a bit of thought to
zone allocation during the system design stage.

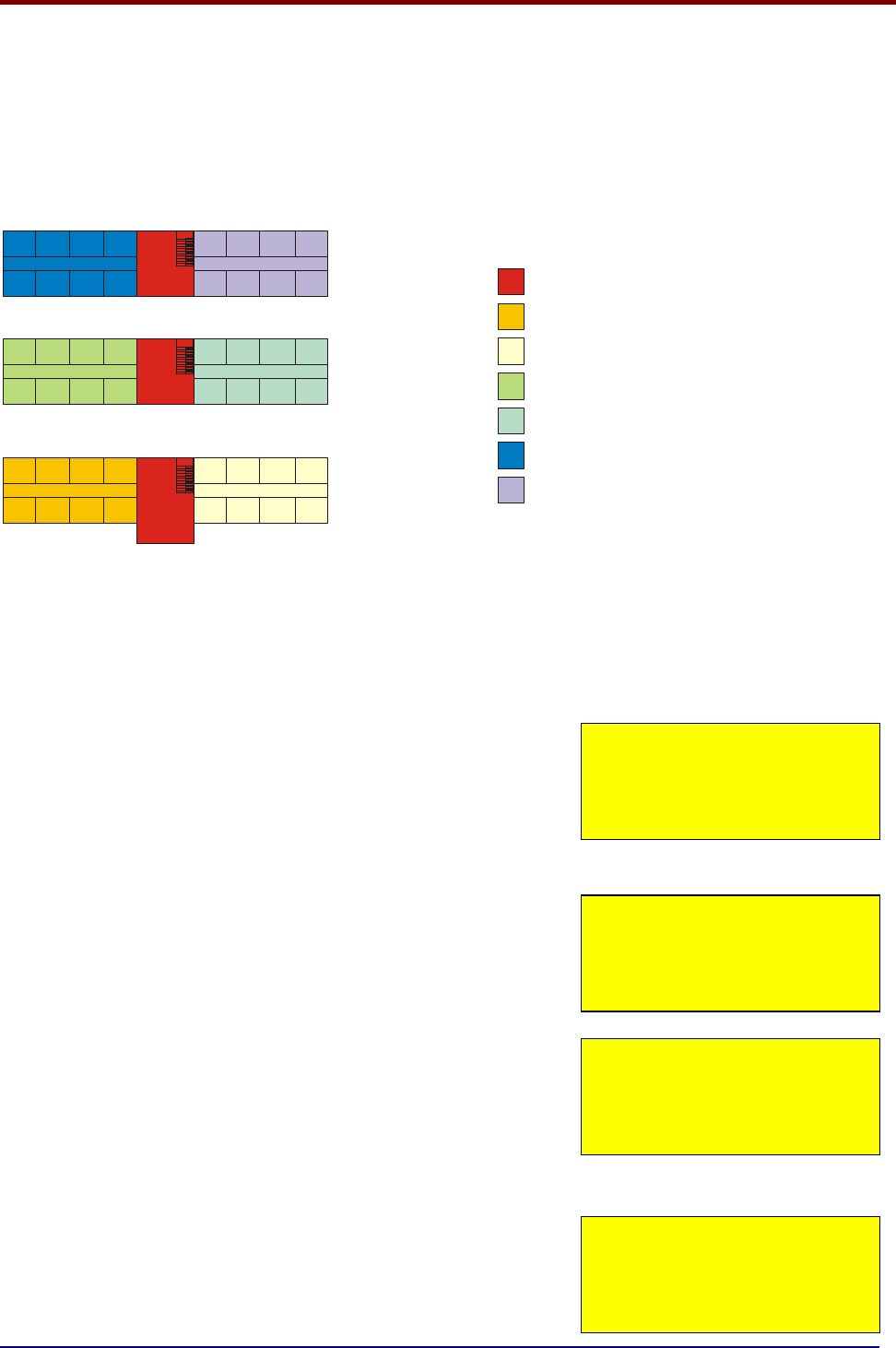

1. Decide on the zone allocation for the system. Each zone can have a maximum of 16
devices fitted. Consider the simplified 3-storey building below.
GROUND FLOOR
FIRST FLOOR
SECOND FLOOR
ZONE 1: DEVICE ADDRESS 1 TO 16
ZONE 2: DEVICE ADDRESS 17 TO 32
ZONE 3: DEVICE ADDRESS 33 TO 48
ZONE 7: DEVICE ADDRESS 97 TO 112
ZONE 4: DEVICE ADDRESS 49 TO 64
ZONE 5: DEVICE ADDRESS 65 TO 80
ZONE 6: DEVICE ADDRESS 81 TO 96
(Note that a Simplicity 64 can only have 4 zones, so would not be suitable for the
above system)
2. Sounder operation. On the Simplicity Panels, all sounders are common acting. That is,
an alarm signal from any device will activate all sounders. If you require any kind of zonal
sounder operation, ask your dealer about the premier AD & Premier AL Fire Alarm Panels.
3 After the system has been installed, and the cabling
checked and the addresses of each device set, connect
the loops to the fire alarm panel and power up the system
(mains & batteries). It should say “system normal, and only
the green Power LED will be lit. There will be the letter
“B” in the bottom left hand corner. This stands for Benign,
or controls OFF.
4. Turn the keyswitch to the Controls Enabled Position.
The Letter “B” will now change to an “A”, for controls
Active.
5. Enter the access code 3 6 9. This will take you to the
configuration menu. In this Menu there are options to
view loop contents, configure the panel, edit the device
message, or view the status of each device. The Covered
option will exit from the menu, and return the panel to
normal operation.
6. Select Option 3 (Configure). The panel will say
Configuration in progress please wait.
This takes around 20 seconds.
Fire Alarm Panel
To EN54 pt2 & pt4
System Normal
B
Fire Alarm Panel
To EN54 pt2 & pt4
System Normal
A
Configuration Menu
1:Lp1 Dev 4:Messages
2:------- 5:Dev Stat
3:Config 6:Covered
Configuration in
Progress
Please Wait
