Troubleshooting, Adjustment, & Service

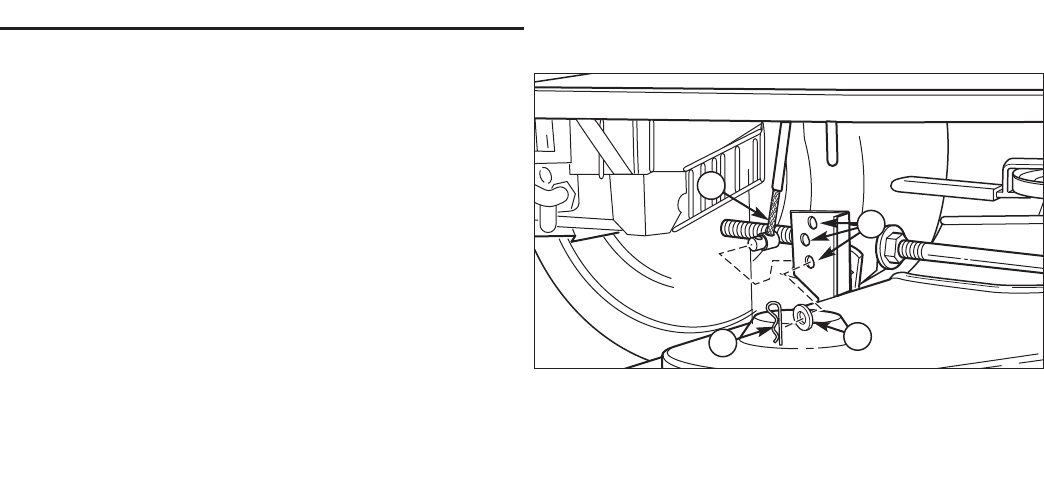

Figure 49. Cutting Height Adjustment
A. Lift Cable & Pin
B. Lift Holes
C. Hair Pin
D. Washer
D
A
C
Lift Link Adjustment (Early Models
Only)
The lift link can be adjusted up to raise the transport
height of the mower deck, or lowered to increase the
amount of below-ground mower travel. The link should
be adjusted so that the attachment lift control in the
transport height position the rollers are off the ground.
1. Remove the hair pin (C, Figure 49) and washer (D)
from lift cable & pin (A).
2. Place the lift cable pin (A) in one of the three holes,
lower, center or upper.
3. Place the lift cable & pin (A) into lift hole (B). Install
washer (D) and hair pin (C).
Note: Both sides must use the same hole for proper deck
leveling.
