Chapter 3 - Quick Setup
This section is subdivided into three parts:
• Sections 3.1 and 3.2 contain the setup procedures.
• Section 3.3 provides a description of the power saving feature.
NOTE: A single PowerGrid 9020 unit and Ethernet cable are required for each
device (e.g. PC, modem/router) you wish to connect to the network.
3.1 Internet Connection
These steps show how to connect a PowerGrid 9020 unit to a modem or router.
1. Turn on your modem or router.

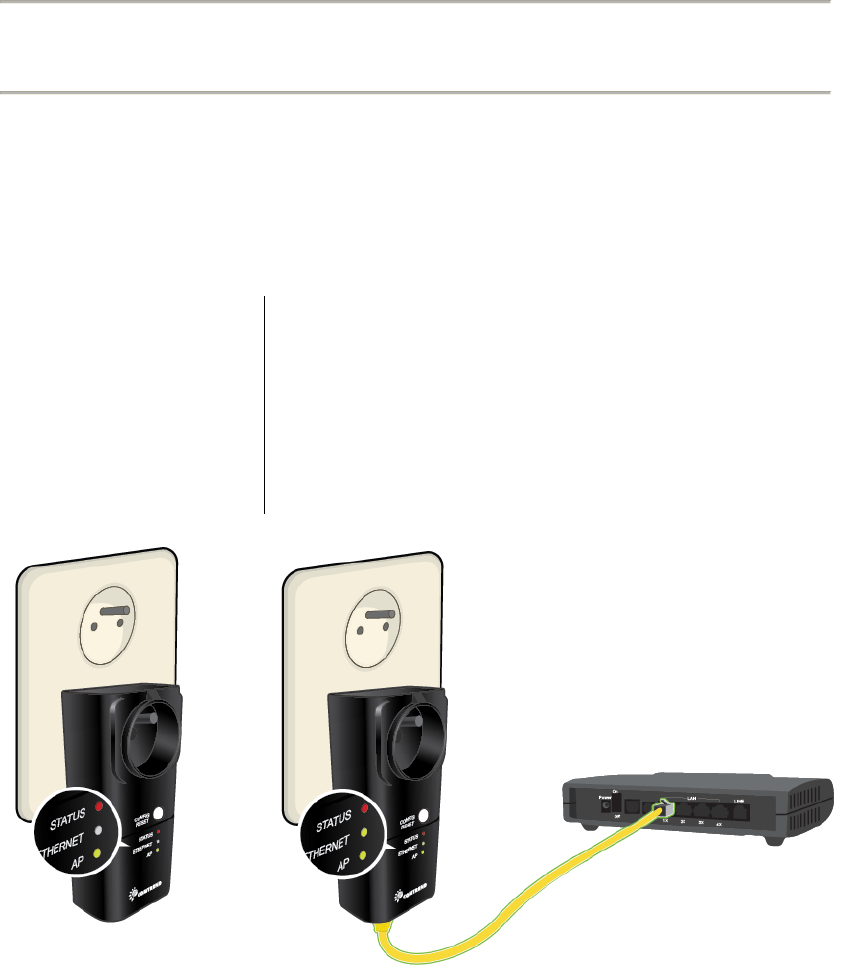

2. Plug a PowerGrid
9020 unit into the
power socket closest
to the modem/
router. The STATUS
LED on the front
panel of the
PowerGrid 9020
should light up RED.
3. If the AP LED is GREEN continue to step 4. If not,
go back to step 2 and try the other PowerGrid 9020
unit.
4. Connect the PowerGrid 9020 unit to the LAN port of
the modem/router with an Ethernet (RJ-45) cable.
The Ethernet LED on the unit should light up
GREEN.
