User manual

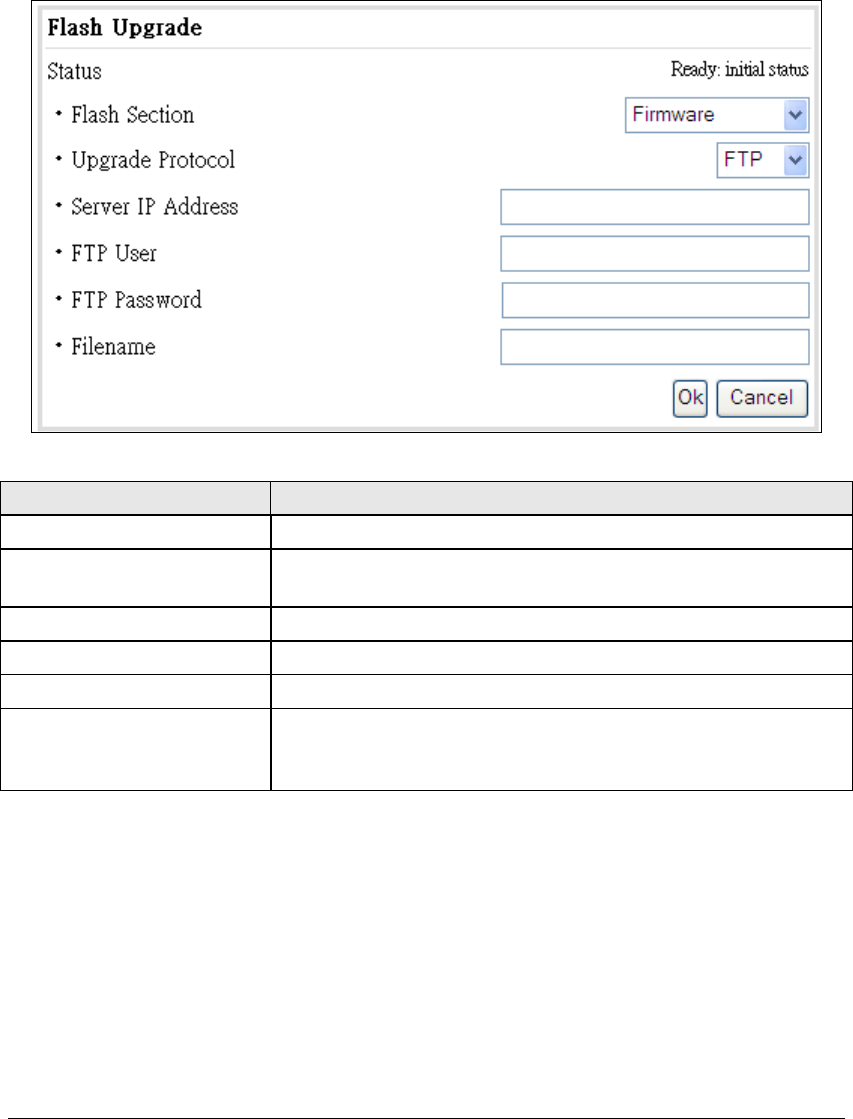

Field

Description

Status

Reports the current status of the flash upgrade.

Flash section Choose Firmware, Loader, NVRAM, DSP, Analog

Symbols or Factory settings.

Upgrade Protocol

Choose FTP, TFTP or L2 protocol.

Server IP Address

Input the IP address of the FTP or TFTP server.

FTP User and Password

Input the user name and password if required

Filename

This is the filename of the flash upgrade on the

server. The firmware and loader have .bin extensions,

while factory settings are stored as .cfg files.

PROCEDURE:

STEP 1: Choose a Flash Section (File Type) to upload.

STEP 2: Choose FTP, TFTP or L2 upgrade protocol.

STEP 3: Enter the Server IP Address.

STEP 4: For FTP only, enter User name and Password.

STEP 5: Enter the Filename with file extension

STEP 6: Click OK. The PowerGrid 9020 will attempt to download the file.

Warning! Do not interrupt the download progress once it has started! The flash

memory will become corrupt and the device will be disabled. In this

case, you will need to contact your supplier for technical support.

STEP 7: Once the file has successfully downloaded. Click Hardware Reset. The

PowerGrid 9020 will reboot and then load the new flash section. The

browser should refresh to the WUI login screen (pg. 17).

Explanations of the various status messages are provided in the table below.
