STEP 7: Close the previous two windows. Since you made changes, click OK,

but not Cancel! You then must wait for the LAN connection to reset.

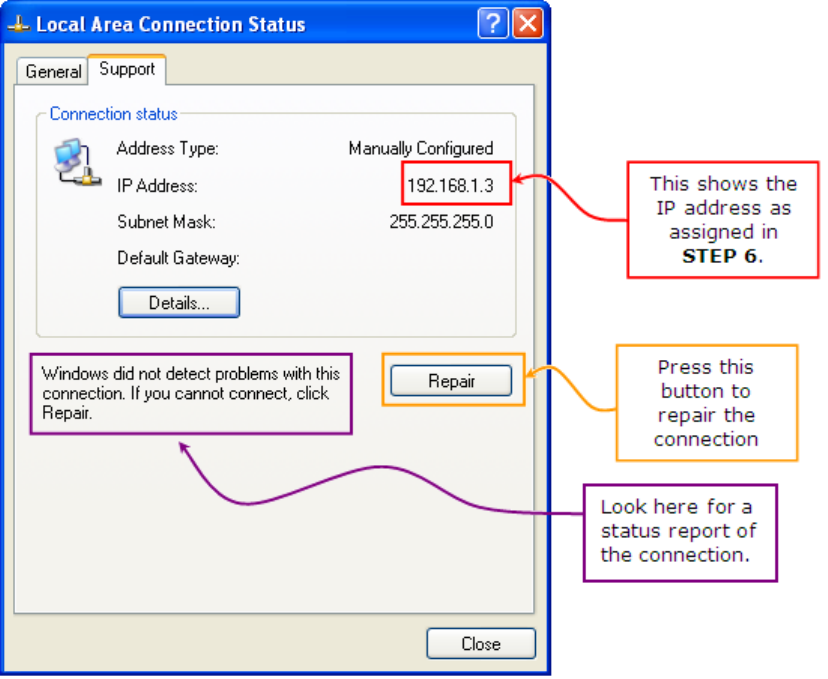

After the connection recovers, you should check the connection status on the

support tab of the Local Area Connection Status dialog box, as shown below.

5.1.2 Isolation

Now that the IP configuration of the computer is complete, we will proceed by

isolating the PowerGrid 9020 unit you wish to access. This is required since every

unit on the network is configured by default with the same Fixed IP address.

STEP 1: Relocate the PowerGrid unit you wish to access to a power jack nearby

your computer and then connect the Ethernet cable from your computer

(or network hub) to this PowerGrid unit.

STEP 2: Unplug every other PowerGrid unit from its power jack.

When you have finished using the WUI, return the PowerGrid 9020 unit to its

previous location, reset the IP configuration of the host computer, and press the

Repair button again to return your system to its previous condition.
