User's Manual

SDB680 – INSTALLATION GUIDE TNM-I-E-0046
Aug 14 Page 31 CONFIGURATION TIER III BASE
5.1. Install the SDMT software in accordance with Section 1.2 – Software Installation.
5.2. Prepare the SDMT software for use in accordance with Section 2.2 – SDMT
Preparation.
5.3. Create or establish a connection to a suitable Microsoft SQL Server database in
accordance with Section 2.2.3 – Database Connection.
4.4 INSTALLING THE SIMOCO IP CONFIGURATION SERVER
6. Refer to the Simoco IP Configuration Tool User Manual [3] and install the Simoco IP
Configuration Server software in accordance with Section 1.3 – Software Installation.
7. After installing the Simoco IP Configuration Tool software, ensure that the PC on which the
software is installed is connected to the Ethernet switch via a CAT 5 Ethernet cable.
4.5 IP ADDRESS CONFIGURATION
8. On the PC, start the Simoco IP Configuration Tool.
9. If the PC has more than one IP address or Network Connection, when the IP Configuration
Tool is started, the Interface Selection screen will be displayed (see Figure 12 below).

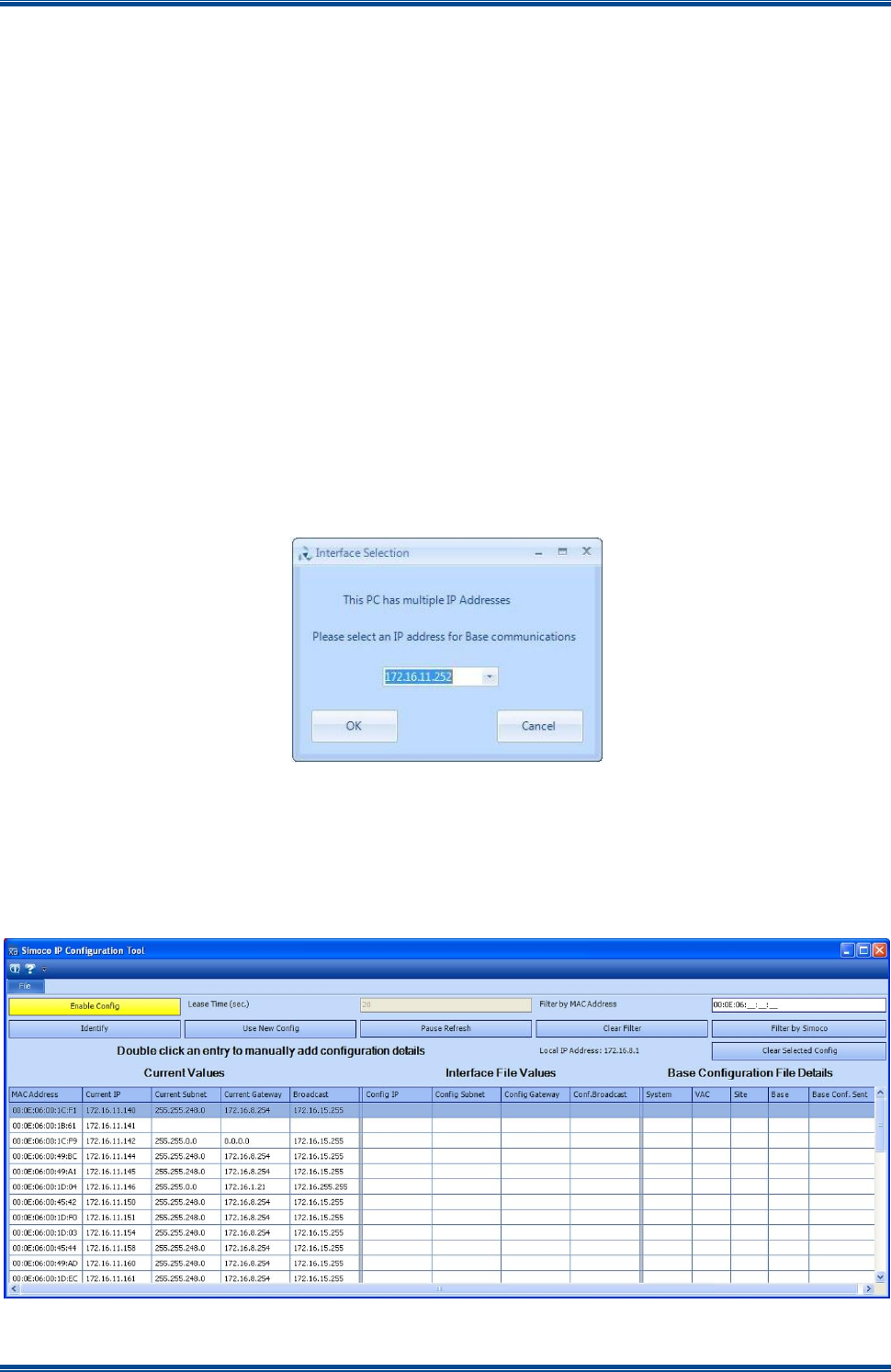

Figure 12. Interface Selection screen.
10. On the Interface Selection screen, select the relevant IP address that is to be used for
communicating with the base station(s).
11. Once the IP address has been selected the Simoco IP Configuration Tool main screen will
be displayed (see Figure 13 below).
Figure 13. IP Configuration Tool main screen
