SDB680 – INSTALLATION GUIDE TNM-I-E-0046
Aug 14 Page 21 WALL MOUNT INSTALLATION

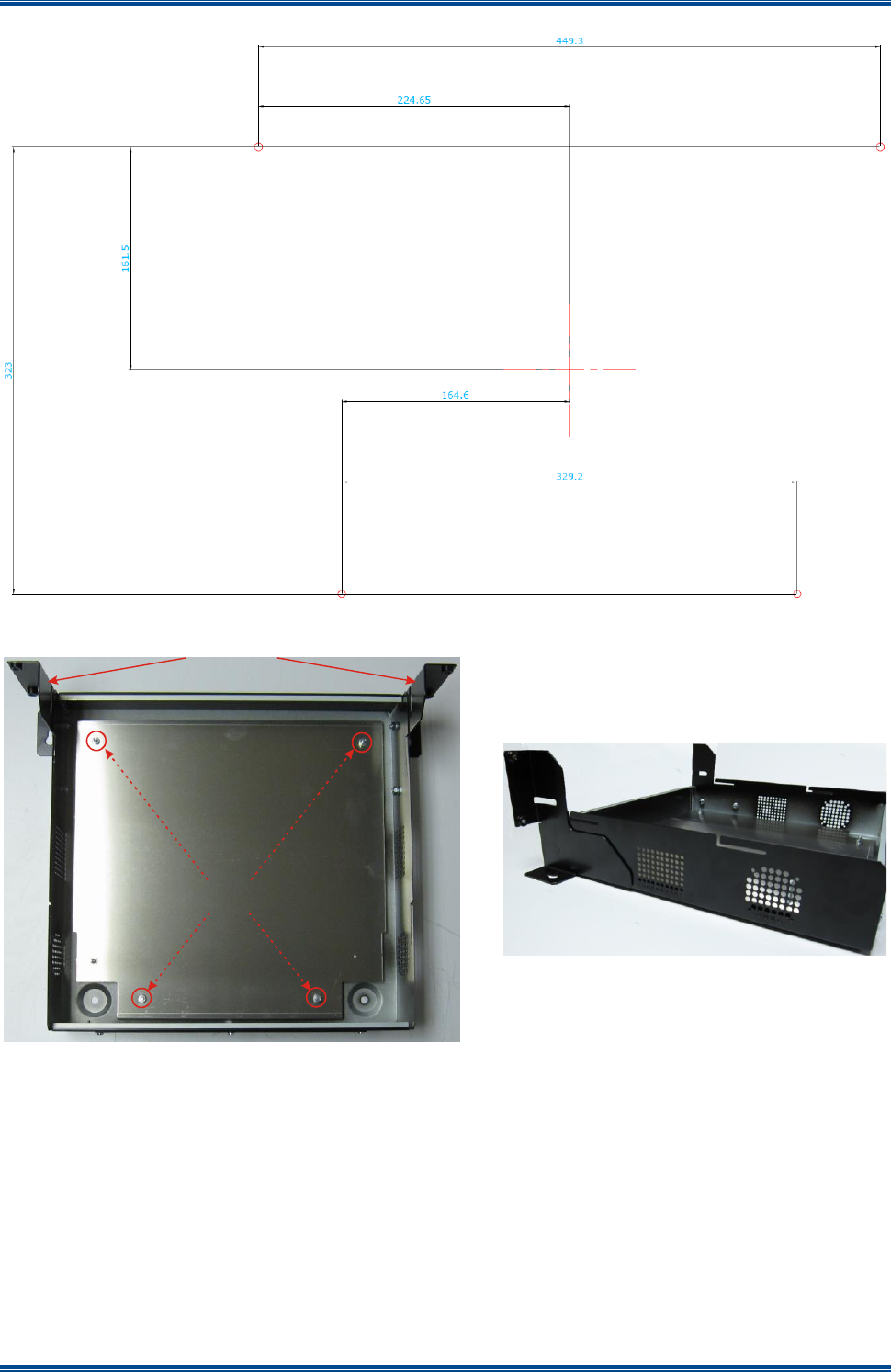

Figure 3. Mounting holes drilling template (dimensions in mm).
Figure 4. Wall Mount Assembly.
1.2 FITTING THE SDB680 BASE STATION
10. Ensuring that all cables are clear of the mounting position and cannot be trapped, offer the
base station up to the wall mount unit and fit the four keyhole standoffs on the base station
(two per side) into the mounting grooves on the wall mount case (see Figure 5 overleaf for
details).
11. Secure the front panel of the base station to the wall mount brackets using four M6 x 12 mm
pozidriv retaining bolts with plastic cup washers (two per side) (see Figure 6 overleaf).
Inner Chassis Plate
securing points
Wall Mount Brackets
