Attach Meter Index to IMU (cont.)

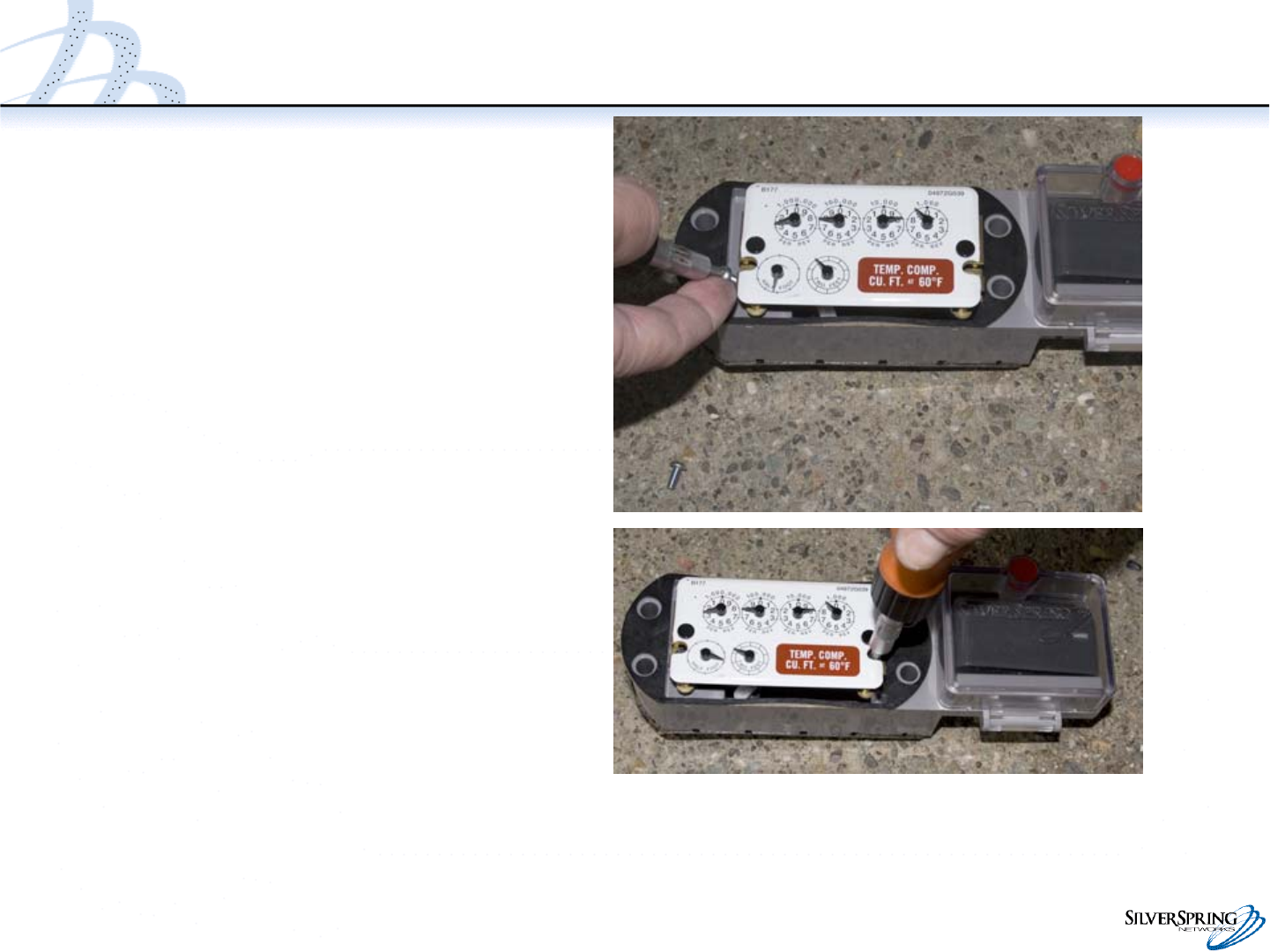

• Use the two index screws
to firmly attach the index
to the IMU.
• Torque:
– Rockwell: 13-15 inch pounds
– American: 14-17 inch pounds
• Rotate the IMU drive train two turns,
clockwise or counter-clockwise
to ensure it spins freely.
