Installation guide

2
Package Contents
• DP SATA II PCIe RAID
• Spare enhanced low profile bracket
• 2 Serial ATA data cables
• Dual-connector Serial ATA power cable
• Driver software CD
• Quick installation guide
Layout

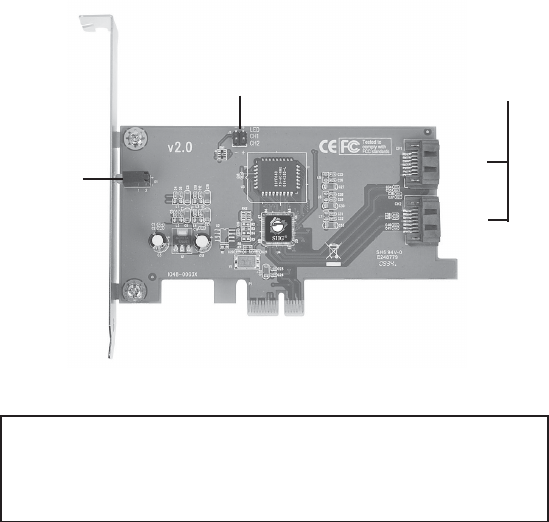

Figure 1. DP SATA II PCIe RAID Layout
* Note: Connect the hard disk drive activity LED
of the system case to the pins horizontally. This
connection is optional.
CH1
CH2
Hard Disk
LED Pins
(optional)*
HDD Activity
LED
Serial ATA
Connectors
