DOOR HANDLE AND LOCK SET

INSTALLATION INSTRUCTIONS

Before you begin, read the installation instructions below. Observe all local building and safety codes. For the following

installation instructions it is assumed that holes for the handle and lock set are pre-drilled.

Unpack and inspect the product for any shipping damages and ensure that none of the required pieces are missing. If

you nd damages, do not install. Contact Customer Service at 1.866.855.2284. If you need assistance or have questions

while installing your door handle and lock set, contact Customer Service.

We recommend consulting a professional if you are unfamiliar with installing hardware xtures. Signature Hardware

accepts no liability for any damage to the handle, lock set, or door, or for personal injury during installation.

TOOLS AND MATERIALS:

IMPORTANT INFORMATION

The following instructions assume the door and door frame have pre-drilled holes that t the new deadbolt and lock set

hardware.

DEADBOLT INSTALLATION

Safety glasses

Screwdriver

Wood chisel

Drill

1. Adjust hardware for the backset, if necessary. The backset

is the distance from the edge of the door to the center of the bore

hole. If your new latch bolt hardware accommodates different

backsets, adjust it to t your door.

2. Fit the latch bolt into the door. Insert the latch bolt of the

deadbolt into the edge of the door. If the attached faceplate is

not ush with the door, carefully chisel out (mortise) some of the

door. The mortise in the edge of the door allows the attached

faceplate to lie ush with the door.

3. Secure the faceplate. Mark the positions for the faceplate

pilot holes. Drill pilot holes, if necessary. Secure the faceplate to

the door with screws.

4. Install the cylinder and thumb lever. Test t the cylinder and

thumb-turn plate so you’ll know how the pieces t together. Fit

the exterior deadbolt hardware rst, then the interior hardware,

making sure to align the holes and screw guides. Insert and

tighten the long screws from the inside. Hold the interior knob of

the deadbolt in place, and tighten the small screw to secure it in

place.

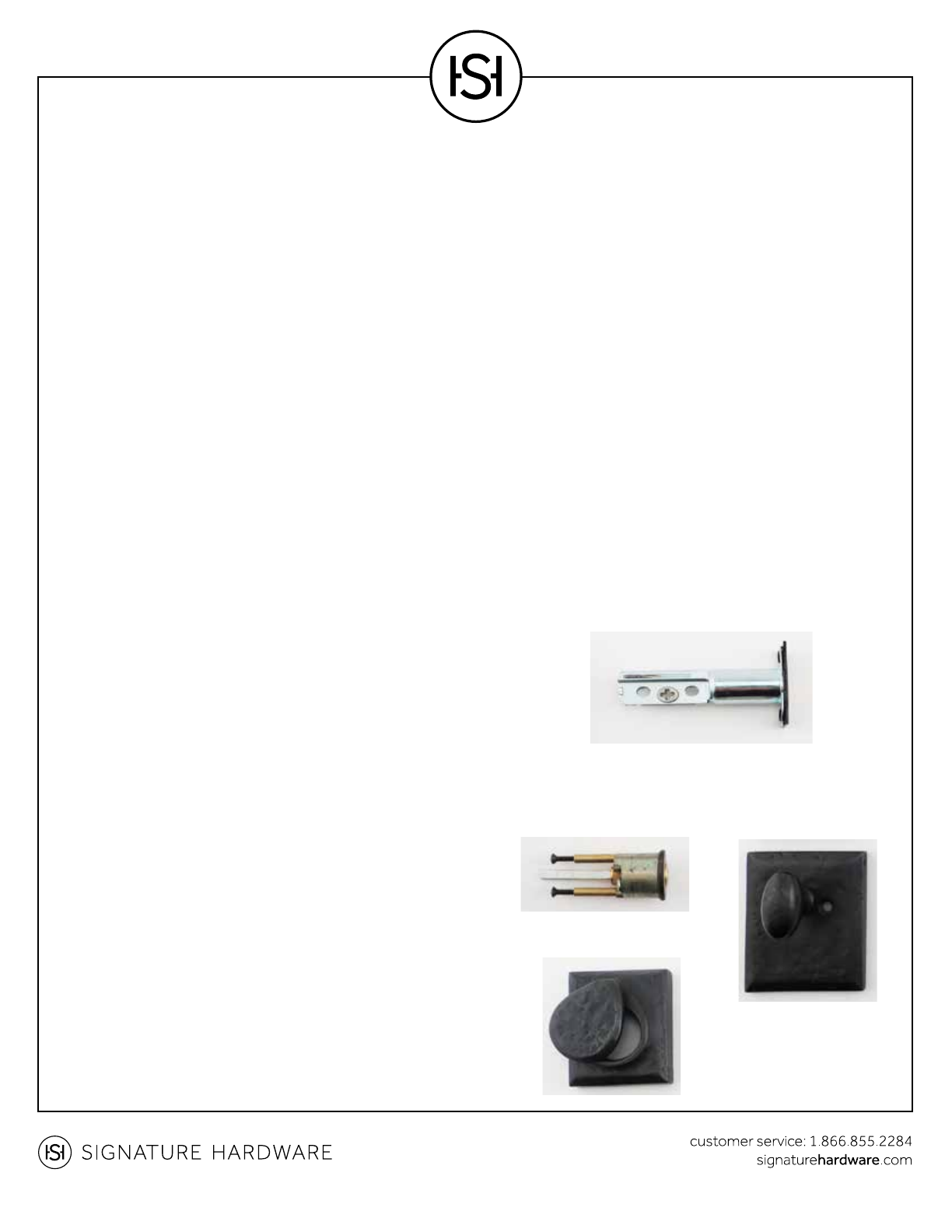

Latchbolt and Faceplate

Cylinder

Thumbturn Plate

Exterior Cover

PAGE 1
DOOR HANDLE AND LOCK SET INSTALLATION INSTRUCTIONS Before you begin, read the installation instructions below. Observe all local building and safety codes. For the following installation instructions it is assumed that holes for the handle and lock set are pre-drilled. Unpack and inspect the product for any shipping damages and ensure that none of the required pieces are missing. If you find damages, do not install. Contact Customer Service at 1.866.855.2284.
PAGE 2
5. Install the strike plate. Mark the end of the bolt with lipstick or paint. Close the door, and turn the deadbolt several times to mark the door frame. If necessary, mortise the area around the hole so the strike plate will fit flush with the door frame. Secure the strike plate to the door frame with screws. Strike plate DOOR KNOB OR HANDLE INSTALLATION 1. Adjust hardware for the backset if necessary. The backset is the distance from the edge of the door to the center of the bore hole.
