DC Offset

Set the DC voltage level.

To Shift into the Arbitrary Waveform Output

1. Press Utility →DC→DC Off, to close DC output and return to arbitrary

waveform output.

2. Press any functional button, and the waveform output setting turns into

the arbitrary waveform output. The DC output is turned off automatically.

To Set IO

Press Utility →IO Setup, to set the IO interface. The equipment stands for

RAW protocol and TMC protocol, user may setup corresponding protocol by

IO Setup.

To Set Output Parameter

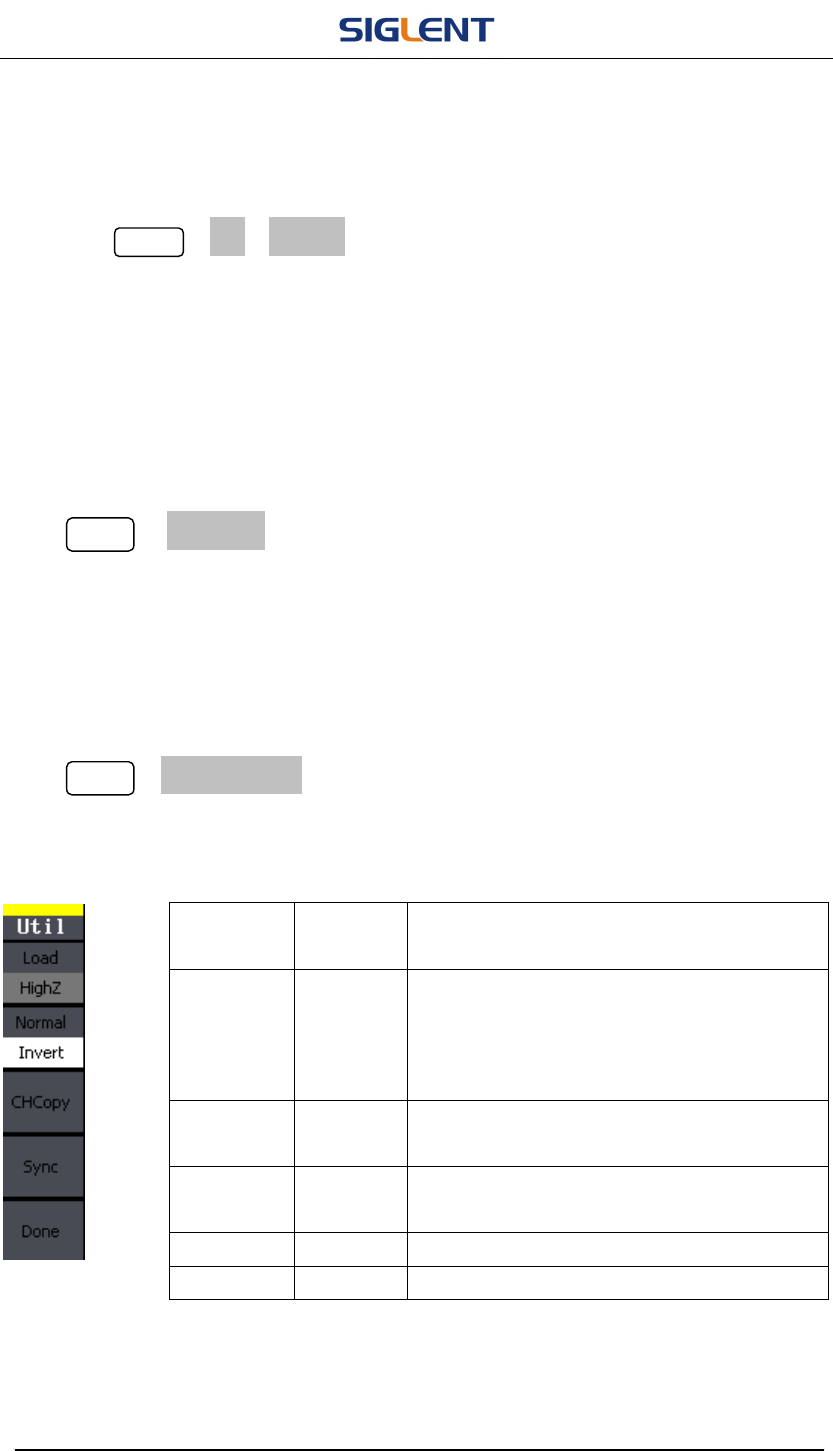

Press Utility →Output Setup, to enter the following interface.

Figure 2- 58 Table 2- 30 Menu Explanations of Output Setting (Page 1/2)

Function

Settings

Explanation

Load

HighZ

Set the load connected to the Output

Connector;

Set the load connected to the Output

Connector to be HighZ.

Normal

Invert

Normal output;

Inverse output.

Sync

Off

Open Sync output;

Close Sync output.

ChCopy Copy one channel to the other

Done Finish operation.
