2.11. To Set the Utility Function

With the Utility Function, you can set the parameters of the generator such as:

DC On/Off, Sync On/Off, Output Parameter, Interface Parameter, System

Setting and Testing Parameter. The DC switch offers the options of DC output

or Arbitrary Waveform Output. Sync Switch offers the option to choose the

Sync Signal or not. Output Setting provides the parameter setting for

Load/HighZ and Normal/Inverse. The System Setting provides the setting for

Language, Display, Beep, Screen Guard, Format, Power System Configure

and default setting; Test provides the self-testing and calibration function.

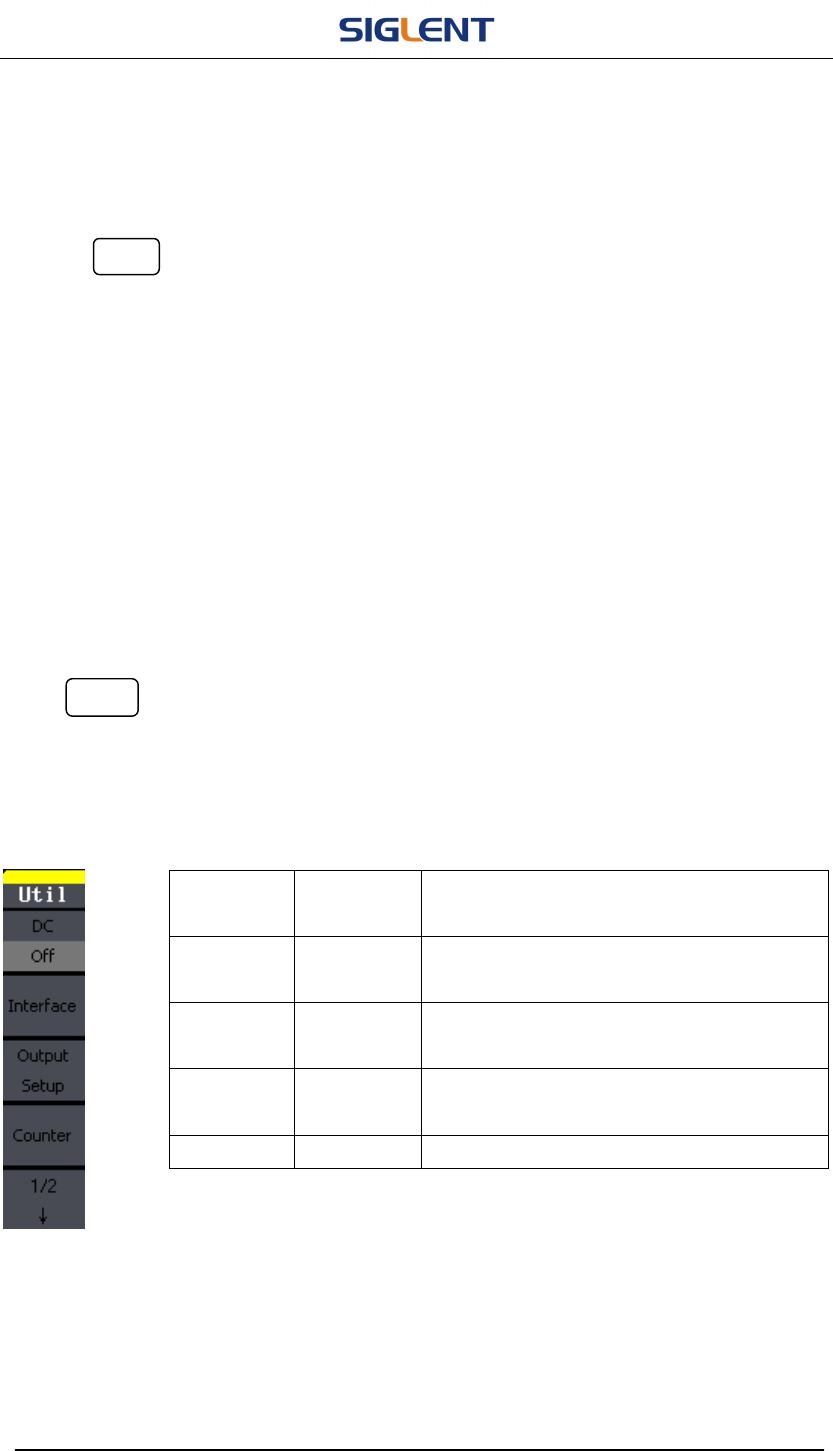

Press Utility button, to enter the Utility Menu. Its functions are listed below in

Figure 2- 55

Figure 2- 55 Table 2- 28 Menu Explanations of Utility System Setting (Page1/2)

Function

Settings Explanation

Off

Set the output waveform to be DC.

Set the output waveform to be arbitrary.

IO Setup

USB Setup

GPIB

Set USB function.

Set the GPIB address.

Output

Setup

Set the output parameter.

Count Frequency counter.
