Set the N-Cycle Burst

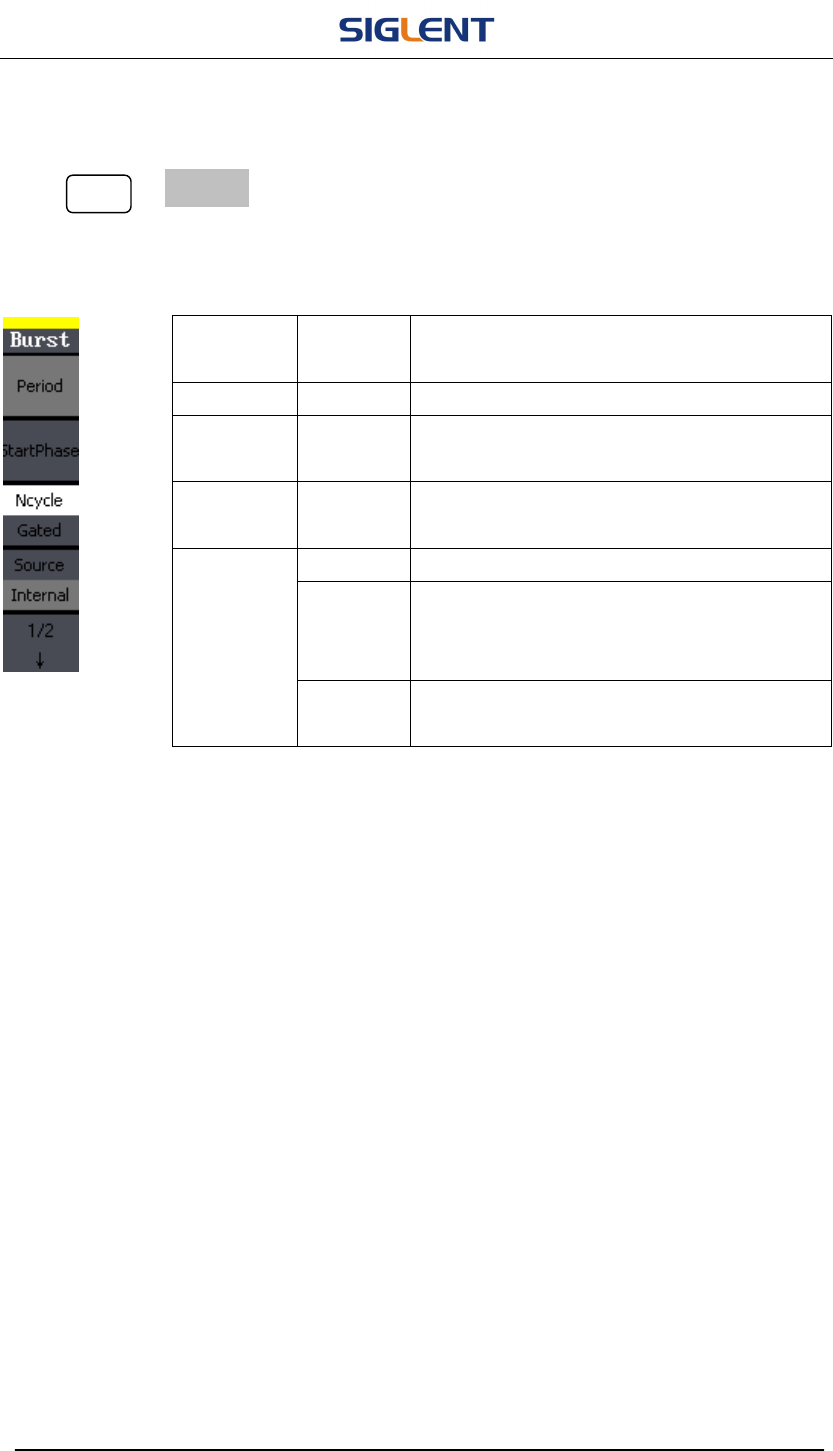

Press Burst → N Cycle, to enter the following interface.

Figure 2- 46 Table 2- 23 Menu Explanations of the N-Cycle Parameters(Page 1/2)

Burst Period

Set the time span between an N-Cycle burst and the next. If necessary the

period will increase to allow the specific number of cycles in a burst. Burst

Period>Carrier Period × Burst Number

Start Phase

Define the start point in a waveform. The phase varies from 0° to 360°, and

the default setting is 0°. For an Arbitrary Waveform, 0° is the first waveform

point.

Function

Settings

Explanation

Period Set the burst Period.

Start

Phase

Set the start phase of the burst.

NCycle

Gated

Use the N-Cycle mode.

Use the Gated mode.

Source

Internal Choose internal source.

External

Choose external source, use the

[EXTTrig/Gate/FSK/Burst] connector in the

rear panel.

Manual

Choose external source, set the start time

by hand.
