User Manual

SDG1000 User Manual 40
Table 2- 12 Menu Explanations of Project Built-in Arbitrary Waveform

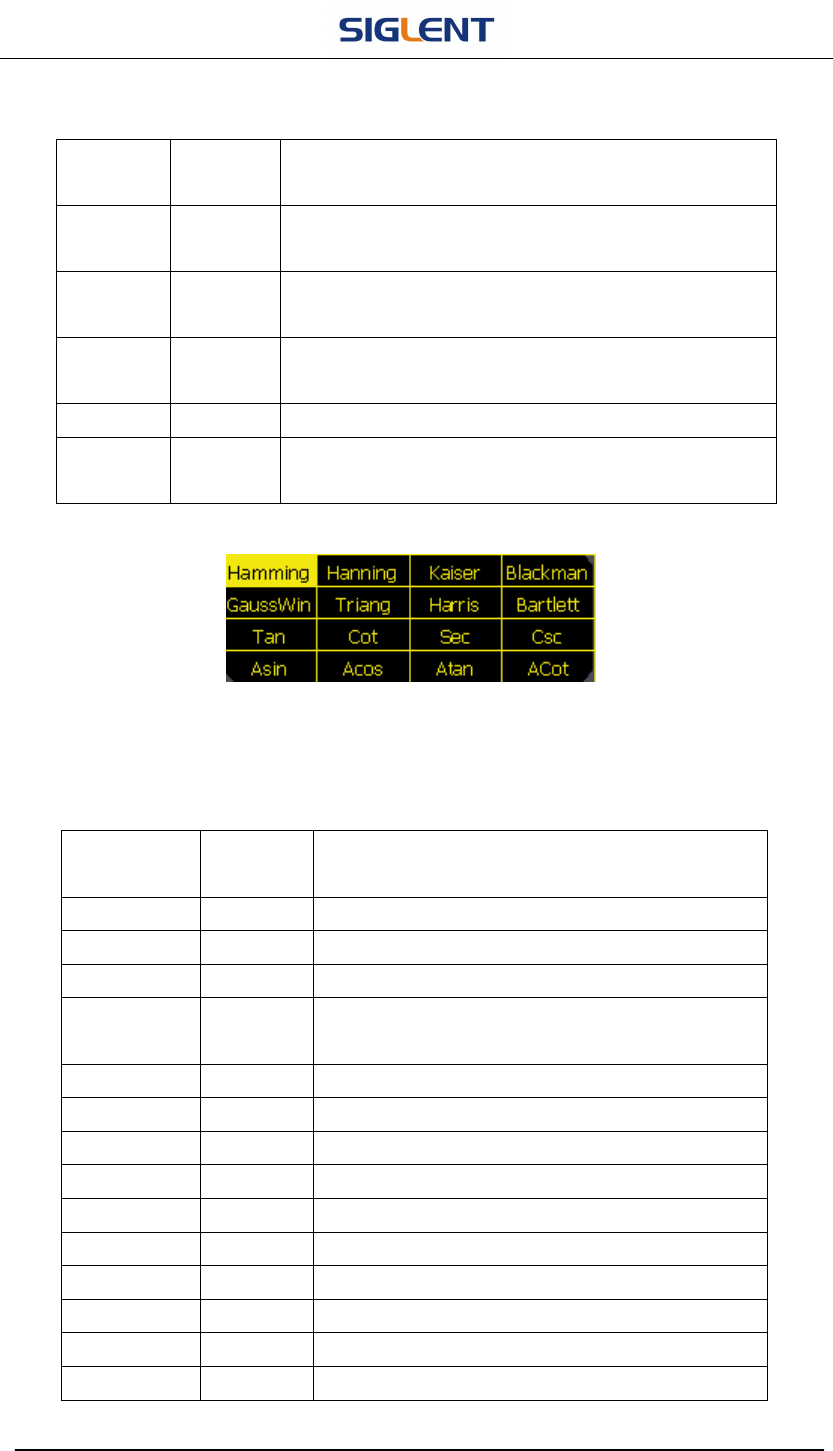

Figure 2- 26 Winfun/Triangle Built-In Arbitrary Waveform interface
Table 2- 13 Menu Explanations of Winfun/Triangle Built-in Arbitrary Waveform
Function
Menu
Settings Explanation
Cardiac
Select the built-in electrocardiogram (ECG) signal
waveform.
Quake
Select the built-in loma prieta earthquake
waveform.
Chirp
Select the built-in swept-frequency cosine
waveform.
TwoTone Select the built-in two tone signal waveform.
SNR
Select the built-in sin wave with white noise
waveform.
Function
Menu
Settings Explanation
Hamming Select the built-in hamming window waveform.
Hanning Select the built-in hanning window waveform.
Kaiser Select the built-in kaiser window waveform.
Blackman
Select the built-in blackman windows
waveform.
Gaussian Select the built-in gaussian window waveform.
Triangle Select the built-in triangle window waveform.
Hairs Select the built-in hairs window waveform.
Bartlett Select the built-in bartlett window waveform.
Tan Select the built-in tangent waveform.
Cot Select the built-in cotangent waveform.
Sec Select the built-in secant waveform.
Csc Select the built-in cosecant waveform
Asin Select the built-in inverse sine waveform.
Acos Select the built-in inverse cosine waveform.
