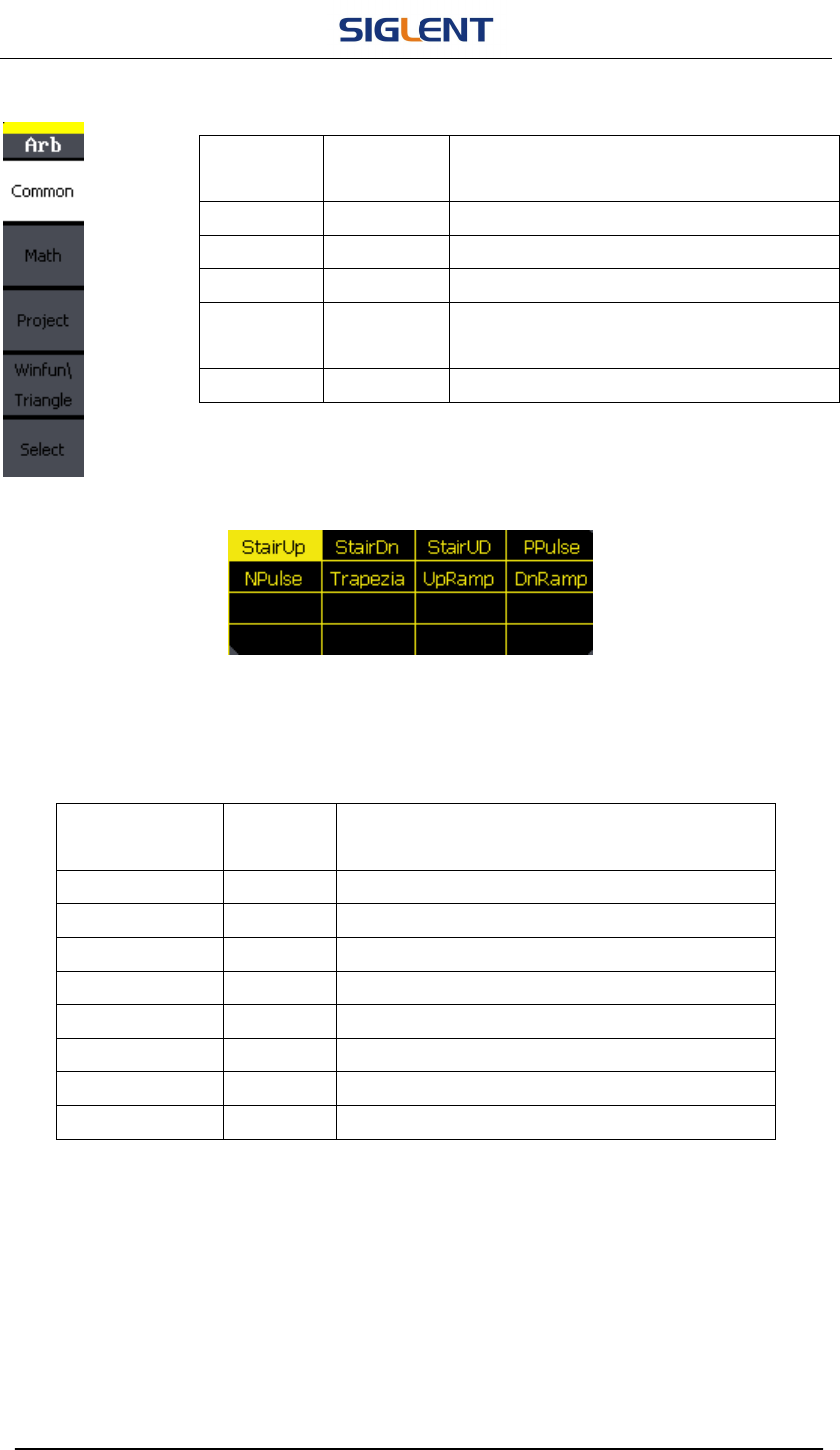

Figure 2- 22 Table 2- 9 Menu Explanations of Built-In Arbitrary Waveform
Figure 2- 23 Common Built-In Arbitrary Waveform interface
Table 2- 10 Menu Explanations of Common Built-In Arbitrary Waveform
Function
Menu
Settings Explanation
Common Select common waveform.
Math Select math waveform.
Project Select project waveform.
Winfun/
Triangle
Select windows function
/triangle waveform.
Select Validate the built-in waveform.
Function
Menu
Settings Explanation
StairUp Select the built-in stair up waveform.
StairDn Select the built-in stair down waveform.
StairUD Select the built-in stair up waveform.
PPulse Select the built-in positive pulse waveform.
NPulse Select the built-in negative pulse waveform.
Trapezia Select the built-in trapezoid waveform
UpRamp Select the built-in up ramp waveform.
DnRamp Select the built-in down ramp waveform.
