SDG1000 User Manual 97
 Set the end frequency
Press Stop Freq, Input ‘10’ from the keyboard and choose the unit ‘kHz’
to set stop freq 10kHz.
 Set the Sweep Mode
Press (1/2↓) →Linear, and choose Linear.
When all parameters above are set, the linear sweep wave generated is
shown in Figure 3- 7

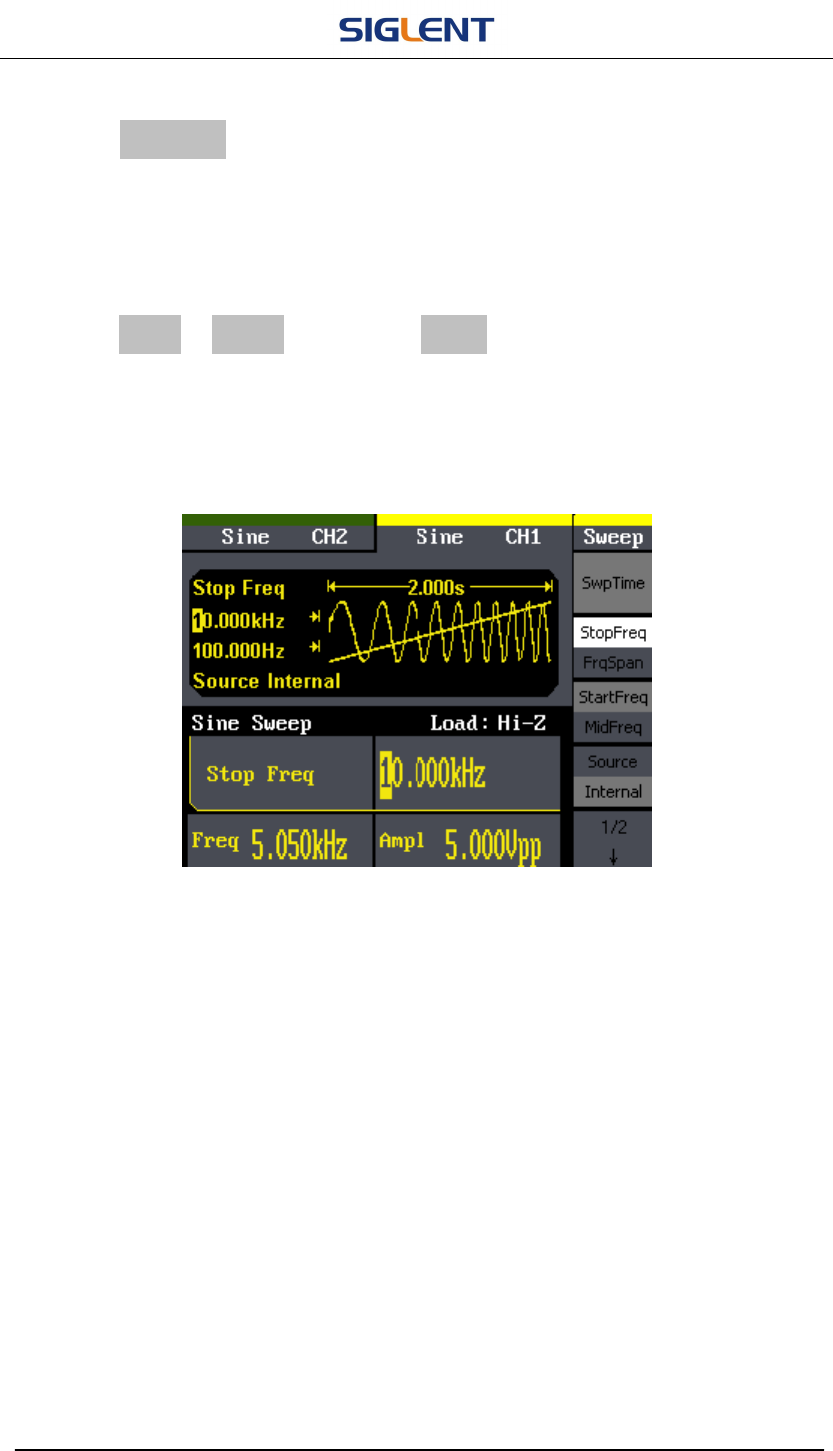

Figure 3- 7 Sweep Waveform
