SDG1000 User Manual 90
 Set the symmetry
1. Press Symmetry to choose Symmetry which will display in white color.
2. Input ‘30’ from the keyboard and choose the unit ‘30%’. The symmetry is
set to be 30%.
When the period, amplitude, offset, phase and symmetry are set, the wave
generated is shown in Figure 3- 3:

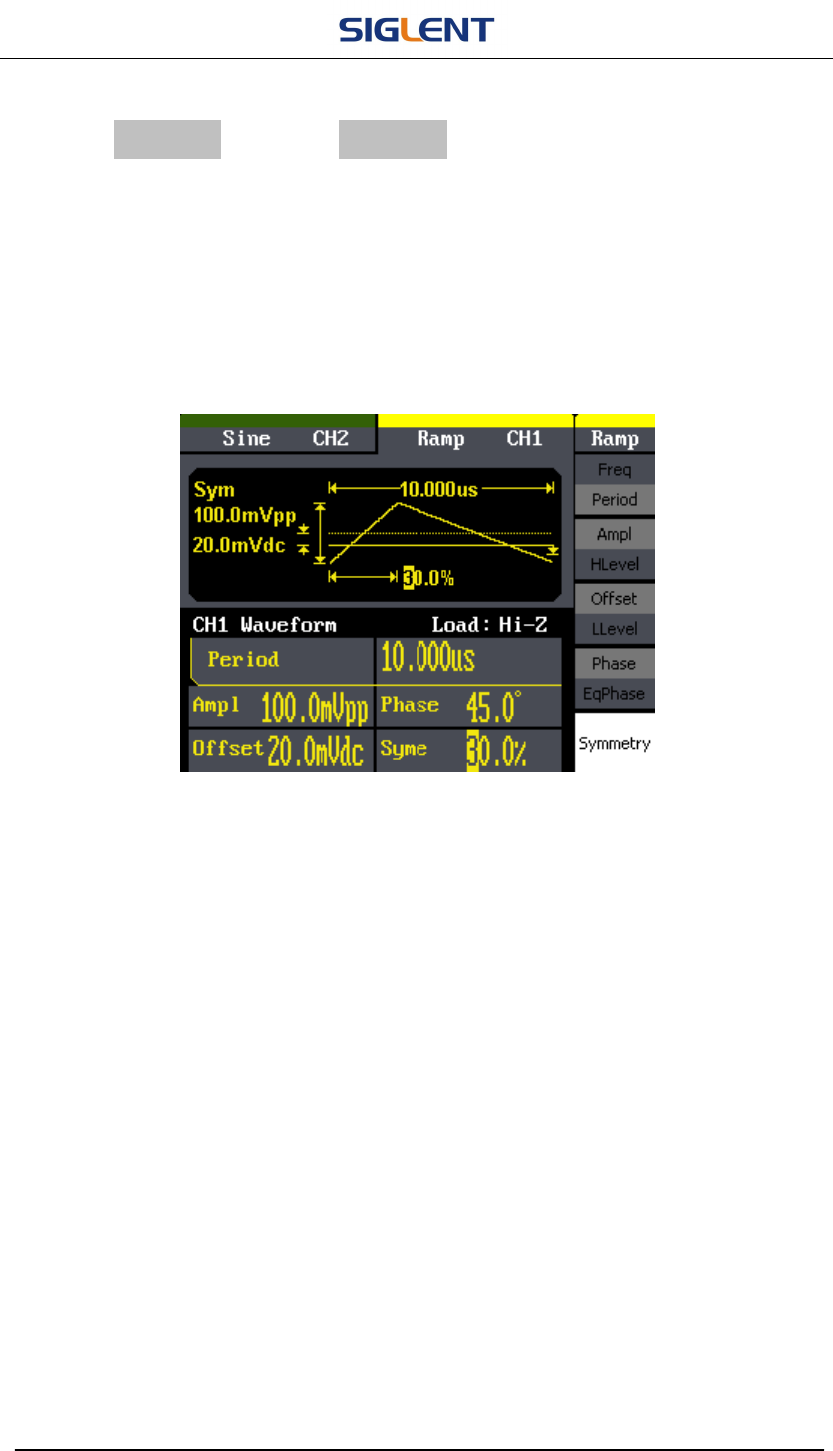

Figure 3- 3 Ramp Waveform
