7.3 Cleaning the pistol
Procedure:
1. Lubricate the cleaning brush with gun oil and
insert it into the barrel 1 via the chamber. Use
brush to carefully remove all powder residues
and dirt in the barrel and chamber.
2. Wipe powder residues and oil from the barrel
bore and chamber with cleaning patches.
3. Clean external surfaces of barrel with a brush
dipped in gun oil.
4. Remove dirt from metal guide in the frame 15,
inside and outside of slide 4 and recoil spring 3
with a brush and cleaning patch and then wipe
down with a cloth impregnated with gun oil or
gun grease.
5. Lightly oil bores of barrel and chamber.
Remove any excess lubricant.
6.
CAUTION!
Pistol may be damaged
• Never clean barrel 1 from the muzzle end
and do not use a steel wire brush as it can
destroy the smooth surface of the barrel. Use
a suitable cleaning rod and a brush of
matching calibre (see Section 11).
• Solvents can be harmful to the surface finish
of the pistol. Read the manufacturer's notes
and warnings before using solvents or
cleansers.

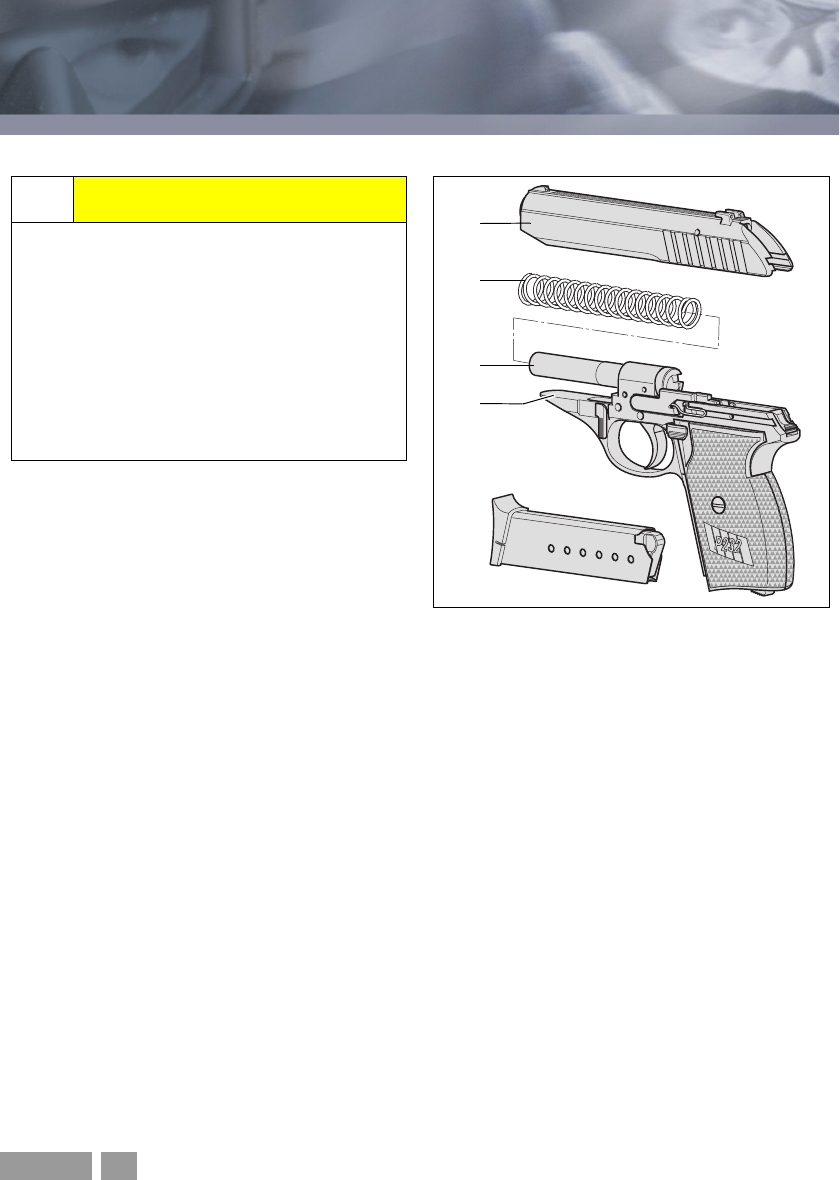

Fig. 12, stripping weapon for cleaning
4
1
3
15
