Maintenance
1607.01 GB

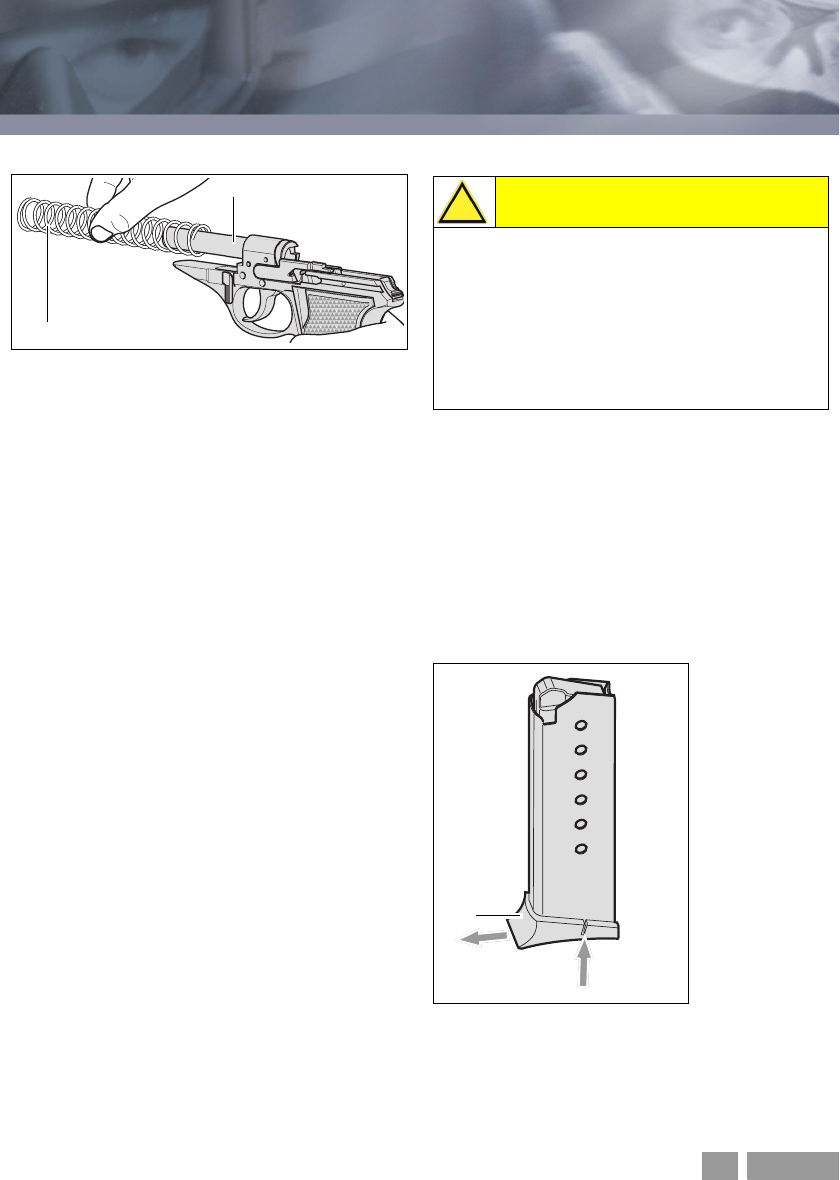

7. Pull recoil spring 3 off the barrel 1.
Note:
• This level of stripping is sufficient to allow a
thorough cleaning after shooting.
• Further dismantling of the pistol may only be
carried out by qualified armourers and
gunsmiths.
7.2 Disassembly of the magazine
Procedure:
1. Use a small screwdriver to push the lower end
of the magazine spring 52 upwards and out of
the opening in the magazine floor plate 54.
Push magazine floor plate forward and remove
it. Place one hand under the magazine to
make sure that the magazine spring does not
fall out.
2. Slowly decock the magazine spring 52, push it
downwards together with the feeder 53 and
remove it from the magazine tube 51.
Fig. 10
3
1
CAUTION!
Magazine spring is compressed
May lead to injuries and damage to the pistol
• Do not carry out any work on the pistol near
your face and hold magazine with the
magazine floor plate pointing downwards.
• When removing the magazine spring, decock
it slowly and with care.
Fig. 11, Magazine
54
1.
2.
