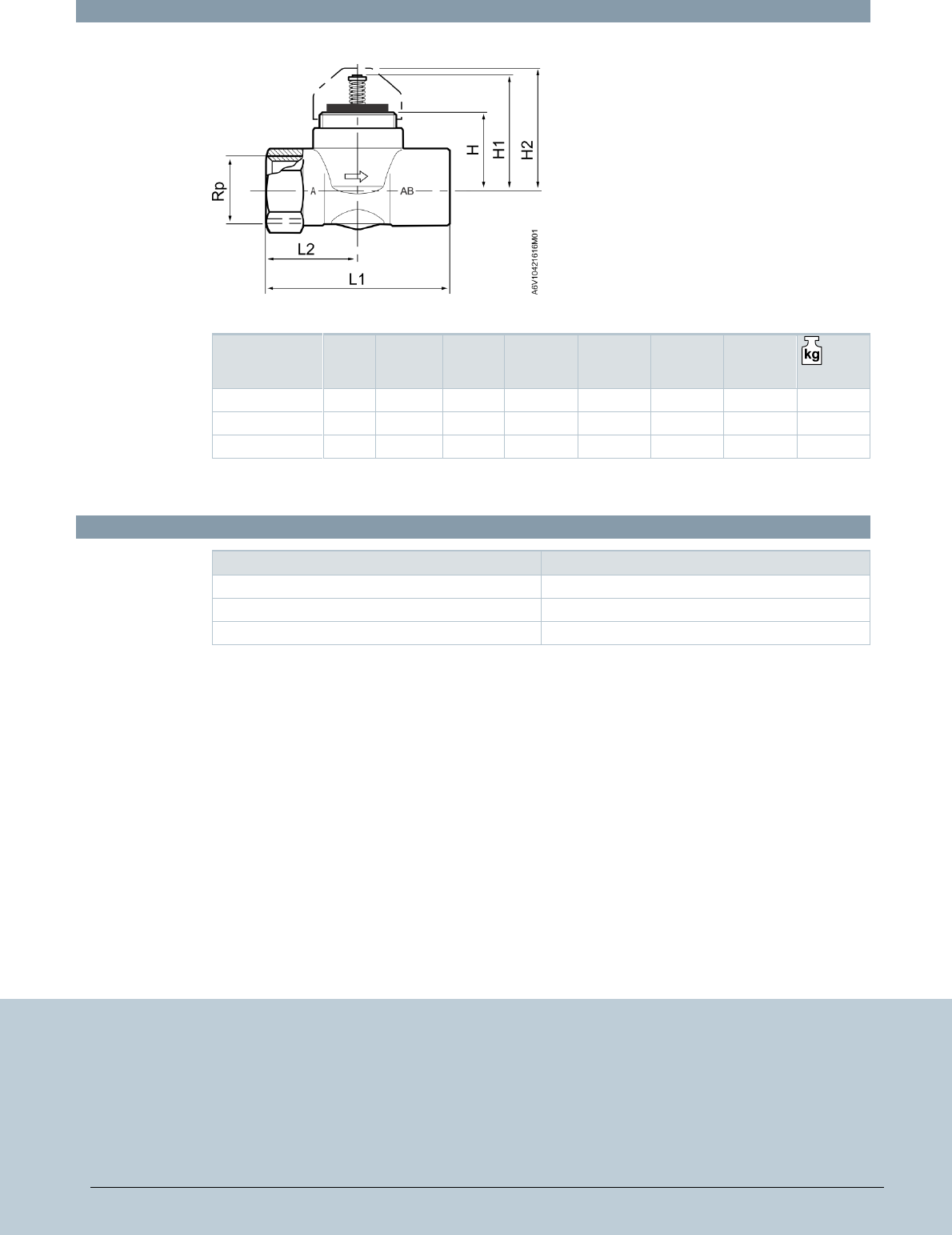

Dimensions
2-port valves: VVI46../3
Valve type
DN
Rp
[inch]
H
[mm]
H1
[mm]
H2
[mm]
L1
[mm]
L2
[mm]
[kg]
VVI46.15/3
15
Rp ½
25.4
39.6
42.4
60
30
0.17
VVI46.20/3
20
Rp ¾
25.4
39.6
42.4
65
32.5
0.20
VVI46.25/3
25
Rp 1
33
47.2
50
84
45
0.43
For seamless, round copper tubes according to DIN EN 1057.
Revision numbers
Type
Valid from rev. no.
VVI46.15/3
..A
VVI46.20/3
..A
VVI46.25/3
..A
