CM2N8030en

02.02.2005

Building Technologies

Building Automation

030

Energy Monitoring and Controlling EMC

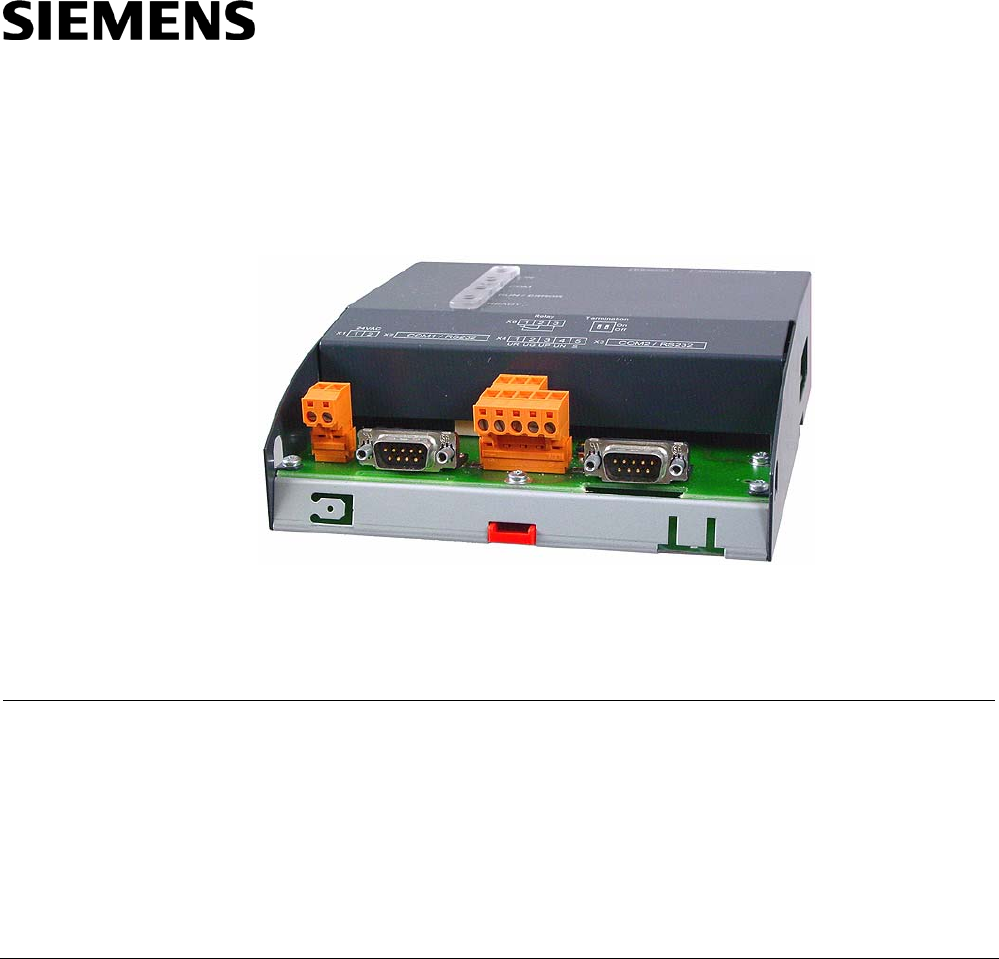

MeterProxy for VISONIK

CSV30.001

Energy Monitoring & Controlling EMC is an easy-to-operate energy management

solution allowing for effective monitoring and control of energy consumption.

In addition to manual meter reading, it is also possible to transmit energy

consumption data to EMC acquired from the BACS.

The acquired data is transferred from the VISONIK system to EMC via the

MeterProxy and then processed, analyzed and compiled into powerful energy

consumption reports in EMC.

Features

• Automated transfer of consumption or meter values from VISONIK systems to EMC.

• Flexible Internet connection via terminal channel (serial COM interface) or network

(TCP/IP).

• Flexible Internet connection via modem or network (TCP/IP).

• Easy to mount and commission.

Summary of content (8 pages)

PAGE 1
8 030 Energy Monitoring and Controlling EMC CSV30.001 MeterProxy for VISONIK Energy Monitoring & Controlling EMC is an easy-to-operate energy management solution allowing for effective monitoring and control of energy consumption. In addition to manual meter reading, it is also possible to transmit energy consumption data to EMC acquired from the BACS.
PAGE 2
Use Only continuous recording and evaluation of energy consumption opens the door to recognizing saving potential and assessing the success of optimization measures. Daily consumption figures are an absolute must to characterize a building and assess optimization measures. MeterProxy VISONIK is the necessary link between the VISONIK system and EMC energy management solution; automatically transmitting meter and consumption data.
PAGE 3
Workflow When at meter setup in EMC an automated meter is added, the MeterProxy is able to establish the connection via the meter's data point address in the VISONIK system. Data transmission is time-controlled. At the time of transmission, all present values of setup meters are recorded and simultaneously booked in EMC. Access protection Multistage password protection prevents unwanted changes to parameters or system settings in the MeterProxy. Type summary Ordering MeterProxy VISONIK ASN CSV30.
PAGE 4
The network administrator must determine the type of addressing (e.g. IT department at the customer, system technician SBT). Answer the following questions: • Does the network have automated addressing (DHCP)? • If not, which network address (TCP/IP) is available for the MeterProxy and what are the associated gateway, subnet and WINS/DNS server addresses? Internet access To book data from VISONIK systems to EMC, the MeterProxy requires Internet access.
PAGE 5
Network interface Network Status display Ethernet 10 Mbps, RJ45 LED with link display and connection activity Additional interfaces COM1 X4 X6 No function No function No function Mounting variants DIN tophat rail assembly Housing type Protection as per EN 60529 IP20 Environmental conditions Operating climatic environment Temperature Humidity Transportation: Climatic environment Temperature Humidity Class 3K5 as per IEC 721 0 … 50 °C < 85 % rH Class as per IEC 721 -25 … 65 °C < 95 % rH Standard
PAGE 6
Modem interface Pin 1 2 3 4 5 6 7 8 9 Voltage supply: X1 Signal name DCD RXD TXD DTR GND DSR RTS CTS RI Pin 1 2 Signal name L N Connection terminals Ethernet Modem / RS232 ON COM RUN / ERROR READY Relay X6 Termination 1 2 3 On Off 24VAC X1 1 2 COM1 / RS232 X4 1 2 3 4 5 X3 COM2 / RS232 1 2 3 4 5 6 1 2 3 4 5 6 7 8030Z01 UR UG UP UN S 7 Status LED Voltage supply X1 Not used COM2 interface Ethernet (RJ45) LED for network status Modem 6/8 Building Technologies Building Automation MeterPr
PAGE 7
Dimensions 153 EN 50022 - 35 x 7.5 Note 8030M01 158 57 70 mm free space must be available for connection plugs. 7/8 Building Technologies Building Automation MeterProxy for VISONIK CM2N8030en 02.02.
PAGE 8
/8 © 2005 Siemens Switzerland Ltd. Building Technologies Building Automation MeterProxy for VISONIK Subject to change CM2N8030en 02.02.
